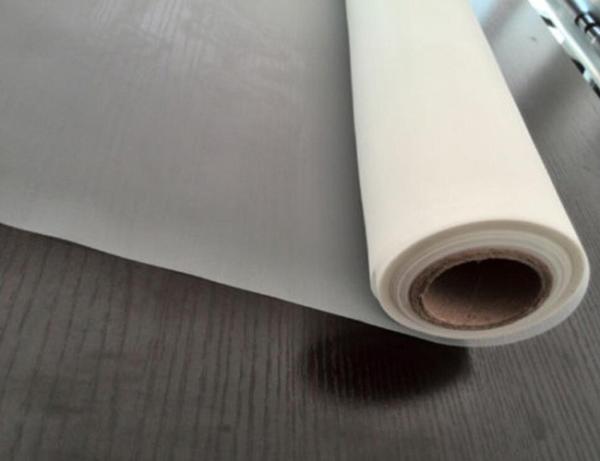

34 Thread 120T Polyester Silk Screen Mesh Fabric Width From 10cm - 370cm
34 Thread 120T Polyester Silk Screen Mesh Fabric Width From 10cm - 370cm
34 Thread 120T Polyester Silk Screen Mesh Fabric Width From 10cm - 370cm
34 Thread 120T Polyester Silk Screen Mesh Fabric Width From 10cm - 370cm
Specifications
Brand Name :
BOER
Model Number :
BOER120-34-Y
Place of Origin :
China
MOQ :
100M
Price :
USD0.5-3.0/Meter
Payment Terms :
L/C, T/T
Supply Ability :
10000M/week
Delivery Time :
5-7 days
Packaging Details :
plastic bag, carton, pp film,pallet or customized
Material :
100% Polyester
Mesh :
120
Thread :
34micron
Color :
Yellow
Width :
0.1m-3.7m
Length :
50-100m/roll or customized
Description

34 Thread 120T Polyester Silk Screen Mesh Fabric Width From 10cm - 370cm

Descriptions

Our polyester screen products are of high quality and precision with a wide range from 25mesh to 420mesh., annual output is up to 1,500,000 m². Our products are extensively used for screen printing, plate making in electronic, textile, ceramics industry etc. also used for liquid filtering in aviation, oil and chemical high technology fields.And Nylon 6 and Nylon 66 are our products, which widely use filtration in food, medicine, petroleum, automobile field.The precision range from 25 mesh to 420 mesh. Annual output is up to 1,000,000 m².

Our company imported the advanced polyester screen production line in the world, including P7100—S330 projectile looms from Switzerland, intelligent electronic warping machine, and our company owns the internal advance test equipment and a group of technician and workers specialized trained by the Switzerland experts.Our quality management system has been successfully approved by the ISOQAR to the standard ISO9001:2000.

Characteristics

  1. Material: 100%Polyester
  2. Mesh count: 25mesh-420mesh
  3. Width: 0.1m-3.7meter/roll
  4. Length:50meter/roll or customized
  5. high tensity,low elongation,excellent dimensional stabilit

Specifications

Specification Mesh Count Thread Dia Aperture Opening Thickness Theoretica Ink Volume Tensile Strength
T mesh/inch micron micron % micron C㎡/㎡ n/cm
10-250 25 250 740 53 465 246 60
16-200 40 200 435 47 420 189 48
20-140 50 140 340 46 280 129 52
24-100 60 100 316 58 190 109 48
24-120 60 120 300 51 210 105 42
32-100 80 100 200 43 160 69 42
36-100 90 100 178 41 175 72 42
39-55 100 55 201 62 100 62 30
39-80 100 80 172 46 142 65 42
43-80 110 80 150 41 130 55 35
48-70 120 70 135 41 115 46 32
53-55 135 55 134 50 105 53 34
54-64 137 64 115 39 102 40 30
59-55 150 55 100 40 93 39 32
64-55 160 55 101 42 105 44 30
64-64 160 64 90 32 106 34 35
72-48 180 48 94 46 80 37 32
72-55 180 55 75 29 92 27 32
77-55 195 55 70 25 88 24 29
80-48 200 48 78 30 84 24 29
80-55 200 55 70 25 88 24 29
90-48 230 48 55 25 78 20 33
100-40 250 40 58 32 65 21 29
110-40 280 40 48 27 65 17 30
120-34 300 34 45 30 55 16 30
120-40 300 40 40 20 55 16 29
140-31 350 31 35 26 48 13 27
140-34 350 34 30 20 55 10 30

Applications

  1. Screen printing
  2. Plate making in electronic
  3. Textile, ceramics industry etc
  4. Liquid and solid filtration in food and beverage
  5. Pharmaceutical and other industries

Advantages

  • Wide range of products, regularly products from 25mesh to 350mesh and width 10CM-370CM
  • Strict quality control, Our polyester mesh quality control strictly follow the ISO9001:2000 quality management system
  • Fast delivery,most products delivery time 7-15days.
  • Professional sales team

  • FDA Certificated

​
