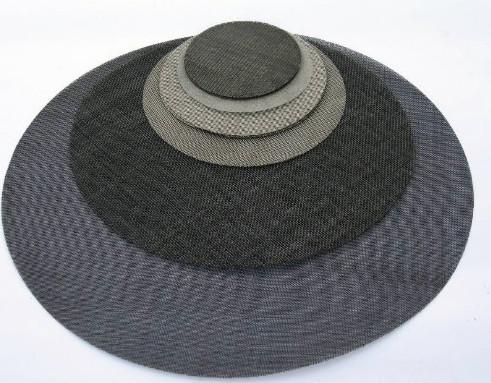

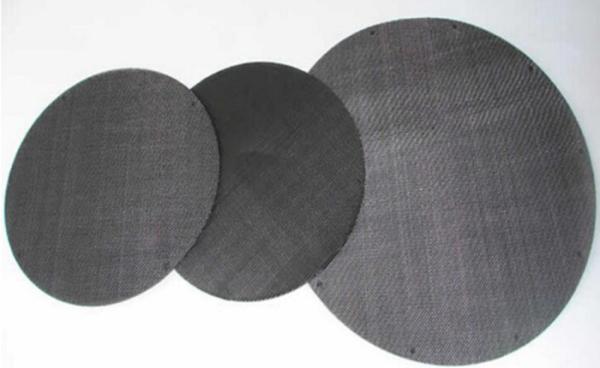

Industry Filtration Wire Mesh Filter Disc , Metal Mesh Screen 0.50x0.32mm
Industry Filtration Wire Mesh Filter Disc , Metal Mesh Screen 0.50x0.32mm
Industry Filtration Wire Mesh Filter Disc , Metal Mesh Screen 0.50x0.32mm
Industry Filtration Wire Mesh Filter Disc , Metal Mesh Screen 0.50x0.32mm
Specifications
Brand Name :
KLD
Model Number :
KLD14x88
Certification :
ISO9001
Place of Origin :
Hebei, China
MOQ :
1roll
Price :
To be negotiated
Payment Terms :
L/C, T/T
Supply Ability :
10000sqm/week
Delivery Time :
7days-30days
Packaging Details :
Plastic bag, wooden case
Material :
Plain steel
Hole Shape :
Square, rectangular
Weave Technique :
Plain weave,twill dutch weave,twill dutch weave
Technique :
Woven
width :
0.6,0.914,1.22,1.3m
Surface Treatment :
Galvanized or Epoxy Coated
length :
25m,30m 30.5m
Description

14X88mesh 0.50X0.32mm Plain Steel Wire Mesh plain dutch weave for industry filtration

Material: Plain steel
Wire Diameter: 0.16-0.71mm
Weaving method: Plain weave, Plain dutch weave,Twill weave, Dutch twilled weave,,,
Roll width: 0.50-1.3m
Length: 30.5m or as requested
Sample: Available
Certificate: ISO9001-2008


Black iron wire cloth,also know as black iron wire cloth.low carbon steel wire mesh,low carbon steel wire cloth,mild steel wire mesh ,mild steel wire cloth.

Weaving method

plain weave black wire cloth,

twill weave black wire cloth,

herring bone weaving black wire cloth.

dutch weave black wire cloth.

The charateristic of the black wire mesh :

1. uniform aperture,

2. flat surface,

3. long service life,

4. versalility with many use and so on.

Application:

1. plastic industry,rubber industry,

2. industrial filtration,

3. petrochemical filtration,

4. grain industry filtration.

It is used to screen particle powder and filter liquid gas,also used in various molds.

MILD WIRE CLOTH: PLAIN WEAVE
MESH(INCH) WIRE DIA.(mm) Aperture(mm)
8 0.71 2.465
10 0.63 1.91
12 0.6 1.516
14 0.5 1.314
16 0.45 1.137
18 0.4 1.011
20 0.4 0.87
30 0.3 0.54
40 0.25 0.39
50 0.2 0.308
60 0.16 0.263
80X70 0.135 0.19/0.23
Available width: 0.50m-1.3m

MILD STEEL WIRE CLOTH: PLAIN DUTCH WEAVE
MESH(INCH) WIRE DIA.(mm)
12X64 0.58X0.40
14X88 0.50X0.33
24X110 0.35X0.25
30X150 0.23X0.18
40X200 0.18X0.13
Available width: 0.50m-1.3m

COPPER COATED WIRE CLOTH: DUTCH WEAVE
MESH(INCH) WIRE DIA.(mm)
22X110 0.34X0.25
14X88 0.42X0.30
110X16 0.23X0.36
Available width: 0.23m-0.308m


Packing:

Each package wrapped by plastic paper, then put into the standard export box or wooden case

Our services for MILD steel wire cloth

A. Trial orders are available for testing quality

B. Free Samples can be supplied for testing within 7days

C. Technical suggestion can be provided

D. Strong sea worthy package to protect the goods well from damage

Application of MILD Steel Wire cloth:

used in absorption, evaportion and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks.

If you have any inquiry for the plain steel wire mesh, please feel free to ask.
