Acid Proof Silk Mesh For Screen Printing , Polyester Filter Mesh 32-100 Width 1.65m
Acid Proof Silk Mesh For Screen Printing , Polyester Filter Mesh 32-100 Width 1.65m
Acid Proof Silk Mesh For Screen Printing , Polyester Filter Mesh 32-100 Width 1.65m
Acid Proof Silk Mesh For Screen Printing , Polyester Filter Mesh 32-100 Width 1.65m
Specifications
Brand Name :
BOER
Model Number :
32-100
Certification :
ISO9001, FDA certification
Place of Origin :
Hebei, China
MOQ :
100m
Price :
To be negotiated
Payment Terms :
L/C, T/T
Supply Ability :
1,000,000 m² per year
Delivery Time :
7days for available stock
Packaging Details :
paper tube,carton,pallet
Product Name :
Polyester Bolting Cloth
Color available :
White & yellow
Mesh Count/cm :
10T-165T
Width :
1.65m, or customized
Packing :
Plastic bag, Carton, wooden pallet
Description

32-100 width 1.65m polyester bolting cloth good abrasion resistance

Polyester mesh has the charateristics of high strength,little deformation,resistant to corrosion,good abrasion resistance,long life.Applied in refine sugar,pharmacy,food and other industry and filed.

Charateristic:acid-proof,alkali resistance,abrasion resistance,high temperature resistance,long life,even surface,high tensile strength,good air permeability,save energy for users ,easy to install and use.No markson the connetion.

Details package information:

Put into Plastic bag with sticker- Put into cardboard box- Wrap the box with plastic film and fasten belt-Wrap the box with waterproof plastic and Sew it up-Put into wooden pallet

Available Specification of Polyester Bolting Cloth

Specification Mesh Count Thread Dia. Aperture Opening Thickness Theoretical Ink Volume Tensile Strength
T mesh/inch micron micron % micron C㎡/㎡ n/cm
10-250 25 250 740 53 465 246 60
16-200 40 200 435 47 420 189 48
20-140 50 140 340 46 280 129 52
24-100 60 100 316 58 190 109 48
24-120 60 120 300 51 210 105 42
32-100 80 100 200 43 160 69 42
36-100 90 100 178 41 175 72 42
39-55 100 55 201 62 100 62 30
39-80 100 80 172 46 142 65 42
43-80 110 80 150 41 130 55 35
48-70 120 70 135 41 115 46 32
53-55 135 55 134 50 105 53 34
54-64 137 64 115 39 102 40 30
59-55 150 55 100 40 93 39 32
64-55 160 55 101 42 105 44 30
64-64 160 64 90 32 106 34 35
72-48 180 48 94 46 80 37 32
72-55 180 55 75 29 92 27 32
77-55 195 55 70 25 88 24 29
80-48 200 48 78 30 84 24 29
80-55 200 55 70 25 88 24 29
90-48 230 48 55 25 78 20 33
100-40 250 40 58 32 65 21 29
110-40 280 40 48 27 65 17 30
120-34 300 34 45 30 55 16 30
120-40 300 40 40 20 55 16 29
140-31 350 31 35 26 48 13 27
140-34 350 34 30 20 55 10 30
150-31 380 31 32 23 47 10 28
150-34 380 34 30 20 69 10 30
165-31 420 31 25 17 49 8 28

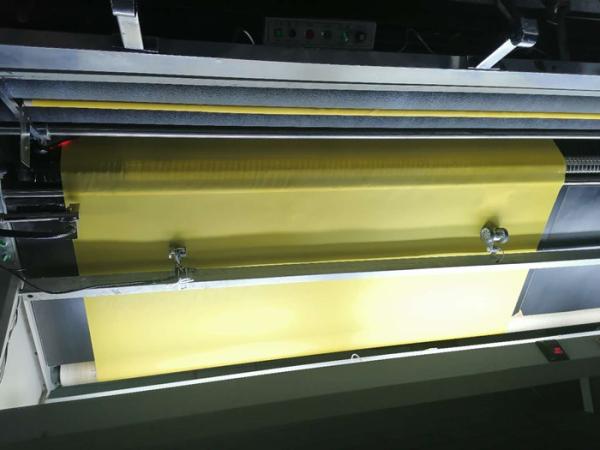

Our company imported the advanced polyester screen production line in the world, including P7100—B360 projectile looms from Switzerland.




Welcome to contact us for any inquiry of Polyester Bolting Cloth.
