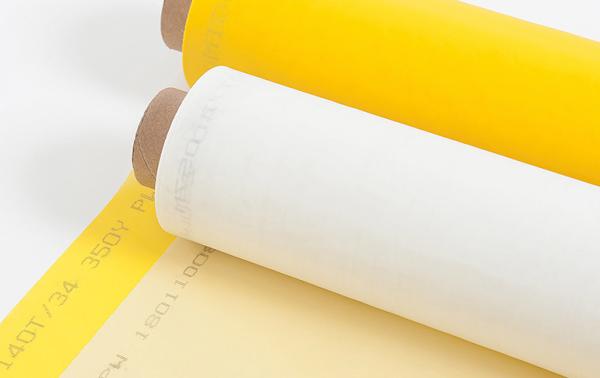

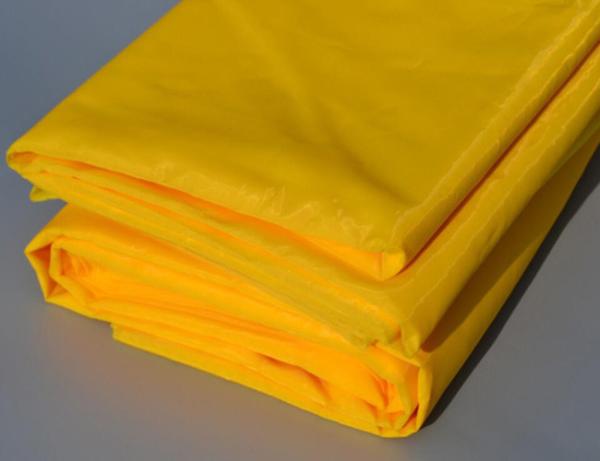

100% Polyester Monofilament Silk Mesh For Screen Printing 50 - 100m / Roll Length
100% Polyester Monofilament Silk Mesh For Screen Printing 50 - 100m / Roll Length
100% Polyester Monofilament Silk Mesh For Screen Printing 50 - 100m / Roll Length
100% Polyester Monofilament Silk Mesh For Screen Printing 50 - 100m / Roll Length
100% Polyester Monofilament Silk Mesh For Screen Printing 50 - 100m / Roll Length
100% Polyester Monofilament Silk Mesh For Screen Printing 50 - 100m / Roll Length
Specifications
Brand Name :
BOER
Model Number :
BOER
Certification :
FDA
Place of Origin :
China
MOQ :
100M
Price :
USD0.5-3.00
Payment Terms :
L/C, T/T
Supply Ability :
10000M/week
Delivery Time :
5-7 days
Packaging Details :
plastic bag, carton, pp film,pallet or customized
Material :
100% Polyester
Mesh :
64T
Thread :
64
Color :
yellow
Width :
0.1m-3.7m
Length :
50-100m/roll or customized
Description

100% polyester monofilament yarn silk screen mesh 64T-64 yellow

Descriptions

Our polyester screen products are of high quality and preciion with a wide range from 25mesh to 420mesh., annual output is up to 1,500,000 m².

Material yarn from Jintong, Switzerland and Japan, we inspect those yarn arrived (tolerance, tensile strength, physics test etc.).
During production, first we put the warp wires on the beam, drawing the warp wires into heddle and reed. Then our experienced weaver will start weaving mesh according to orders.

Initial survey is taken during and after weaving. Then the heat setting treatment and physical properties inspection will be done before we get tentative finished rolls (normally 60-500 meters rolls).

In the end, after the final inspection, we will cut the mesh into small rolls (30m-100m) according to customer orders.

Characteristics

1. Mesh count: 6T(15mesh)-165T(420mesh)

2. Thread diameter:0.031mm-0.4mm 2. Width: 0.6m -3.65m

3. Color: White, Yellow, Black

4. Roll length: 30m, 50m, 30yards, 50yards, any length available at request

Product List

Specification Mesh Count Thread Dia Aperture Opening Thickness Theoretica Ink Volume Tensile Strength
T mesh/inch micron micron % micron C㎡/㎡ n/cm
10-250 25 250 740 53 465 246 60
16-200 40 200 435 47 420 189 48
20-140 50 140 340 46 280 129 52
24-100 60 100 316 58 190 109 48
24-120 60 120 300 51 210 105 42
32-100 80 100 200 43 160 69 42
36-100 90 100 178 41 175 72 42
39-55 100 55 201 62 100 62 30
39-80 100 80 172 46 142 65 42
43-80 110 80 150 41 130 55 35
48-70 120 70 135 41 115 46 32
53-55 135 55 134 50 105 53 34
54-64 137 64 115 39 102 40 30
59-55 150 55 100 40 93 39 32
64-55 160 55 101 42 105 44 30
64-64 160 64 90 32 106 34 35
72-48 180 48 94 46 80 37 32
72-55 180 55 75 29 92 27 32
77-55 195 55 70 25 88 24 29
80-48 200 48 78 30 84 24 29
80-55 200 55 70 25 88 24 29
90-48 230 48 55 25 78 20 33
100-40 250 40 58 32 65 21 29
110-40 280 40 48 27 65 17 30
120-34 300 34 45 30 55 16 30
120-40 300 40 40 20 55 16 29
140-31 350 31 35 26 48 13 27
140-34 350 34 30 20 55 10 30

Usage

The screenprinting with excellent color brightness and opacity. The creative vreation is very fascinating. The screen printing T-shirt is not just a simple work clothes.It can be also used in elegant, gorgeous, like, touch and personality colthes.

Product tags

polyester silk screen printing mesh

,

mesh fabric silkscreen printing

,

screen printing mesh fabric
