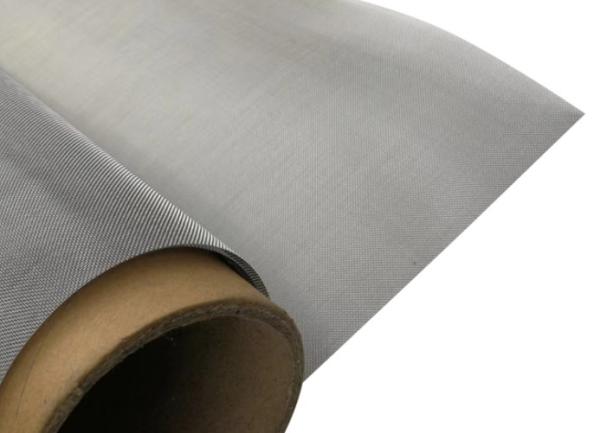

1x1 Heat Resistant Acid Resistant Ss Stainless Steel Wire Mesh Screen
1x1 Heat Resistant Acid Resistant Ss Stainless Steel Wire Mesh Screen
Specifications
Brand Name :
KLD
Model Number :
KLD-500UM
Certification :
ISO
Place of Origin :
CHINA
MOQ :
30SQM
Price :
USD20
Payment Terms :
L/C, T/T
Supply Ability :
100000SQM
Delivery Time :
5-30DAYS
Packaging Details :
Inner kraft, outside plastic cloth,put into wooden pallet or case
Material :
AISI304
Mesh :
1-635
Wire dia :
0.0008"-0.08"
Weave Type :
Plain Weave
Usage :
Filters, sieve, chemical industry, mine industry, paper-making , etc
Exported Market :
USA, EU, Japan and etc
Description

Stainless steel is heat resistant, acid resistant, corrosion resistant and wear resistant

1. Descriptions for Stainless steel wire mesh
Stainless steel is heat resistant, acid resistant, corrosion resistant and wear resistant. Due to these characteristics, stainless
steel mesh is widely used in mining, chemical, food, petroleum, pharmaceutical and other fields, mainly for the separation of
media such as gas and liquid filtration.

2. Specifications of Stainless steel wire mesh AISI304

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

3. Features

Long term performance
Minimal maintenance
Strength
Life cycle costing
Low environmental impact

4. Applicaitons

Filters, sieve, window screen, insect screen, chemical industry, mine industry, paper-making, etc.

5. Package and delivery

Package : inner kraft paper, outside plastic cloth, put into wooden pallet or case

Delivery: by air,by sea

6. About Company

Hebei Kanglida Metal Net Co., Ltd was founded in 1992, has 25 years of history. Our company covers an area of 56000 m2 plant area is 36000 m2. There are 3 weaving workshops, more than 210 various looms for wire mesh. And we also have one workshop for cutting, punching and welding ,vacuum annealing workshop, epoxy coating workshop, new production research and development and production inspection center.

Our company has 312 staff. The main products :metal wire mesh filtration, polyester and nylon filtration. 100% of our products are exported to Europe,Amercia, Africa, Asia, Mid east ...Most of our customers are world famous companys, we win the market because of our good quality and service.
