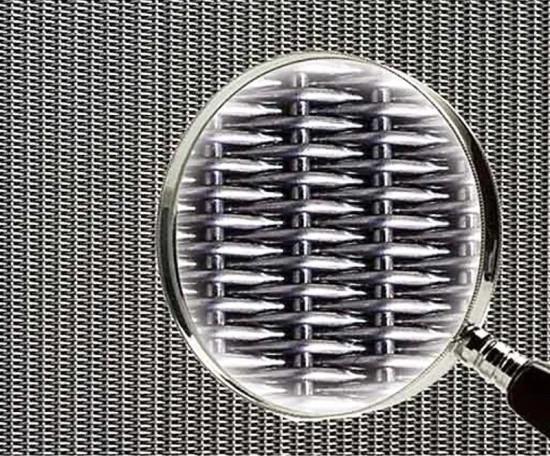

Plain / Twill Weave AISI 1.2mm Dia Ss 304 Wire Mesh
Plain / Twill Weave AISI 1.2mm Dia Ss 304 Wire Mesh
Specifications
Brand Name :
KLD
Model Number :
KLD-DW
Certification :
ISO
Place of Origin :
CHINA
MOQ :
30SQM
Price :
USD20
Payment Terms :
L/C, T/T
Supply Ability :
100000SQM
Delivery Time :
5-30DAYS
Packaging Details :
Inner kraft, outside plastic cloth,put into wooden pallet or case
Material :
AISI304
Mesh :
10-635
Wire dia :
0.022-1.2mm
Weave Type :
Plain & twill
Usage :
screen material or filtration
Exported Market :
USA, EU, Japan and etc
Description

Dutch Weave AISI304 Stainless Steel Wire Mesh

1. Descriptions of Dutch Weave AISI 304 Stainless Steel Wire Mesh

  • Material: SS 201,202,304,304L, 316,316L, 321, 430,ect
  • MOQ: 1 roll
  • Diameter: 0.0008″-0.08″
  • Open Area: 25-84.6
  • Weight (LB) /100 Square Foot:2.53-41.1
  • Roll Width: Max 240″
  • Roll Length: Max 2000′
  • Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case
  • Delivery Time: 5 days for stock material

2. Specifications of Dutch Weave AISI 304 Stainless Steel Wire Mesh

Plain dutch weave
Gauge No. Mesh Wire Dia.(MM) Reference Aperture
(um)
40 10×64 0.55×0.42 260
50 12×75 0.45×0.35 220
80 24×110 0.35×0.25 160
100 25×140 0.28×0.20 100
120 30×150 0.25×0.18 80
140 35×180 0.20×0.16 70
160 40×200 0.18×0.13 60
180 45×220 0.16×0.12 56
200 50×250 0.15×0.11 50
240 60×300 0.14×0.09 45
260 65×320 0.13×0.08 36
280 70×400 0.125×0.07 34
300 80×700 0.11×0.039 32
Twill dutch weave
Gauge No. Mesh Wire Dia.(MM) Reference Aperture
(um)
80II 20×250 0.28×0.2 38
120II 30×300 0.25×0.18 36
200II 50×500 0.14×0.11 34
320I 80×700 0.10×0.17 32
320II 80×780 0.10×0.07 30
360 90×780 0.10×0.07 25
400I 100×780 0.10×0.07 22
400II 100×900 0.10×0.063 20
500 120×1100 0.07×0.05 17
630 150×1400 0.063×0.04 16
650 165×1400 0.07×0.04 14
685 180×1800 0.063×0.032 13
795I 200×1400 0.07×0.04 12
795II 200×1800 0.05×0.032 10
850 210×1900 0.045×0.03 10
1000 250×2000 0.045×0.028 8
1125 280×2200 0.036×0.026 7
1200 300×2200 0.036×0.026 6
1280 325×2300 0.035×0.025 5
1600 400×2800 0.03×0.018 3

3. Characteristic:

  • Good resistance to acid, alkali and corrosion;
  • High strength, tension, toughness and wear resistance, durable;
  • Normal temperature processing, namely easy plastic processing, makes the use possibility of stainless steel screen is diversified;
  • High finish, no surface treatment, easy to maintain

4. Package and delivery

Package : inner kraft paper, outside plastic cloth, put into wooden pallet or case

Delivery: by air,by sea

5. About Company

Hebei Kanglida Metal Net Co., Ltd was founded in 1992, has 25 years of history. Our company covers an area of 56000 m2 plant area is 36000 m2. There are 3 weaving workshops, more than 210 various looms for wire mesh. And we also have one workshop for cutting, punching and welding ,vacuum annealing workshop, epoxy coating workshop, new production research and development and production inspection center.

Our company has 312 staff. The main products :metal wire mesh filtration, polyester and nylon filtration. 100% of our products are exported to Europe,Amercia, Africa, Asia, Mid east ...Most of our customers are world famous companys, we win the market because of our good quality and service.
