Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Specifications
Brand Name :
Share Filters
Model Number :
Polyester filter mesh
Certification :
SGS
Place of Origin :
China
MOQ :
50m
Price :
USD0.25-USD4.50/meter
Payment Terms :
T/T, L/C, D/P, Western Union, PayPay
Supply Ability :
1000meters/day
Delivery Time :
5-30 days Depends on Qty
Packaging Details :
Caron, Polybag
Product name :
Polyester filter mesh
Keywords :
Polyester filter mesh for wine filtration process
Material :
Polyester Monofilament Yarns
Micron rating :
25μm-200μm
Thread diam :
34μm-120μm
Size :
Custom
Supply type :
In rolls, sheet, cut shapes, weld bags, sewn bags
Description

Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration

Selecting the high-quality monofilament polyester thread with high tenacity, high tension and low elongation characteristics, Share weaves polyester filter mesh with Sulzer P7100 looms. More than 20 years of production experience enables us to weave polyester filter mesh with precise and uniform mesh holes. thanks to the after-production treatment of heat-setting, polyester filter mesh has stable yarn connection without yarn migration during use

Share Filters polyester filter mesh can be used in the wine industry to remove sediment, grape skins, and other solid particles during the filtration process. It aids in clarifying the wine and achieving the desired visual appearance.

Share Filters Polyester Filter Mesh Options for Wine Processing

Yarn Monofilament (Single Filament)
Mesh Opening From 25 micron to 200 micron
Thread Diameter From 34 micron to 200 micron
Open Area From 13.9% to 58.7%
Weave Type Plain Weave, Twill Weave
After Treatment Washing, Heat-setting, Calendaring, Water-repellent, etc
Size Can slit or cut in custom dimension
Colour White, or customize

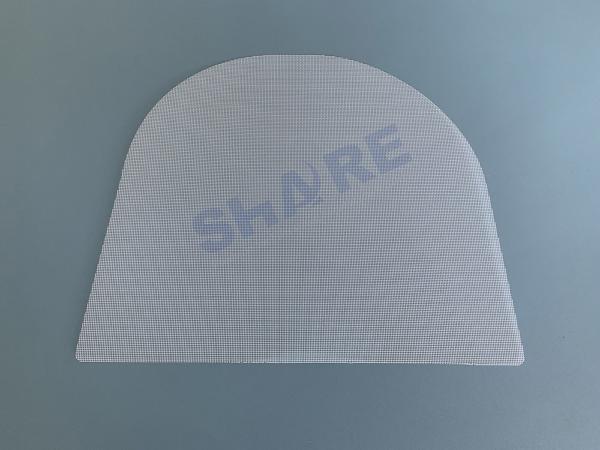

Polyester Filter Mesh

Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration

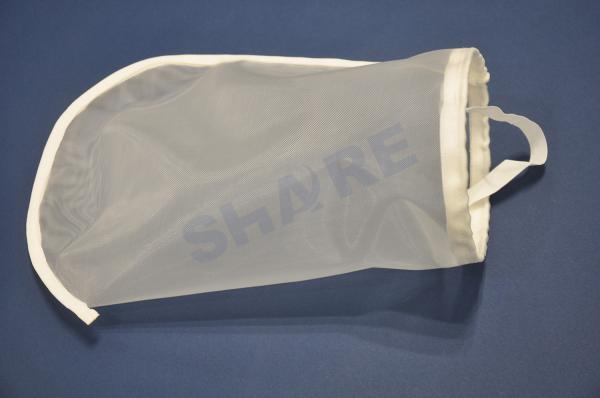

Polyester Mesh Filter Bag

Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration

The Advantage of Polyester Filter Mesh:
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
*High strength and durability
*Excellent dimensional stability
*Hydrophobic surface
*Resistance to acids, corrosion, heat/fire, mold/mildew staining, ultraviolet light, and wear
*Easy sewing and cleaning requirements


Properties of Polymers

Material PA6 PA66 PET PP
Specific gravity (g/mm²) 1.14 1.14 1.38 0.91
Tensile strength(daN/mm²) 41-67 41-67 45-75 35-62
Relative strength at wet conditions(%) 89-90 85-90 100 100
Elongation at break (%) 20-35 20-35 15-30 20-50
Moisture absorption at 20°C / 65% r.h. (%) 3.5-4 3.5-4 0.4 0
Melting point (°C) 210-220 260-268 250-260 165-175
Softening point (°C) - - 220-240 140-155
Working temperature dry (°C) - - -75 to +150 -30 to +90
Stability to light poor poor poor poor
Atmospheric influence - - none none
Abrasion resistance good good limited limited
Acid resistance limited-poor limited-poor good good
Alkaline resistance good good limited good
Stability to solvents limited limited good good
Hydrolysis resistance good good limited good

How to select the right filter mesh? You can follow these points.

  • Mesh size or the size of the particle you need to filter
  • Mesh material (consider the working condition)
  • Mesh thread diameter, Mesh thickness
  • Opening area

Polyester Filter Mesh Datasheet for Water Filtration

Mesh of Count Type of Weave Thread Diameter (microns) Mesh Opening (microns) Overall Fabric Thickness (microns) % Open are

Theoretical

Ink Deposit (cm³/ m²)

 Mesh Weight (g/sm²)
30/76-120W PW 120 211 212 40.2 82.4 101
32/83-70W PW 70 240 117 58.7 68.7 37
32/83-100W PW 100 209 166 44.5 72.1 75
36/92-90W PW 90 183 147 43.3 64.9 68
36/92-100W PW 100 174 162 39.1 62.6 84
40/103-80W PW 80 166 133 44.1 58.6 60
43/110-80W PW 80 149 130 40.8 53.0 64
45/115-80W PW 80 138 130 38.7 50.3 67
48/123-80W PW 80 122 130 34.5 44.8 72
48/123-55W PW 55 151 90 52.8 47.5 34
51/131-70W PW 70 121 114 38.1 43.5 58
54/137-64W PW 64 115 103 38.7 39.8 51
61/156-64W PW 64 90 101 30.1 30.4 58
68/175-55W PW 55 85 87 33.5 28.4 48
68/175-64W PW 64 78 98 28.2 27.6 65
71/180-55W PW 55 79 90 31.5 28.4 51
77/195-48W PW 48 77 80 35.0 28.0 42
77/195-55W PW 55 67 87 26.5 23.3 55
82/206-48W PW 48 68 79 30.8 24.3 44
90/230-40W PW 40 68 65 37.6 24.4 33
90/230-48W PW 48 55 78 24.6 19.2 49
100/255-40W PW 40 57 64 32.5 21.1 37
110/280-34W PW 34 54 55 35.2 19.3 31
110/280-40W PW 40 47 65 26.6 17.3 40
120/305-34W PW 34 45 55 29.6 16.3 34
120/305-40W PW 40 37 64 20.1 13.0 44
130/330-34W PW 34 40 55 26.9 14.3 37
140/355-34W PW 34 31 55 19.4 10.6 39
150/380-34W PW 34 23 55 12.1 6.6 42
165/420-34W PW 34 23 62 13.9 8.6 46

Factory Capabilities

Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh,

polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to filter mesh ribbons,

filter mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' Filtration demands.

Woven Filter Mesh

The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or

other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration

Filter Mesh Slitted in Narrow Ribbons

Our ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters,
electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic
slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up
at the edge.
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Laser Cutting Filter Mesh Shapes.
Share Filters cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Punching. Professional cutting
using custom made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that
are specific to the customer’s design needs
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Ultrasonic Welding
Sonic welding are accurate, clean. The tubes are equipped with one or two functional seams, which provide
the necessary seam strength.
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Custom Filter Bags
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Rosin press bag
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Biopsy bag
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Cylinder Mesh Filter
Standard Filter Bags
Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well
as custom designed products where requested. The constituent materials have been chosen for their purity,
with consistent high quality and repeatable performance.
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Mesh Insert Plastic Injection Molded Filters
Our injection moulded filters products consist of a filter mesh held in a polymer plastic frame,
allowing for a more robust part/product giving more reliability and longevity in its use.
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration

About Us

Share Filters has over 20 years of experience developing and manufacturing filter mesh and custom product solutions

for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including

slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries

– Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical

as well as more general engineering, giving us a wealth of experience in many areas.

Manufacture Process of Filter Mesh

Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration

Application of Share Filters Products

Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration Reusable Polyester Filter Mesh For Wine Spirit Beer Process Filtration
Automotive Healthcare Appliance Food & Beverage Environment
