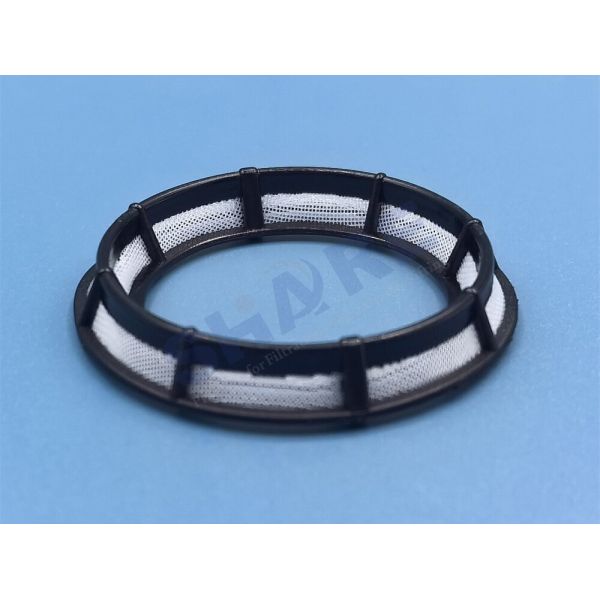

Custom-Tailor Petrol Fuel Filter Element Ring PET Mesh Insert Automotive

The fuel filters protect the internal combustion engine against the ingress of dirt, particulate matter and water. Filtration is usually multi-stage. The first filtration occurs before the fuel pump inlet, followed by the main fuel filter and the filter screen before the high-pressure fuel pump or injector.

The fuel filters are essential components that are typically included in the fuel system of automotive. Its primary function is to remove impurities and debris from the fuel before it reaches the engine. This helps ensure that clean fuel is delivered to the engine, which is crucial for efficient combustion and optimal performance.

When it comes to mesh insesrt injection molded filter needs, look no further than Taizhou Share Filter Co. Ltd. Share filter mesh also can be tailored to your requirements.

Product Picture

Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. Take filtration to new performance levels with mesh insert production from component plastics. We’re a trusted manufacture of precision injection-molded plastic parts with mesh filters for critical practices.

Other OEM/ODM Moulded Fuel Filters

Share Filters Custom-Tailor Plastic Molded Filters Materials Options

	Filter media	Nylon mesh, polyester mesh, PP mesh, metallic mesh
	Micron rating	16μm - 1500μm
	Mesh parts fabrication	Slitting, cutting or punching, welding
	Support cage material	PA6, PA66, PET, PP, ABS, and other high-performance thermoplastics
	Processing	Insert injection molding, over molding
	Supply type	OEM

Share Filter Value Added Services

Nylon Filter Mesh Data Sheet

This just a part of specifications which common used.

Mesh count (n/cm), (n/in) The mesh count stands for the number of openings per inch. Mesh opening (w), (μm) The mesh opening w is the distance between two adjacent warp or weft thread. Thread diameter (d),( μm) The thread diameter is measured on the thread before weaving. Open area (%) The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area

Property of Thermoplastic

PP (polypropylene) Excellent chemical resistance, high purity, low water absorption and good electrical insulating properties

ABS Toughness and impact resistance, even at low temperatures, good stiffness and machinability

POM (Polyoxymethylene) Good sliding properties, excellent wear resistance and low moisture absorption. The material's dimensional stability, particularly good fatigue strength and excellent machinability

PA6 (polyamide 6) Tough, abrasion-resistant, good vibration damping, resistant to solvents, fuels and lubricant

PA66 (polyamide6.6) Rigid, stiff, abrasion-resistant, dimensionally stable at heat exposure

PET (polyethyleneterehthalate) High rigidity, high hardness, high chemical resistance, good dimensional stability

PEEK (polyetheretherketone) High mechanical strength, stiffness, toughness, temperature, chemical and radiation resistance

How To Select the Right Filter Mesh? You Can Follow These Points

• Mesh size or the size of the particle you need to filter
• Mesh material (consider the working condition)
• Mesh thread diameter, Mesh thickness
• Opening area

About Share Filters

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the woven filter mesh manufacturing and mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or configuration – from simple, traditional components like mesh screens to highly complex devices like customized plastic filters.

Share Filters Capacities

Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the rolls or cut shapes.	Ultrasonic and heat slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge.	Our cutting method include Laser cutting, Cold cutting, Hot cutting, Stamping. Professional cutting using custom made tools that will not damage the materials.	Sonic welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.	Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.	Custom plastic molded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.

Products Packing Example

Shipping Ways

Share Filter offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

• Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
• Large quantities to choose shipping by sea is cost economic. Sometimes by air if urgent in need.
• SF EXPRESS usually to Hongkong and Southeast Asia countries.
• Customers choose express commonly to send them samples.

Contact Us

Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.

Please connect with us now so we can learn more about your application and design specifications!
