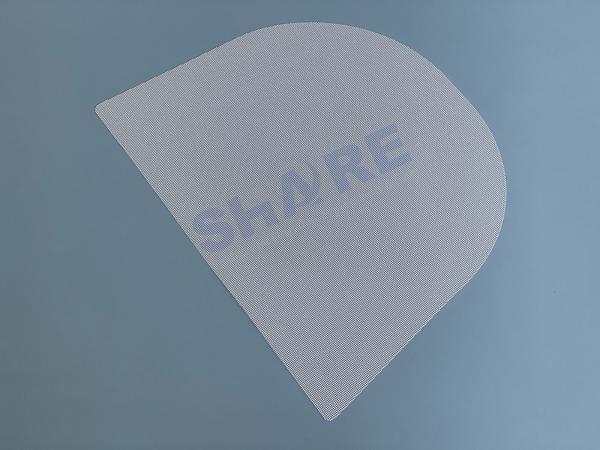

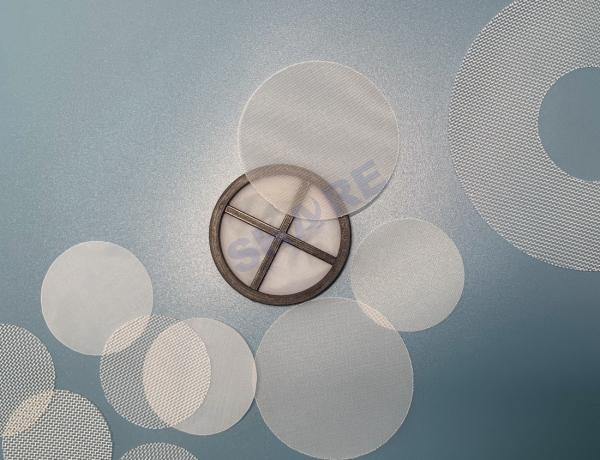

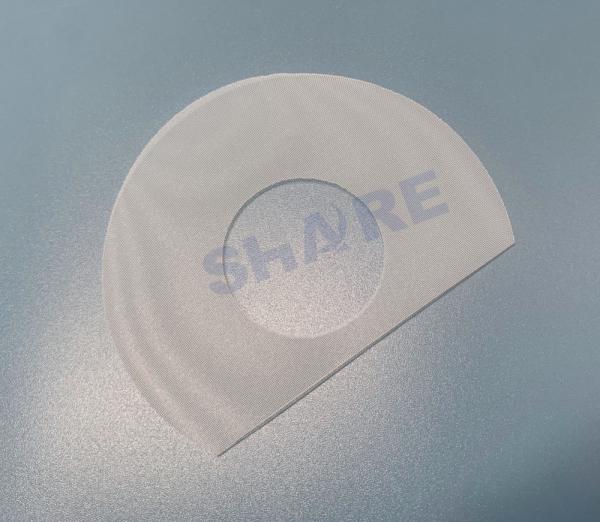

150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
Specifications
Brand Name :
Share Filters
Model Number :
110 Micron Nylon Mesh In Custom Designed Shapes Discs
Certification :
SGS
Place of Origin :
China
MOQ :
200pcs
Price :
USD0.04-USD1.10/pc
Payment Terms :
T/T, L/C, D/P, Western Union, PayPay
Supply Ability :
50000pcs/day
Delivery Time :
3-7 days
Packaging Details :
Caron, Polybag
Product name :
110 micron nylon filter mesh cut shapes discs
Keywords :
Nylon mesh shapes
Material options :
Nylon filter mesh, polyester filter mesh, PP filter mesh
Micron rating :
3μm-3233μm
Thread diameter :
30μm-1000μm
Open area :
16% - 60%
Description

150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs

Share Filters supplies a variety of different specifications of filter meshes. These materials range include nylon mesh, polyester mesh, polypropylene, filter felt and stainless mesh. These fabrics can be made to order and supplied in the form of rolls and ribbons, pre-cut shapes, molded parts, filter bags, tape and dispenser products.

The Benefits of Nylon Filter Mesh Cutted Shapes From Share Filters

  • Specific to the customer’s design needs
  • Non-fraying edges(depends on the technology)
  • High precision opening, uniform thread diameter
  • Available in singe layer or double layers, disc, polygon, irregular and other special shapes
  • Convenient for insert molding
  • Non-toxic, odourless, tasteless, high strength, high elongation, good elasticity.
  • With high toughness, good elasticity, resistance to weak acid, oil resistance, alkali resistance, wear resistance, heat
  • Excellent alkaline resistance.
  • Compliance with food grade.

150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs

150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs

Share Filters' Filter Mesh Options for Custom Pre-cut Shapes

Material Nylon mesh, polyester mesh, PP mesh, stainless steel mesh
Mesh Opening From 3 micron to 3233 micron
Thread Diameter From 30 micron to 1000 micron
Open Area From 3% to 60%
Weave Type Plain Weave
After Treatment Washing, Heat-setting, Calendaring, Water-repellent, etc
Dimension Can cut in custom specific dimension and shape
Colour White, or customize

Filter Meshes Cut To Size
When you need meshes to be handled with care, you need a professional company that will provide the high standard and efficiency to get the pre-cut products within your time frame as well as providing the level of quality you would expect. Share Filters can provide a great range of cutting methods and a wealth of experience in the industry, which makes them the only choice when you want these things to be fulfilled.

We can cut any size filter mesh to any other size, whilst precisely cutting the filter mesh to meet any requirements or design you may have. You can also consult us regarding the design and we can help you decided the most efficient way and the best methods of cutting to make sure you get the high quality filter mesh parts.

Nylon Filter Mesh Specifications
Fabric
number		 Mesh count Thread
diameter		 Mesh
opening		 Open
surface		 Fabric
thickness		 Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
JPP2 2.3 6 1000 3233 58.3 1900 412
JPP3 3.1 8 900 2300 51.3 1700 450
JPP4 4 10 550 1950 61 950 262
JPP5 5 12 500 1500 56 850 271
JPP6 6 16 400 1267 58 780 208
JPP7 7 18 350 1079 57 675 186
JPP8 8 20 350 900 52 685 212
JPP9 9 24 250 860 60 455 145
JPP10 10 25 300 700 49 576 195
JPP12 12 30 250 583 49 470 162
JPP12 12 30 300 533 41 585 234
JPP14 14 35 300 414 34 595 273
JPP16 16 40 200 425 46 370 139
JPP16 16 40 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
JPP20 20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 130 38 145 62
JPP56 56 140 60 120 44 85 44
JPP59 59 150 60 110 42 98 46
JPP64 64 160 60 100 37 105 50
JPP72 72 180 50 90 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 42 60 36 65 35
JPP120 120 305 30 55 42 52 20
JPP120 120 305 35 45 29 60 28
JPP120 120 305 38 42 25 67 35
JPP120 120 305 42 42 25 75 42
JPP130 130 330 30 47 37 55 22
JPP130 130 330 35 42 30 62 30
JPP130 130 330 38 40 26 74 36
JPP140 140 355 30 38 28 53 25
JPP140 140 355 35 37 26 65 33
JPP140 140 355 38 32 20 68 36
JPP145 145 368 38 30 19 64 40
JPP150 150 380 30 34 26 50 26
JPP150 150 380 38 31 21 68 40
JPP165 165 420 30 30 25 59 28
JPP165 165 420 38 25 15 75 42
JPP180 180 460 30 25 21 60 31
JPP200 200 508 30 20 16 65 34

This is just a part of specification that common used.

What We Do
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the woven filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or configuration – from simple, traditional components like mesh shapes and bags to highly complex devices like custom plastic filters.

Application of Share Filters Products

150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs 150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs 150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs 150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs 150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
Fuel filter Cell strainer Air purifier filter Coffee filter Drip irrigation filter
Automotive Healthcare Appliance Food & Beverage Agriculture

Share Filters Workshops

150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs

Factory Capabilities

Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to filter mesh ribbons, filter mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' Filtration demands.

Woven Filter Mesh

The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs

Filter Mesh Slitted in Narrow Ribbons

Share Filters heat slitting and ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge.
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
Laser Cutting Filter Mesh Shapes.
Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Slitting, Punching. Professional cutting using custom made tools that will not damage the fabrics. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
Ultrasonic Cutting and Welding
Ultrasonic cutting and welding are accurate, clean. The tubes are overlapped and equipped with one or two functional seams, which provide the necessary seam strength.
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
Custom Filter Bags
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
Rosin press bag
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
Biopsy bag
Sewn Bag
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
Standard Filter Bags
Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed products where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
Mesh Insert Plastic Injection Molded Filters
Our injection moulded filters products consist of a filter mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use.
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs

Contact Us

Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the best products for their specific projects.
