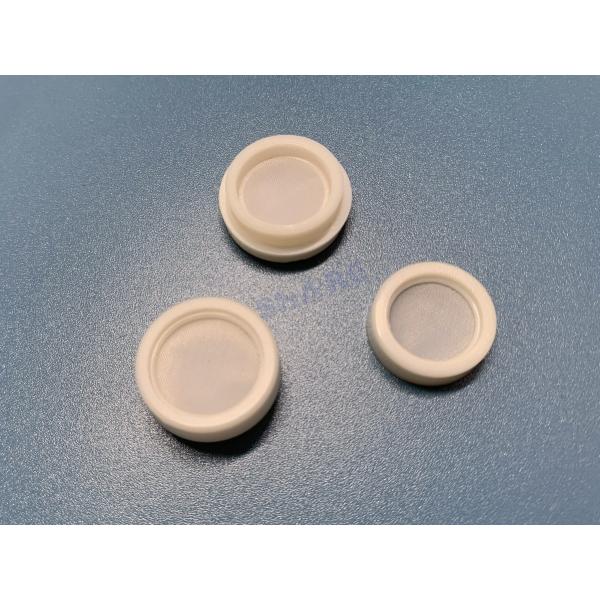

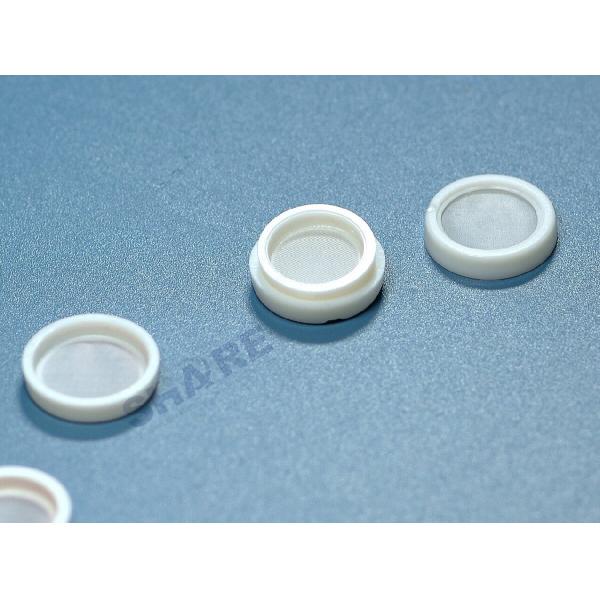

Infusion Disc Filter 180µm Nylon /PET Mesh White ABS Rim for IV Drip Chamber

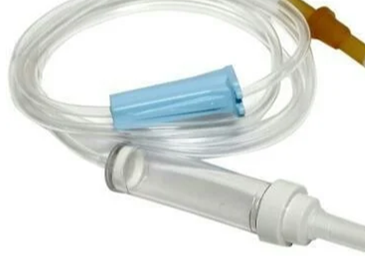

Comprising a filter mesh endowed with pore sizes ranging from 15μm to 180μm, the primary purpose of an infusion disc filter in an IV drip chamber is to prevent the passage of particulate matter or contaminants from the IV fluid into the patient's bloodstream. It ensures the delivery of a clean and particle-free IV solution, reducing the risk of complications or adverse reactions.

Share Filters' infusion disc filter consists of a nylon or polyester filter mesh disc held in the polymer frame by insert injection moulding. The filter mesh micron rating available in 15μm, 25μm, 50μm, 180μm and other microns. The high throughput rates and precise mesh openings of Share Filters' filter meshes contribute to the excellent reliability and performance of IV drip chambers sets.

Property of Share Filters' Infusion Disc Filter

Technical Data

Product Pictures

Share Filters not only manufactures the finished moulded filters, but also supplies the pre-cutted mesh discs.

The injection moulding processing can take in many forms, allowing for a more robust part giving more reliability and longevity in its usage. Thanks to advance equipments and more than 20 years of experience, Share Filters is fully capable to help develop and produce the injection moulded filter products that will best suit your needs, as well as offering any additional advice or service along the way, from tool making to final products.

Filter Mesh Opening

Infusion disc filters have specific mesh openings that determine the types and sizes of particles they can effectively remove. The mesh openings are measured in micrometers (μm), and the choice of filter depends on the desired level of filtration and the specific requirements of the infusion.

Nylon Filter Mesh Datasheet for Infusion Disc Filter

This just a part of specifications which commonly used.

Mesh count (n/cm), (n/in) The mesh count stands for the number of openings per inch. Mesh opening (μm) The mesh opening w is the distance between two adjacent warp or weft thread. Thread diameter (μm) The thread diameter is measured on the thread before weaving. Open area (%) The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area

Examples of Other Healthcare and Medical Filter Components

Examples of Application

Automotive	Laboratory	Healthcare	Appliance	Beverage	Agriculture
Fuel filter	Biopsy bag	Blood filter	Dryer filter	Coffee filter	Water strainer

Contact Us

Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.

Please connect with us now so we can learn more about your application and design specifications!

What Share Filters Do?

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world.

Filter mesh in rolls, shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes are our primary business.

As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure, from simple components like mesh pieces to complex devices like custom combination moulded filters.

We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic injection moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

Factory Capabilities

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene, Selecting the high-quality monofilament thread, Share Filters weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.

Filter Mesh Slitted in Narrow Ribbons Filter mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of mesh ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

Filter Mesh Pre Cut Pieces and Shapes Share Filters cutting methods include Laser cutting, Cold cutting, Heat cutting and Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.

Filter Mesh Tubes and Tubular Ribbons Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat, sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre-cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

Custom Filter Mesh Bag by Welding and Sewing Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter medium (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shapes. If the filter fabric is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 5- 15 working days.

Photos of Factory

Warping	Weaving	Inspection
Whashing	Heat setting	Ultrasonic Welding

Delivery and Transportation

Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

• Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
• Large quantities is better by sea which is cost economic. Sometimes by air if urgent in need.
• SF EXPRESS usually to Hongkong and Southeast Asia countries.
• Samples are always sent via express commonly.

FAQ

Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.

Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.

Which Port You Ship?

Ningbo port.

Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.

What's Your Payment Term ?

T/T, LC, PayPal, and others.

What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.

What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.

Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.
