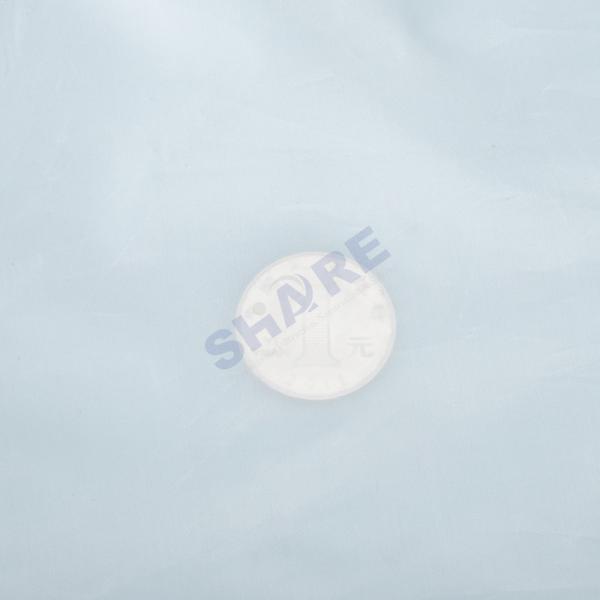

Nylon mesh filters are made of monofilament polyamide yarns, available in both PA6 and PA66. It's used for precise separation across various industrial applications like food processing, pharmaceuticals, chemical manufacturing, and fuel & water treatment.
Nylon mesh filters have exceptional chemical resistance(strong alkali resistant), thermal stability (up to 120°C) and mechanical strength(abrasion resistant, easy to weld). With customizable mesh sizes ranging from 3 microns to 2500 microns and various weave types (plain, twill, Dutch), SHARE FILTERS' nylon filter mesh ensures optimal performance tailored to specific filtration, separtation and sifting needs.
1. Standards Compliance: GB/T 19001-2016/ISO 9001:2015. (See certificates at ISO9001.pdf)
2. Certifications: FDA approved food grade options, RoHS, Reach, Silicon Free, PROPOSITION 65 etc. (See certificates at ROHS.pdf REACH.pdf PROPOSITION 65.pdf Silicon Test.PDF)
3. Testing Protocols: rigorous quality checks for pore uniformity, tensile strength, and chemical stability.
Customization & Global Supply
1. Tailored Solutions: custom widths, sizes, shapes and micron ratings. We produce polyester, nylon, and polypropylene filter mesh ranging from 3um to 2500um. Width from 1cm to 3.9m. We are able to fabracate filter mesh into various forms and solutions like rolls, discs, sheets, tube, bags and plastic filters.
2. MOQ & Pricing: competitive pricing starting at $0.01/piece or $0.5/meter, MOQs as low as 1m² or 1 piece.
3. Global Reach: exported to North America, Europe, Asia, and Africa, supported by 3 to 15 days lead time, 3 to 8 days courier transit time.
Key Features
Materials
Premium grade nylon monofilament for precision and consistency.
Durability
High tensile strength and resistance to wear, ensuring a long lifespan even in heavy-duty applications.
Chemical Resistance
Nylon mesh stands up to a variety of chemicals, suitable for both industrial and laboratory use.
Customizable
Available in multiple micron ratings (3µm to 2500µm) to match specific filtration requirements, from fine to coarse filtration.
Cost Effective
Offers exceptional quality without compromising affordability, an ideal choice for both bulk and specialized applications.
Specifications
Product name | High-Quality Nylon Filter Mesh for Precision Filtration |
Manufacturer | Taizhou Share Filters Co. Ltd. |
Brand | SHARE FILTERS |
Material | Nylon monofilament mesh(food grade) |
Shape and size | Roll, piece, shape, bag, molded filter. Size can be customized. |
Color | white or customized |
Weave type | Plain woven, twill woven, dutch woven |
Common width | 1cm to 390cm are available. Commonly roll width 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm. |
Roll length | 30-100 mester or customized |
Mesh count/cm | JPP3T-JPP236T |
Mesh count/inch | 8 mesh/inch-600 mesh/inch |
Thread diameter | 35-550 micron |
Mesh opening | 3-2500 um |
Thickness | 53-1100um |
Certificate | ISO19001 ROHS REACH etc. |
Samples | 3 meters free |
Physical characteristics | 1.Material : manufactured by 100% monofilament nylon yarn 2.Opening :the mesh with great precision exact and regular square holes 3.Dimensional :very good dimensional stability |
Chemical properties | 1.Temperature : working temperature under 100ºC 2.Chemicals: no unwanted chemicals, no any chemicals treatment in the production process 3.Safe Grade: food grade |
Advantages | High mechanical strength and flexibility Fatigue resistance Available in disc, tube, bag and special shapes Abrasive and corrosive resistance Heat-melting resistance Wide ranges of mesh counts for choice Available for water, air, oil, paint, powder filtration Compliance with FDA food grade |
Applications | Laboratory Filtration of Fuel and Gas
|
Technical Datasheet
Precision Nylon Filter Mesh Technical Data Sheet | |||||||
Fabric Number | Mesh Count | Thread Diameter | Mesh Opening | Open Area | Mesh Thickness | Weight | |
No. | n/cm | n/inch | μm | μm | % | μm | g/m2 |
PA 3233/58.3 | 2.3 | 6 | 1000 | 3233 | 58.3 | 1900 | 412 |
PA 2300/51.3 | 3.1 | 8 | 900 | 2300 | 51.3 | 1700 | 450 |
PA 1950/61 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 |
PA 1500/58 | 5 | 12 | 500 | 1500 | 58 | 850 | 271 |
PA 1267/56 | 6 | 16 | 400 | 1267 | 56 | 780 | 208 |
PA 1079/57 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
PA 900/52 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
PA 860/58 | 9 | 24 | 250 | 860 | 58 | 455 | 145 |
PA 700/49 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
PA 583/49 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
PA 533/41 | 12 | 30 | 300 | 533 | 41 | 585 | 234 |
PA 414/34 | 14 | 35 | 300 | 414 | 34 | 595 | 273 |
PA 425/46 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
PA 375/36 | 16 | 40 | 250 | 375 | 36 | 485 | 217 |
PA 350/49 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
PA 300/36 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
PA 267/41 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
PA 237/44 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
PA 213/41 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
PA 213/46 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
PA 178/41 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
PA 150/36 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
PA 152/42 | 43 | 110 | 80 | 152 | 42 | 135 | 60 |
PA 130/38 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
PA 120/44 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
PA 110/41 | 59 | 150 | 60 | 110 | 41 | 98 | 46 |
PA 100/38 | 64 | 160 | 60 | 100 | 38 | 105 | 50 |
PA 90/41 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
PA 75/36 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
PA 60/34 | 100 | 250 | 42 | 60 | 34 | 65 | 35 |
PA 42/24 | 120 | 305 | 42 | 42 | 24 | 75 | 42 |
PA 44/29 | 120 | 305 | 38 | 44 | 29 | 72 | 35 |
PA 42/25 | 120 | 305 | 38 | 42 | 25 | 67 | 35 |
PA 45/33 | 120 | 305 | 35 | 45 | 33 | 60 | 28 |
PA 55/40 | 120 | 305 | 30 | 55 | 40 | 52 | 20 |
PA 40/25 | 130 | 330 | 38 | 40 | 25 | 74 | 36 |
PA 42/29 | 130 | 330 | 35 | 42 | 29 | 62 | 30 |
PA 47/37 | 130 | 330 | 30 | 47 | 37 | 55 | 22 |
PA 32/21 | 140 | 355 | 38 | 32 | 21 | 68 | 36 |
PA 37/26 | 140 | 355 | 35 | 37 | 26 | 65 | 33 |
PA 38/33 | 140 | 355 | 30 | 38 | 33 | 53 | 25 |
PA 31/18 | 150 | 380 | 38 | 31 | 18 | 68 | 40 |
PA 35/29 | 150 | 380 | 30 | 35 | 29 | 57 | 26 |
PA 34/26 | 150 | 380 | 30 | 34 | 26 | 50 | 26 |
PA 30/25 | 165 | 420 | 30 | 30 | 25 | 59 | 28 |
PA 30/19 | 145 | 368 | 38 | 30 | 19 | 64 | 40 |
PA 25/21 | 180 | 460 | 30 | 25 | 21 | 60 | 31 |
PA 25/15 | 165 | 420 | 38 | 25 | 15 | 75 | 42 |
PA 20/16 | 200 | 508 | 30 | 20 | 16 | 65 | 34 |
PA 10/4.3 | 208 | 530 | 38 | 10 | 4.3 | 77 | 53 |
PA 8/3 | 220 | 560 | 38 | 8 | 3 | 78 | 56 |
PA 6/1.7 | 228 | 580 | 38 | 6 | 1.7 | 80 | 59 |
PA 3/1 | 236 | 600 | 38 | 3 | 1 | 85 | 61 |
PA 1/2 | 256 | 650 | 34*38 | 1 | 2 | 80 | 62 |
PA 2/1 | 275 | 700 | 34*38 | 2 | 1 | 80 | 66 |
The data are compiled to the best of our knowledge.
Subject to change without notice.
Complete product range is available on request.
Definitions:
Mesh Count: Number of openings per inch or centimeter
Weave Type: Plain Weave (PW) or Twill Weave (TW)
Thread Diameter: The diameter of each thread before weaving
Mesh Thickness: The average thickness of the woven mesh
Mesh Opening: The distance between adjacent threads
Open Area: The ratio (%) of the open area to the thread area within a woven mesh
Capability
By cold, heat, ultrasonic, laser, injection mold and many more technologies, SHARE can process filter mesh into various specific solutions including colored, coated, thermal treated, sectioned, shaped, pleated, sewed or molded products based on customers' requirements. Contact us now for more information about our filter products.
Production Process
Yarn
Monofilament
Weave
Plain Weave
Plain weave is made by crossing the warp and weft yarns with each other. Well-regulated and highly durable textile fabrics can be created as there are many points where the threads cross each other (structure points). It is also resistant to friction.
Since the warp and weft yarns appear on the front and rear surfaces of the textile uniformly, it is sometimes difficult to make a distinction between the front side and the rear side compared to other structures.
Product Procedure
Yarn→Raw yarn inspection→Warping arranging→Drawing in heddle→Drawing in reed→Weaving→Initial survey→Washing→Heat setting treatment→Physical properties inspection→Products inspection→Product→Fabricated mesh if needed→Plastic molded filters if needed
Mesh
SHARE precision filter mesh has smooth surface, great dimensional stability and strength than other material options, and tighter tolerance. It has different but precise mesh opening from 3um to 4400um. These allow for the different sized filter meshes to be used in different situations and for different purposes, such as home appliance, liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters and many more.

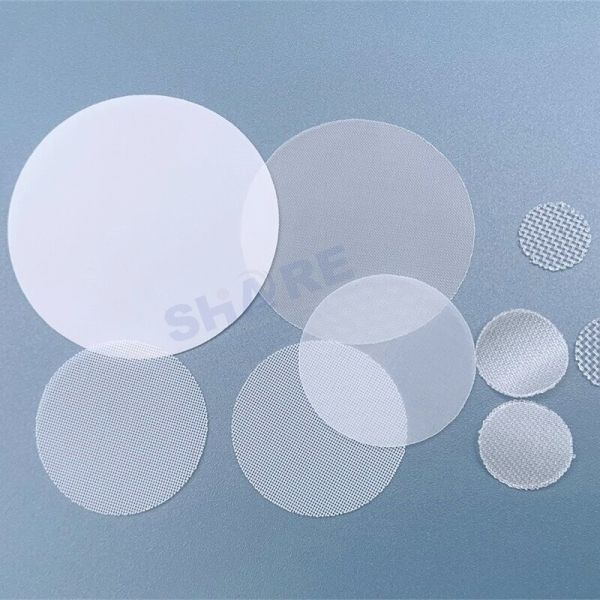

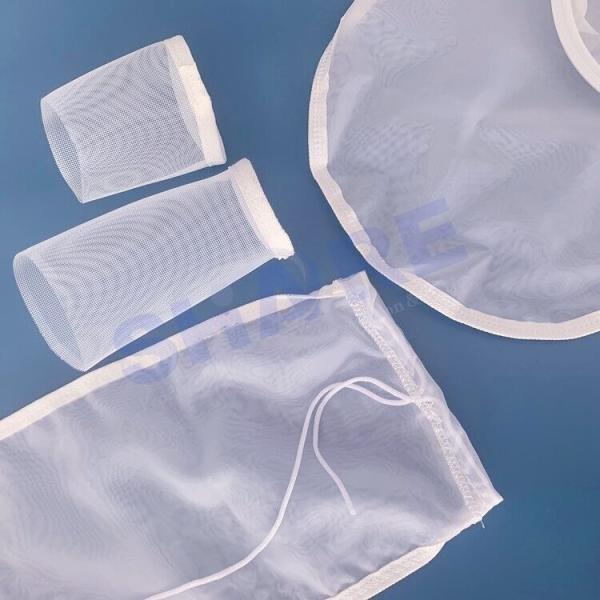

SHARE can further processed filter mesh into various forms of custom filters, such as filter pieces, shapes, ribbons, tubes, plastic filters by our state-of-the-art technologies of cutting, stitching, gluing, welding, laser cutting, molding and more, to fuifil customers and markets' demanding filtration and screening needs.
Company Profile
Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.
Our products are categorized into three classes.
Monofilament Mesh Rolls
| ![]() |
Discs, Tubes, Ribbons, Bags
| ![]() |
Plastic Molded Filters
|
Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.
Contact SHARE today for additional information and how we can help you with your specific filtration requirements.
Packaging & Shipping
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen
For fabricated filters & molded filters:
1. Packed into sealed PE bags, 10m2 to 500m2/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
Port to Port | Door to Door | |
Express(DHL,UPS,FEDEX, EMS) | 1 - 5 days | |
Air Freight | 1 - 5 days | 4 - 10 days |
Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
