Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard
Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard
Specifications
Brand Name :
Dahua Sling
Model Number :
eye eye webbing sling
Certification :
CE TUV/GS
Place of Origin :
China
MOQ :
1000 pcs
Price :
USD 30,000 / 20'GP
Individual certificates :
provide each sling
Logo :
We do it oursleves
Eye protector :
White Black or same as webbing
Eye type :
Flat Folded
Material :
100 % polyester
Safety factor :
7:1
Layer: :
single-layer, double-layer
Width: :
120mm
Standard :
EN 1492-1
Lifting capacity :
4000kg
Description

4000kg grey Polyester flat eye-eye webbing lifting sling doule ply EN 1492-1 European Safety Factor 7:1

Product Description
Meet or exceed US standard ASMEB30.9
Class 7 webbing possessing a minimum certified tensile strength of 9800LBS/in width
Low strain ,wear -resistance,long life material (100% PES)
Safety factor 5:1
Eyes are reforced with polyester wear pads
Lengths are measured from bearing point to bearing point
Eye-Eye Sling (Type 3 and 4)
Plies of Web Model Wed Width (in.) Eye Length (in.) Rated Capacity (lbs.) base Length(ft)
Vertical
Chocker
Vertical Basket
One Ply SEE1-1 1 8-1/2 1200 960 2400 3
SEE1-2 2 10 2400 1920 4800 3
SEE1-3 3 11 3600 2880 7200 3
SEE1-4 4 12 4800 3840 9600 3
SEE1-5 5 14 6000 4800 12000 3
SEE1-6 6 16 7200 5760 14400 3
Two Ply SEE2-1 1 8-1/2 2400 2560 4800 3
SEE2-2 2 10 4800 3840 9600 3
SEE2-3 3 11 6500 5200 13000 3
SEE2-4 4 12 8600 6880 17200 3
SEE2-5 5 14 10200 8160 20400 3
SEE2-6 6 16 12300 9840 24600 3

Full company name Nanjing dahua special belt knit Co., Ltd
Register date: 1993-01-01
Business License No. 91320100608919015B
Tax No. 320112608919015
Export License Registration No.: 0305519
ISO9001 No. TUV Rheinland [01100038901]
GS No. TUV Rheinland [S502223800001] [S50222380 0002]
Factory Self-owned for 25 years (since 1993)
Workers 187 workers, 60% with 10+ years experience
Export volume yearly 1200 Tons Ratchet Tie Downs
Total Building Size: 24000 Square meters
Office Size: 3800 Square meters
Address: No.2 Changsheng Road, Getang, Nanjing, China 210048
Website: www.dahua-sling.com

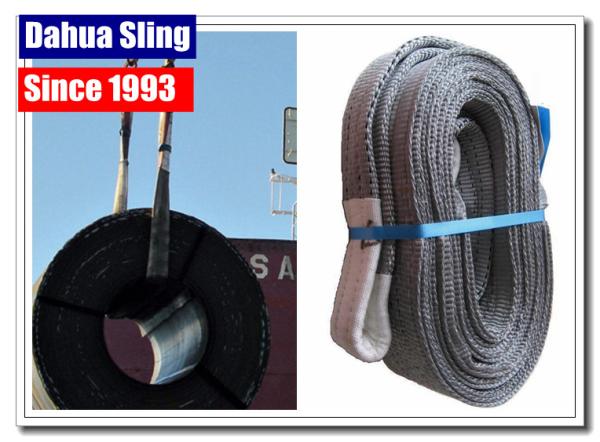

Eye-Eye webbing sling is made from high tenacity 100% polyester webbing with reinforced eye loops at both ends.It can be made from one layer to four layers, which we usually call Simplex webbing sling, Duplex webbing sling, Triplex webbing sling and Quadraplex. And the eyes can be made into Flat eyes, Twisted eyes and Reversed eyes. Eye-eye webbing slings are versatile as they can be used in choker, vertical, or basket hitches.Polyester fabric has low elongation, so it’s better able to hold the load without the risk of shocking.OEM service is also available.

1T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S(kg)
Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard

5DEE010

 Purple 5:1 25 5T
6DEE010 Purple 6:1 25/38 6T
7DEE010 Purple 7:1 30/50/60 7T
8DEE010 Purple 8:1 50 8T

2T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S(kg)
Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard 5DEE020 Green 5:1 50 10T
6DEE020 Green 6:1 50 12T
7DEE020 Green 7:1 50/60 14T
8DEE020 Green 8:1 65 16T

3T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard 5DEE030 Yellow 5:1 75 15T
6DEE030 Yellow 6:1 75 18T
7DEE030 Yellow 7:1 75/90 21T
8DEE030 Yellow 8:1 95 24T

4T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard 5DEE040 Grey 5 100 20T
6DEE040 Grey 6 100 24T
7DEE040 Grey 7 100/120 28T
8DEE040 Grey 8 120 32T

5T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S(kg)
Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard 5DEE050 Red 5:1 125 25T
6DEE050 Red 6:1 125 30T
7DEE050 Red 7:1 125/150 35T
8DEE050 Red 8:1 150 40T

6T WEBBING SLING Modelo Color Safety factor Widthmm)) M.B.S(kg)
Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard 5DEE060 Brown 5:1 150 30T
6DEE060 Brown 6:1 150 36T
7DEE060 Brown 7:1 150/180 42T
8DEE060 Brown 8:1 180 48T

8T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard 5DEE080 Blue 5:1 200 40T
6DEE080 Blue 6:1 200 48T
7DEE080 Blue 7:1 200/240 56T
8DEE080 Blue 8:1 240 64T

10T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard 5DEE100 Orange 5:1 250 50T
6DEE100 Orange 6:1 250 60T
7DEE100 Orange 7:1 250/300 70T
8DEE100 Orange 8:1 300 80T

Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard
