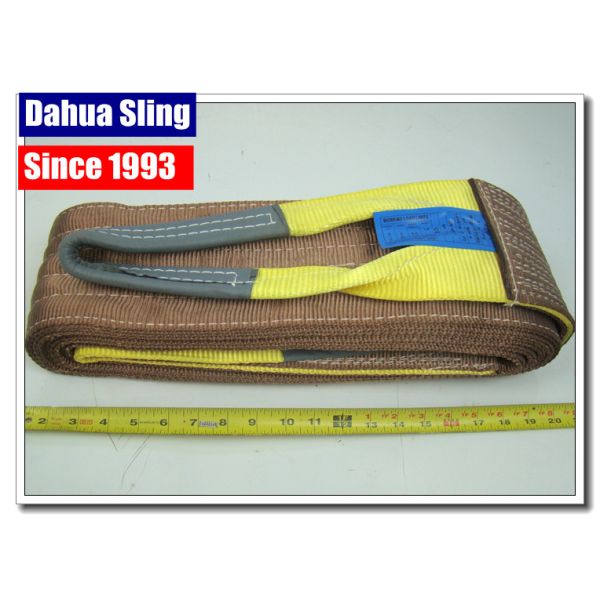

Light Duty Flat Lifting Slings Industrial Lifting Belt 4800 Lb Basket Capacity
Light Duty Flat Lifting Slings Industrial Lifting Belt 4800 Lb Basket Capacity
Specifications
Brand Name :
Dahua Sling
Model Number :
eye eye webbing sling
Certification :
CE TUV/GS
Place of Origin :
China
MOQ :
1000 pcs
Price :
USD 30,000 / 20'GP
Packaging Details :
Shrink film and carton pallets
Basket Capacity: :
4800 lb
Choker Capacity: :
1900 lb
Color: :
Yellow
Eye Length: :
6"
Material :
100 % polyester
Specification: :
WSTDA-WS-1
Width: :
1 in - 12 inches
Type: :
Web Sling
packing :
Blank or printed
Sling type :
type 3 Eye & Eye
Thickness: :
2-Ply
Applications: :
General lifting purposes, including raising, lowering, or suspending loads
Vertical Capacity :
2400lb
Description

Polyester Slings Light Duty Slings serial number identification serial number identification

Product Description

Meet or exceed US standard ASMEB30.9
Class 7 webbing possessing a minimum certified tensile strength of 9800LBS/in width
Low strain ,wear -resistance,long life material (100% PES)
Safety factor 5:1

Eye-Eye Sling (Type 3 and 4)
Plies of Web Model Wed Width (in.) Eye Length (in.) Rated Capacity (lbs.) base Length(ft)
Vertical
Chocker
Vertical Basket
One Ply SEE1-1 1 8-1/2 1200 960 2400 3
SEE1-2 2 10 2400 1920 4800 3
SEE1-3 3 11 3600 2880 7200 3
SEE1-4 4 12 4800 3840 9600 3
SEE1-5 5 14 6000 4800 12000 3
SEE1-6 6 16 7200 5760 14400 3
Two Ply SEE2-1 1 8-1/2 2400 2560 4800 3
SEE2-2 2 10 4800 3840 9600 3
SEE2-3 3 11 6500 5200 13000 3
SEE2-4 4 12 8600 6880 17200 3
SEE2-5 5 14 10200 8160 20400 3
SEE2-6 6 16 12300 9840 24600 3

Light Duty Flat Lifting Slings Industrial Lifting Belt 4800 Lb Basket Capacity

CAUTIONS:
- Do not attempt to use sling above rated lifting capacity.
- When selecting a sling,it is very important to consider the angles at which the sling will be used.
- Slings are subject to cutting when ifting items with sharp egeds.In this case,always use protective sleeves
- Do not use a damaged sling,and se only if trained.
- Do not tie knots in sling webbing as strength is greatly reduced.
- Never drag a sling beneth from a load which is resting on it.
- Chemical active environments can affect the strength of slings
- Inspect slings weekly or more frequently depending on the sling use conditions.
- Always strore slings in a cool,dry and dark place to extend the working lift.
- Always read and understand the operating instructions before use.
- Failure to comply with this warning may result in serious load damageand death or injury.

Light Duty Flat Lifting Slings Industrial Lifting Belt 4800 Lb Basket Capacity
