Polymer edge yarns resist cutting and abrasion

• 2x stronger after abrasion and 2x better edge cut resistance
• Lightweight, flexible material easily conforms to load
• Red core yarn warns of wear and aids in inspection
• Tuff-Tag provides required OSHA information for the life of the sling
• Rated capacity (lb.): 6,400 vertical, 5,000 choker, 12,800 basket
• Complies with OSHA and ASME standards

Flat Eye Slings are the most common type of sling. They can be used in all three hitches – Vertical, Choker, and Basket.

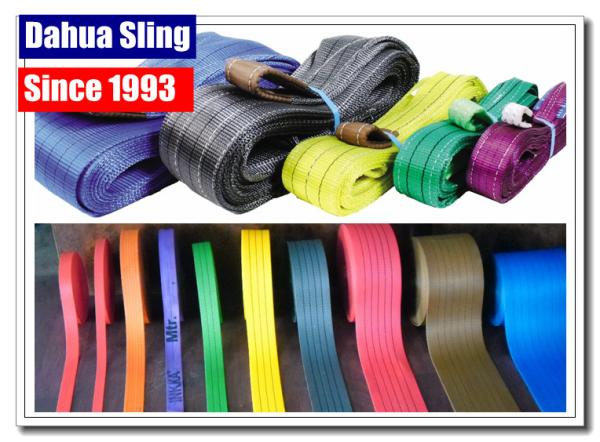

Eye-Eye webbing sling is made from high tenacity 100% polyester webbing with reinforced eye loops at both ends.It can be made from one layer to four layers, which we usually call Simplex webbing sling, Duplex webbing sling, Triplex webbing sling and Quadraplex. And the eyes can be made into Flat eyes, Twisted eyes and Reversed eyes. Eye-eye webbing slings are versatile as they can be used in choker, vertical, or basket hitches.Polyester fabric has low elongation, so it’s better able to hold the load without the risk of shocking.OEM service is also available.

1T WEBBING SLING	Modelo	Color	Safety factor	Widthmm)	M.B.S(kg)
	5DEE010	Purple	5:1	25	5T
	6DEE010	Purple	6:1	25/38	6T
	7DEE010	Purple	7:1	30/50/60	7T
	8DEE010	Purple	8:1	50	8T

2T WEBBING SLING	Modelo	Color	Safety factor	Widthmm)	M.B.S(kg)
	5DEE020	Green	5:1	50	10T
	6DEE020	Green	6:1	50	12T
	7DEE020	Green	7:1	50/60	14T
	8DEE020	Green	8:1	65	16T

3T WEBBING SLING	Modelo	Color	Safety factor	Widthmm)	M.B.S
	5DEE030	Yellow	5:1	75	15T
	6DEE030	Yellow	6:1	75	18T
	7DEE030	Yellow	7:1	75/90	21T
	8DEE030	Yellow	8:1	95	24T

4T WEBBING SLING	Modelo	Color	Safety factor	Widthmm)	M.B.S
	5DEE040	Grey	5	100	20T
	6DEE040	Grey	6	100	24T
	7DEE040	Grey	7	100/120	28T
	8DEE040	Grey	8	120	32T

5T WEBBING SLING	Modelo	Color	Safety factor	Widthmm)	M.B.S(kg)
	5DEE050	Red	5:1	125	25T
	6DEE050	Red	6:1	125	30T
	7DEE050	Red	7:1	125/150	35T
	8DEE050	Red	8:1	150	40T

6T WEBBING SLING	Modelo	Color	Safety factor	Widthmm))	M.B.S(kg)
	5DEE060	Brown	5:1	150	30T
	6DEE060	Brown	6:1	150	36T
	7DEE060	Brown	7:1	150/180	42T
	8DEE060	Brown	8:1	180	48T

8T WEBBING SLING	Modelo	Color	Safety factor	Widthmm)	M.B.S
	5DEE080	Blue	5:1	200	40T
	6DEE080	Blue	6:1	200	48T
	7DEE080	Blue	7:1	200/240	56T
	8DEE080	Blue	8:1	240	64T

10T WEBBING SLING	Modelo	Color	Safety factor	Widthmm)	M.B.S
	5DEE100	Orange	5:1	250	50T
	6DEE100	Orange	6:1	250	60T
	7DEE100	Orange	7:1	250/300	70T
	8DEE100	Orange	8:1	300	80T

CAUTIONS:

- Do not attempt to use sling above rated lifting capacity.
- When selecting a sling,it is very important to consider the angles at which the sling will be used.
- Slings are subject to cutting when ifting items with sharp egeds.In this case,always use protective sleeves
- Do not use a damaged sling,and se only if trained.
- Do not tie knots in sling webbing as strength is greatly reduced.
- Never drag a sling beneth from a load which is resting on it.
- Chemical active environments can affect the strength of slings
- Inspect slings weekly or more frequently depending on the sling use conditions.
- Always strore slings in a cool,dry and dark place to extend the working lift.
- Always read and understand the operating instructions before use.
- Failure to comply with this warning may result in serious load damageand death or injury.
