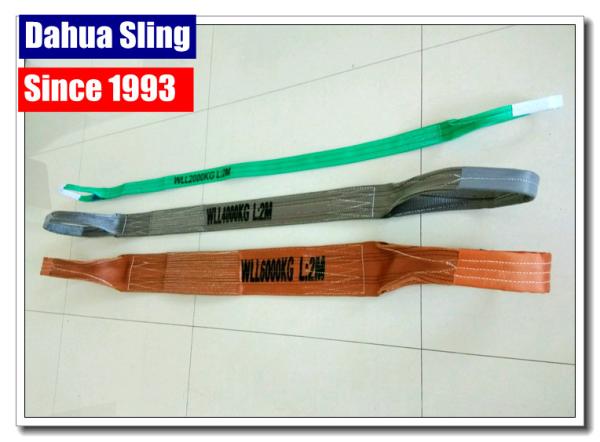

Polyester Flat Web Lifting Slings Belt slings with reinforced eyes Conforms to BS EN 1492-1 1000kg to 20,000kg

The maximum load of endless wire rope sling ranges from 0-30 ton. The length ranges from 1-100 meters. The flt web slings are made of 100%PES, and can enhance the strength of web slings by using intensive eyes or mental accessories at both ends.

Advantages of polyester flat woven round webbing sling

1.The product can be devided into single layer and multi-layer, and can sew in many ways.

2.The siza can follow the customer's requirements.

3.Wide bearing surface, which can reduce the pressure of surface load.

4.Smooth surface, which won't hurt the lifted objects.

5.High strength-to-weight ratio.

Parameters of polyester flat woven round webbing sling

Sling Capacities and Colour Codes Duplex Flat Webbing Slings. Colour Code. Webbing Width Approx Weight (g/m) Straight x WLL (kg) Choked x 0.8 WLL (kg) Basket x 2 WLL (kg) 45 degree basket x 1.8 WLL (kg) 90 degree basket x 1.4 WLL (kg) Violet (purple) 30mm 150 1000 800 2000 1800 1400 Green 60mm 300 2000 1600 4000 3600 2800 Yellow 90mm 450 3000 2400 6000 5400 4200 Grey 120mm 620 4000 3200 8000 7200 5600 Red 150mm 780 5000 4000 10000 9000 7000 Brown 180mm 1030 6000 4800 12000 10800 8400 Blue 240mm 1370 8000 6400 16000 14400 11200 Orange 300mm 1720 10000 8000 20000 18000 14000 Orange 300mm - 12000 6900 24000 21600 16800 Orange 240mm - 16000 12800 32000 28800 22400 Orange 300mm - 20000 16000 40000 36000 28000

WARNING:

1.The slings should avoid the harm of the sharp instrument when lifting the goods.

2.You can add the leather or polyester on the outer layer of the slings to protect it when lifting the goods .

3.Never use slings with damages or defects.

4.Forbidden to tie a knot of the sling or link with a knot. You should link the sling with the right connecting piece.

5.Only use slings with clear identifications.

6.Before use,check working load limit, length and working position.

7.Never use slings under -40°C Or more than 100°C .

8.Elongation rate <3% at working load <10% at breaking load.

ADVANTAGE:

• SGS system and CE approved
• Top Quality to America market and European markets
• TUV/GS approved quality
• Competitive Price
• Long Time Cooperation
• 20 customers are sourcing from us for 12 years
• Quick Shipment
• Sincere and Efficient work 24-Hours
• Quick shipment within 20 days to 35 days
• Produced according to customer's drawing and sample
• 10 new items developed per month

Nanjing Dahua Speical belt Knit co.,ltd, is located in Nanjing, China, is a professional company which owns one stop service from research, design, production ,sale to service.

We started our business earlier at t1993. We are a qualified supplier and we have obtained ISO9001:2000 and CE Quality System Certificate for Swivel Hoist Ring. Our main products include lifting and lashing serious, more than 300 kinds of specifications. Location, harmonious human environment and outstanding industrial advantages have made our company become the ideal place for foreign investment. Up till now, our products are sold to South Korea, the United Kingdom, the United States, Germany, Russia, Vietnam, Philippine, Taiwan and other countries and regions. With our effort, a good reputation has been erecting among the majority of users at home and abroad.

Our Advantages:

• Certifications: ISO 9001, CE, GS & Patents.
• Factory History: 24 years' manufacturing experience.
• Factory Location: Nanjing, China
• Management Certification: ISO 9001,CE,GS.
