Large Diameter Cable Laid Sling Galvanized Steel Wire Rope
Large Diameter Cable Laid Sling Galvanized Steel Wire Rope
Specifications
Brand Name :
Anfeng / AF
Model Number :
JZK50
Certification :
CE, GS, ISO 9001
Place of Origin :
China
MOQ :
500 pcs
Price :
Call or Email for quote
Payment Terms :
T/T, L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
Within 45 days after order confirmation
Packaging Details :
Carton + pallet, wooden box, or custom
Standard :
EN 13411-4:2002
Material :
Galvanized steel wire rope
Safety Factor :
5:1
Strength :
1770 MPa
Length :
Customized
Key word :
Wire Rope Sling with Open Spelter Socket , long-term durability
OEM or ODM services :
Yes, upon request
Place of origin :
Shanghai or Guangzhou, China
Packing :
Carton + pallet, wooden box, or custom
Description
Cable Laid Sling (Large Diameter Wire Rope Sling)
Description
Our Open Spelter Socket is equipped with cotter pin. They are made from high tensile, quenched and tempered cast steel, with a different chemical composition and with extremely high mechanical properties, while galvanization ensures its long-term durability.
This type of end fittings for wire rope sling is made depending on the specific application and the strength required for the lifting set. They are generally used as a straight tension element and are available for wire rope with a diameter from 6mm to 100mm.
The socket is attached to the end of a wire rope cable by pouring zinc or resin to create the termination. This hardens to hold the socket into place.
This type of wire rope slings are used in many wire rope and structural strand termination applications where a high strength, permanent end attachment is required. They are great options because they offer a very efficient attachment.
Our Cable Laid Slings are usually in the form of a mechanically spliced eye. Flemish eye mechanical splices, secured by swaged metal ,provide centerline pull at the eyes. They are more flexible, and the same capacity as single part slings. They are ideal for applications that require the rope to bend easily, for example, operations for heavy duty industrial, construction, offshore O&G.
Large Diameter Cable Laid Sling Galvanized Steel Wire Rope

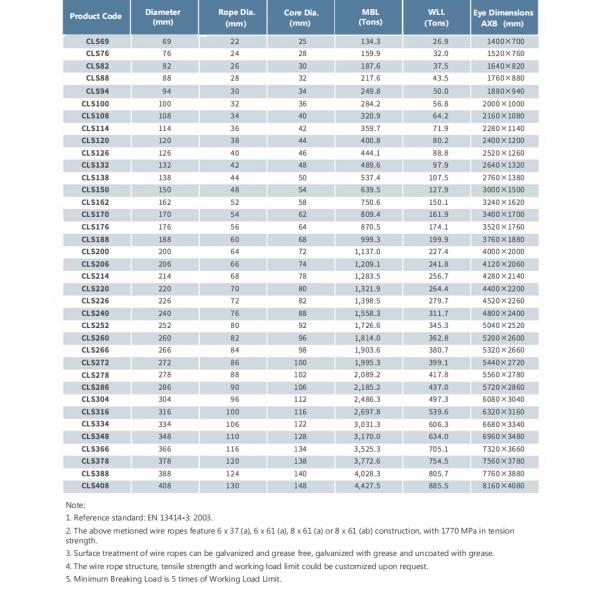

Specification
Large Diameter Cable Laid Sling Galvanized Steel Wire Rope
About Anfeng Lifting & Rigging
Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.
Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.
We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
