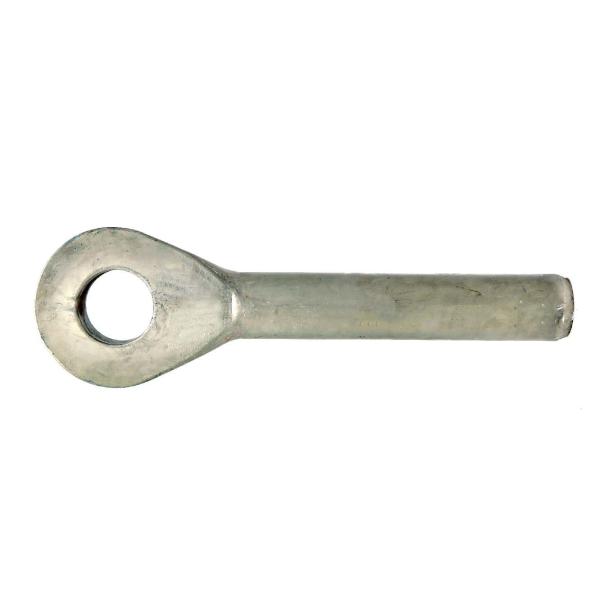

0.75 Inch Wire Rope End Stop , Closed Swage Socket
0.75 Inch Wire Rope End Stop , Closed Swage Socket
0.75 Inch Wire Rope End Stop , Closed Swage Socket
0.75 Inch Wire Rope End Stop , Closed Swage Socket
Specifications
Brand Name :
Anfeng / AF
Model Number :
O-19
Certification :
CE, GS, ISO 9001
Place of Origin :
China
MOQ :
500 pcs
Price :
Call or Email for quote
Payment Terms :
T/T, L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
Within 45 days after order confirmation
Packaging Details :
Carton + pallet, wooden box, or custom
Standard :
ASME B30.9
Material :
Galvanized carbon steel
Rope diameter :
3/4"
Rope strength :
1770 MPa
Length :
Customized
Key word :
Closed Swage Socket, End Fitting for Wire Rope, long-term durability
OEM or ODM services :
Yes, upon request
Place of origin :
Shanghai or Guangzhou, China
Packing :
Carton + pallet, wooden box, or custom
Description
3/4" Closed Swage Socket, End Fitting for Wire Rope, long-term durability
Wire Rope End Fittings
Description
Our Closed Swage Socket is forged from high tensile steel, while galvanization ensures its long-term durability. The Closde Swage Socket is available for wire rope with a diameter from 1/4" to 2".
- Reference standard: ASME B30.9
- Our Swage Sockets are recommended used for wire ropes feature 6 x 19, 6 x 25, 6 x 37 construction, with tension strength ranging from 1670 MPa to 1960 MPa.
- Swaged Terminals of the wire rope should be went through tension proof testing in accordance with the ASME B30.9 standard requirements.
- Maximum Proof Load Capacity should be no more than 50% of Breaking Load Capacity for wire ropes that with higher strength of 1960 MPa.
0.75 Inch Wire Rope End Stop , Closed Swage Socket
Specification
0.75 Inch Wire Rope End Stop , Closed Swage Socket
Product code Rope diameter Dimensions (mm) Rope dia. after swage Weigth
(in.) (mm) L D B D1 d L1 H K (mm) (kg)
O-06 1/4 6.35 109.98 12.7 35.05 19.05 6.86 54.1 12.7 88.9 11.68 0.14
O-08 5/16 7.94 139.7 19.56 41.4 22.61 8.64 80.01 17.02 114.3 18.03 0.36
O-10 3/8 9.53 139.7 19.56 41.4 22.61 10.41 80.01 17.02 114.3 18.03 0.32
O-11 7/16 11.11 176.02 24.89 50.8 26.92 12.19 107.95 22.61 146.05 23.11 0.64
O-13 1/2 12.7 176.02 24.89 50.8 26.92 13.97 107.95 22.61 146.05 23.11 0.64
O-14 9/16 14.29 220.98 31.75 60.96 32 15.49 134.87 28.96 184.91 29.46 1.32
O-16 5/8 15.88 220.98 31.75 60.96 32 17.02 134.87 28.96 184.91 29.46 1.32
O-19 3/4 19.05 259.08 39.37 72.9 36.58 20.32 162.05 33.27 216.92 36.07 2.27
O-22 7/8 22.23 304.04 43.18 78.99 43.18 23.88 188.98 38.1 258.06 39.37 3.08
O-26 1 25.4 341.88 50.29 91.95 52.07 26.92 215.9 44.96 293.12 45.72 4.72
O-28 1-1/8 28.58 382.02 57.15 102.1 58.93 30.23 243.08 50.8 323.09 52.07 6.71
O-32 1-1/4 31.75 431.04 64.26 114.3 65.02 33.78 270 57.15 363.98 58.42 9.8
O-36 1-3/8 34.93 474.98 71.12 127 65.02 36.83 296.93 57.15 402.08 65.02 12.93
O-38 1-1/2 38.1 511.05 78.23 139.7 71.37 40.13 323.85 64 432.05 71.37 17.28
O-45 1-3/4 44.45 597.92 86.11 159 89.92 47.24 377.95 76.2 508 78.23 23.13
O-50 2 50.8 702.06 100.08 183.90 97.03 54.1 432.05 83.06 584.2 90.42 40.51
