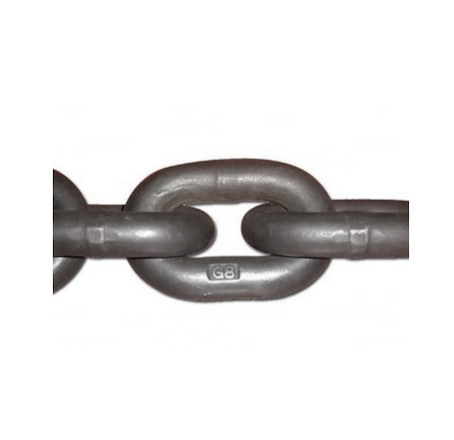

32mm EN818-2 Grade 80 Alloy Steel Lifting Chain Sling
32mm EN818-2 Grade 80 Alloy Steel Lifting Chain Sling
32mm EN818-2 Grade 80 Alloy Steel Lifting Chain Sling
32mm EN818-2 Grade 80 Alloy Steel Lifting Chain Sling
Specifications
Brand Name :
Anfeng / AF
Model Number :
/
Certification :
CE, GS, ISO
Place of Origin :
China
MOQ :
200 pcs
Price :
Call or Email for quote
Payment Terms :
T/T, L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
Within 45 days after order confirmation
Packaging Details :
Carton + pallet, wooden box, or custom
Key word :
Grade 80 Alloy Steel Heavy Duty Lifting Chain, industrial lifting chain, chain sling
Material :
High strength alloy steel
Strength of the chain :
Grade 80
WLL :
31,500 kg
Finish :
self colour painted
Standard :
EN818-2
Length :
Customized
Application :
Overhead lifting application, industrial lifting, heavy lift
Packaging :
Carton + pallet, wooden box, or custom
OEM or ODM services :
Yes, upon request
Description
32mm EN818-2 Grade 80 Alloy Steel Heavy Duty Lifting Chain, industrial lifting chain, high strength, for overhead lifting applications
Grade 80 Lifting Chain
Product Overview
Our Grade 80 alloy steel chains are conform to the requirements of EN818-2 standards. They are heat-treated alloy steel designed for high strength for overhead lifting applications.
The chains are available in size from 1/4" to 1-1/4". They're tested throughout the entire manufacturing process to ensure all chains meet or exceed the specifications of EN818-2 standards.
Main features:
- Alloy steel
- Heat treated
- Finish: self colour painted
- Minimum proof test load is 2 times of the working load limit.
Specification
32mm EN818-2 Grade 80 Alloy Steel Lifting Chain Sling32mm EN818-2 Grade 80 Alloy Steel Lifting Chain Sling
Chain Dia. Tolerance P Tolerance Li min Le max f min W.L.L Min. Proof load M.B.L Weight
mm inch mm mm mm mm mm mm kg KN KN kg/m
6 1/4 ±0.24 18 ±0.5 7.8 22.2 4.8 1120 28.3 45.2 0.8
7 9/32 ±0.28 21 ±0.6 9.1 25.9 5.6 1500 38.5 61.6 1.1
8 5/16 ±0.32 24 ±0.7 10.4 29.6 6.4 2000 50.3 80.4 1.4
10 3/8 ±0.40 30 ±0.9 13 37 8 3150 78.5 126 2.2
13 1/2 ±0.52 39 ±1.2 16.9 48.1 10 5300 133 212 3.8
16 5/8 ±0.64 48 ±1.4 20.8 59.2 13 8000 201 322 5.7
18 11/16 ±0.90 54 ±1.6 23.4 66.6 14 10000 254 407 7.3
20 3/4 ±1.00 60 ±1.8 26 74 16 12500 314 503 9
22 7/8 ±1.10 66 ±2.0 28.6 81.4 18 15000 380 608 10.9
26 1 ±1.30 78 ±2.3 33.8 96.2 21 21200 531 849 15.2
32 1-1/4 ±1.60 96 ±2.9 41.6 118 26 31500 804 1290 23
32mm EN818-2 Grade 80 Alloy Steel Lifting Chain Sling
About Anfeng Lifting & Rigging
Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.
Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.
We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
32mm EN818-2 Grade 80 Alloy Steel Lifting Chain Sling
