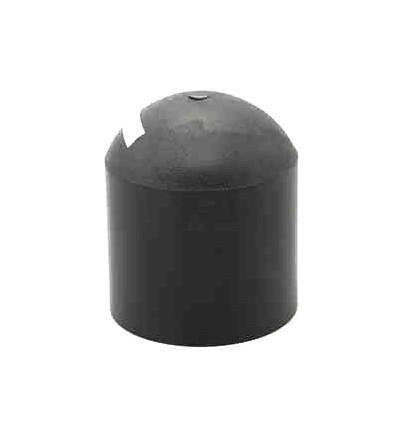

DN32-DN355 PE SDR11 SDR17 SDR17.6 MDPE Butt Fusion End Cap
DN32-DN355 PE SDR11 SDR17 SDR17.6 MDPE Butt Fusion End Cap
Specifications
Brand Name :
LUTONG
Model Number :
DN63-DN355
Certification :
BSI
Place of Origin :
CHINA
MOQ :
NEGOTIATION
Price :
NEGOTIATION
Packaging Details :
CARTON
Material :
MDPE
Color :
Black
Application :
Gas pipe
Welding mode :
Butt fusion
Size :
DN32 - DN355
SDR value :
SDR11, SDR17, SDR17.6
Delivery Time :
NEGOTIATION
Payment Terms :
NEGOTIATION
Supply Ability :
10000 PER MONTH
Description
MDPE BUTT FUSION END CAP DN32 - DN355 PE FUSION FITTINGS SDR11, SDR17, SDR17.6

MDPE End Cap standard EN1555.3/EN12201.3/ ISO8085/ ISO4427.3;

MDPE SDR11 End Cap applied for gas pipeline pressure reach 0.5Mpa.

MDPE SDR 17.6 and SDR17 End Cap applied for gas pipeline pressure reach 0.3Mpa

The length of the welding pipe section can be lengthened according to the requirement.

DN32-DN355 PE SDR11 SDR17 SDR17.6 MDPE Butt Fusion End Cap

d mm e(SDR11) mm e(SDR17) mm e(SDR17.6) mm L1 mm L mm
32 3.0 - - 44 60
40 3.7 - - 49 65
50 4.6 - - 55 75
63 5.8 - - 67 90
75 6.8 4.5 4.3 70 105
90 8.2 5.4 5.2 79 124
110 10.0 6.6 6.3 82 137
125 11.4 7.4 7.1 87 149
140 12.7 8.3 8.0 92 162
160 14.6 9.5 9.1 98 178
180 16.4 10.7 10.3 105 195
200 18.2 11.9 11.4 112 212
225 20.5 13.4 12.8 120 232
250 22.7 14.8 14.2 130 255
315 28.6 18.7 17.9 150 307
355 32.2 21.1 20.2 165 342
