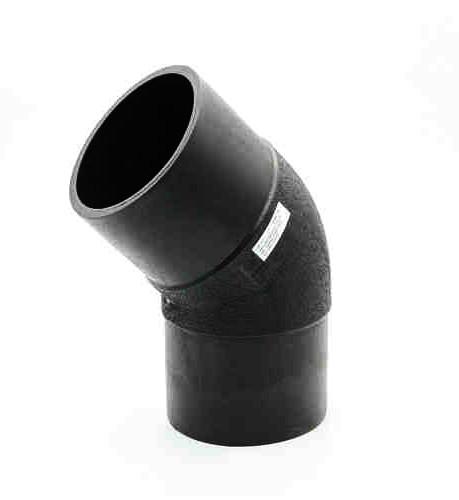

DN63-DN450 SDR11 SDR17 SDR17.6 MDPE Butt Fusion 45 Degree Elbow
DN63-DN450 SDR11 SDR17 SDR17.6 MDPE Butt Fusion 45 Degree Elbow
Specifications
Brand Name :
LUTONG
Model Number :
DN63-DN450
Certification :
BSI
Place of Origin :
CHINA
MOQ :
NEGOTIATION
Price :
NEGOTIATION
Packaging Details :
CARTON
Material :
MDPE
Color :
Black
Application :
Gas pipe
Welding mode :
Butt fusion
Size :
DN63 - DN450
SDR value :
SDR11, SDR17, SDR17.6
Delivery Time :
NEGOTIATION
Payment Terms :
NEGOTIATION
Supply Ability :
10000 PER MONTH
Description
  • MDPE BUTT FUSION ELBOW 45 DEGREE DN63 - DN450 PE FUSION FITTINGS SDR11, SDR17,SDR17.6
  • MDPE Elbow 45 degree standard EN 1555.3/ EN12201.3/ ISO8085/ ISO4427.3;
  • MDPE SDR11 Elbow 45 degree applied for gas pipeline pressure reach 0.5Mpa.
  • MDPE SDR17.6 and SDR 17 Elbow 45 degree applied for gas pipeline pressure reach 0.3Mpa.
  • The length of the welding pipe section can be lengthened according to the requiremen

DN63-DN450 SDR11 SDR17 SDR17.6 MDPE Butt Fusion 45 Degree Elbow

d mm e(SDR11) mm e(SDR17) mm e(SDR17.6) mm L1 mm L mm
63 5.8 3.8 3.6 64 85
90 8.2 5.4 5.2 80 110
110 10.0 6.6 6.3 84 125
160 14.6 9.5 9.1 100 155
200 18.2 11.9 11.4 115 166
225 20.5 13.4 12.8 123 180
250 22.7 14.8 14.2 132 200
315 28.6 18.7 17.9 153 240
355 32.3 21.1 20.2 167 285
※400 36.4 23.7 22.8 240 275
※450 40.9 26.7 25.6 260 285
