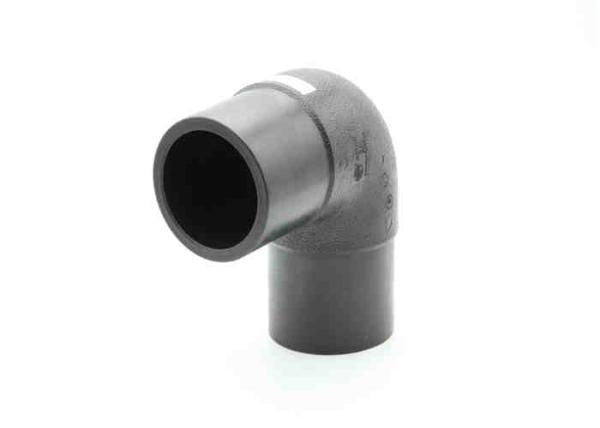

MDPE DN63-DN450 SDR11 SDR17 SDR17.6 PE Spigot 90 Degree Elbow Pipe
MDPE DN63-DN450 SDR11 SDR17 SDR17.6 PE Spigot 90 Degree Elbow Pipe
Specifications
Brand Name :
LUTONG
Model Number :
DN63-DN400
Certification :
BSI
Place of Origin :
CHINA
MOQ :
NEGOTIATION
Price :
NEGOTIATION
Packaging Details :
CARTON
Material :
MDPE
Color :
Black
Application :
Gas pipe
Welding mode :
Butt fusion
Size :
DN63 - DN450
SDR value :
SDR11, SDR17, SDR17.6
Delivery Time :
NEGOTIATION
Payment Terms :
NEGOTIATION
Supply Ability :
10000 PER MONTH
Description
  • MDPE SPIGOT ELBOW 90 DEGREE DN63-DN450 PEFUSION FITTINGS SDR11, SDR17, SDR17.6
  • MDPE Elbow 90 degree standard EN 1555.3/ EN12201.3/ ISO8085/ ISO4427.3;
  • MDPE SDR11 Elbow 90 degree applied for gas pipeline pressure reach 0.5Mpa.
  • MDPE SDR17.6 and SDR 17 Elbow 90 degree applied for gas pipeline pressure reach 0.3Mpa.
  • The length of the welding pipe section can be lengthened according to the requirement.MDPE DN63-DN450 SDR11 SDR17 SDR17.6 PE Spigot 90 Degree Elbow Pipe

d mm e(SDR11) mm e(SDR17) mm e(SDR17.6) mm L mm L1 mm
63 5.8 3.8 3.6 117 64
90 8.2 5.4 5.2 145 80
110 10.0 6.6 6.3 154 84
160 14.6 9.5 9.1 206 99
200 18.2 11.9 11.4 231 114
225 20.5 13.4 12.8 255 121
250 22.7 14.8 14.2 279 131
315 28.6 18.7 17.9 336 152
355 32.2 21.1 20.2 373 167
400 36.4 23.7 22.8 480 275
※450 40.9 26.7 25.6 525 285
