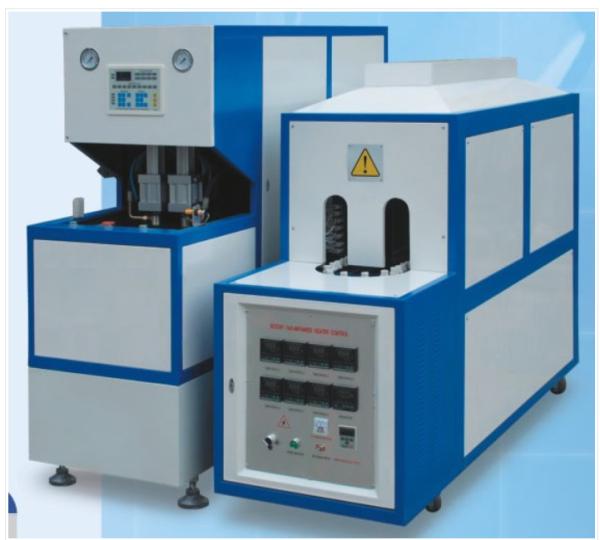

Water Bottle Semi Automatic Blow Molding Machine Double Crank Clamping CM - 8Y1
Water Bottle Semi Automatic Blow Molding Machine Double Crank Clamping CM - 8Y1
Specifications
Model Number :
CM-8Y1
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Depends on different model
Payment Terms :
L/C, T/T
Supply Ability :
4 sets / 90 days
Delivery Time :
90 days
Packaging Details :
Without package or wooden
Grade :
Semi Auto
Max. Volume :
2L
Output :
600-900 pcs/hr
Material :
PET
Condition :
New
Warranty :
1 Year
Description

Water Bottle Semi Automatic Blow Molding Machine Double Crank Clamping CM - 8Y1

Descriptions :

CM-8Y1 adopt double-crank clamping and mid-platen moving design ensure preforms do not drop during mould closing. And imported high pressure blowing system ensures higher clarity and faster production. CM-8Y1 features space saving, stable structure, easy and safe for operating.

Widely used to produce PET plastic containers and bottles from 0.1L to 2L, finished product applied to carbonated, pesticide, oil, cosmetics, wide-mouth and mineral water bottle etc.

Main Technical Parameters
Model Item CM-8Y-H
Container Product Material PET
Volume (L) 0.1-2
Theoretical Output (pcs/h) 600-900
Preform Length (mm) ≤300
Preform Inner Dia. (mm) ≥Φ12
Mould Max. Mould Plate Dia. (LxW) (mm) 350x380
Max. Mould Thickness (mm) 210
Mould Opening Stroke (mm) 160
Machine Size And Weight Main Machine (LxWxH) (m) 1.6x0.6x1.61
Machine Weight (kg) 500
Heater (LxWxH) (m) 1.87x0.63x1.45
Heater Weight (kg) 250
Power (kw) 17.5
