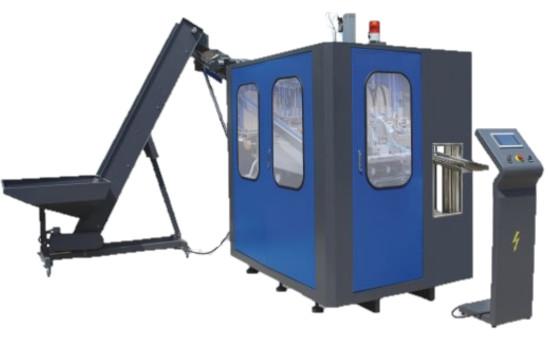

PET Plastic Drum Blow Molding Machine Full Automatic Control Safe Operation
PET Plastic Drum Blow Molding Machine Full Automatic Control Safe Operation
Specifications
Model Number :
CM-A2
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Depends on different model
Payment Terms :
L/C, T/T
Supply Ability :
4 sets / 90 days
Delivery Time :
90 days
Packaging Details :
Without package or wooden
Automatic :
Fully
Material :
PET
Max. Volume :
2L
Capacity :
1800-2000 pcs/h
Cavity :
2
Condition :
New
Description

CM-A2 Full Automatic Blow Molding Machine Every Hour 1800 To 2000 pcs

Descriptions :

CM-A2 is one of the full automatic blow molding machine, suitable for blowing PET plastic containers and bottles in all shapes. Full automatic control can save power and cost, reasonable machine design quick and safe operation, also easy for maintenance. Infrared oven adopts the quartz lamp to heat the PET tube.

Main Technical Parameters
Model Item CM-A2
Productivity Depend On Bottle Design 1800-2000 pcs/h
Volume (L) ≤ 2
Product Type Body Diameter (mm) ≤ 100
Height (mm) ≤ 310
Neck Diameter (mm) ≤ 38
Cavity 2
Mould Thickness (mm) 240
Size 260x240x370
Main Machine Power Electrical Source Power 380V/220V 50/60HZ 3Phase
Power (kw) 25
Really Use Power (kw) 6.5
Air System HP Air Compressor 1.4 m³ /min 3.0Mpa
LP Air Compressor 1.0 m³ /min 1.0Mpa
Air Tank 0.6 m³ 3.0Mpa
Air Dryer 1.0 m³ /min 3.0Mpa
Cooling Water Water Chiller 3HP
Machine Size (LxWxH) (mm) 1900x1280x1930
Weight (kg) 2000
Perform Unscrambler Size (LxWxH) (mm) 2000x950x2480
Weight 250
