1000Kg SHD Series Plastic Auxiliary Equipment Low Energy Consumption 1 Year Warranty
1000Kg SHD Series Plastic Auxiliary Equipment Low Energy Consumption 1 Year Warranty
1000Kg SHD Series Plastic Auxiliary Equipment Low Energy Consumption 1 Year Warranty
1000Kg SHD Series Plastic Auxiliary Equipment Low Energy Consumption 1 Year Warranty
Specifications
Model Number :
SHD
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Depends on different model
Payment Terms :
L/C, T/T
Supply Ability :
4 sets / 90 days
Delivery Time :
90 days
Packaging Details :
Without package or wooden
Capacity :
15-1000 kg
Injectioner :
30-12000 g
Condition :
New
Warranty :
1 Year
Description

1000Kg SHD Series Plastic Auxiliary Equipment 1 Year Warranty

Descriptions :

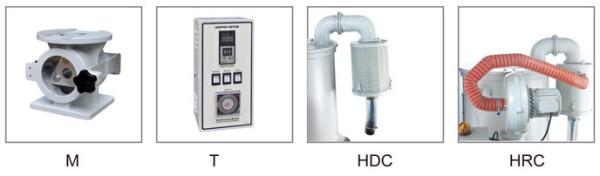

The heating barrel is made from the stainless steel to ensure that the material is not polluted and easier to be cleaned. The air dispersion device of the stainless steel net plate enables the heat air to evenly blow the material. The temperature is even in the barrel and the material sin turns on time. There is a hinge connection structure between the heating barrel and the hopper, which facilitates opening, reloading and cleaning. An open-door type magnetic base, which is convenient and easy to take out the magnet for cleaning the scrap iron. The timing startup device of any time can be matched to reduce pre-heating time on duty and improve efficiency. The hot air recycle device can be matched to reduce energy consumption. The Hopper dust collector can be matched to prevent the dust into the workshop.

Main Technical Parameters
Model Capacity (kg) Heater Power (kw) Blower Power (W) External Dimension (LxWxH) Seat Dimension (KxWxJ) Adaptable Injectioner (g)

Weight

(kg)
SHD-15 15 2.7 120 660x360x800 120x120x50 30-60 28
SHD-25 25 3.2 120 725x405x950 150x150x60 30-60 38
SHD-50 50 4.2 180 840x490x1070 160x160x75 125-500 75
SHD-75 75 5 180 900x550x1175 160x160x75 500-1000 85
SHD-100 100 7 250 955x605x1410 200x200x90 1000-1500 95
SHD-150 150 9 250 960x610x1560 200x200x90 1500-2000 120
SHD-200 200 12 400 1230x770x1660 230x240x105 2000-2500 150
SHD-250 250 14.5 400 1235x775x1790 230x240x105 2500-3000 170
SHD-300 300 14.5 400 1335x870x1810 230x230x110 3000-4000 200
SHD-400 400 18 500 1360x915x1870 280x280x120 4000-6000 225
SHD-600 600 24 800 1360x950x2080 280x280x135 6000-8000 250
SHD-800 800 30 1100 1380x1150x2250 280x280x135 8000-10000 300
SHD-1000 1000 37 3000 1400x1200x2600 280x280x135 8000-12000 360
