HD/MD/ZD/GD Plastic Bag Printing Machine , Automatic Screen Printing Machine No Stopping
HD/MD/ZD/GD Plastic Bag Printing Machine , Automatic Screen Printing Machine No Stopping
Specifications
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Depends on different model
Payment Terms :
L/C, T/T
Supply Ability :
4 sets / 90 days
Delivery Time :
90 days
Packaging Details :
Without package or wooden
Automatic :
Automatic
Type :
Rotogravure
Usage :
Print
Material :
BOPP, PET, PVC, PE, NY, Paper
Max. Width :
1300 mm
Max. Speed :
400 m/min
Description

Descriptions Of ELS Printing Machine :

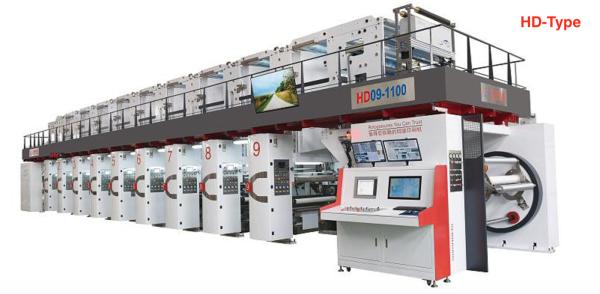

HD/MD/ZD/GD-Type are rotogravure and used for BOPP, PET, PVC, PE, NY, roll paper printing with excellent properties of thin film reel material, widely applied in all kinds of high grade print.

Four type parameters are as follow, but most important of all, these machines features : driving by electronic line shaft system, high accuracy individual motor driving with phase adjustment without compensation roller, incorporating with length with sidelay auto register control, quick job changeover, reduction initial setup time, quick accuracy and stable register adjusting also can reduce materials wastage. The latest improved gear box, no-stopping registration device. Movable type doctor blade, transverse reciprocating motion. Obverse and reverse side once-through continuous printing. All function is reliable and the printing performance is well.

Main Technical Parameters
Model HD MD ZD GD
Print Material BOPP, PET, PVC, PE, NY, Paper
Print Width 1100, 1300 850, 1050, 1250 850, 1050, 1250 850, 1050, 1250
Mechanical Speed (m/min) 400 350 280 220
Plate Cylinder (mm) ⌀120-⌀320 ⌀120-⌀300 ⌀120-⌀300 ⌀120-⌀300
Unwind, Rewind Web Dia. (mm) ⌀800 ⌀600, ⌀800 ⌀600, ⌀800 ⌀600, ⌀800
