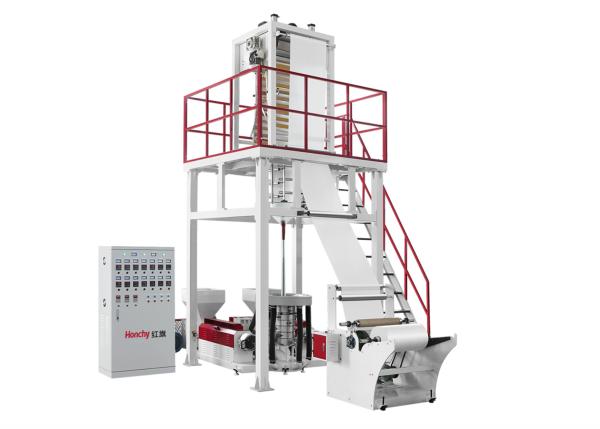

Three Layer Plastic Film Blowing Machine Co Extrusion 600-1500 Film Width Manual Screen
Three Layer Plastic Film Blowing Machine Co Extrusion 600-1500 Film Width Manual Screen
Specifications
Model Number :
F3B-ABA
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Depends on different model
Payment Terms :
L/C, T/T
Supply Ability :
4 sets / 90 days
Delivery Time :
90 days
Packaging Details :
Without package or wooden
Material :
LDPE, LLDPE, HDPE
Width :
600-1500
Thickness :
0.008-0.10
L/D :
30:1
Screen :
Manual
Coiling Type :
Back To Back
Description

Descriptions Of F3B-ABA Series :

Selection equipment have IBC film bubble internal cooling system, computer centralized control system.

IBC internal cooling die : 360° horizontal traction rotation and automatic coiling.

Main Technical Paraments
Model F3B-ABA-700 F3B-ABA-900 F3B-ABA-1100 F3B-ABA-1300 F3B-ABA-1600
Applicable Materials LDPE, LLDPE, HDPE
Width Of Film 600 800 1000 1200 1500
Thickness Of Film 0.008-0.10 0.008-0.10 0.01-0.10 0.01-0.10 0.01-0.10
Max. Extrusion Output (kg/h) HDPE : 60 HDPE : 75 HDPE : 80 HDPE : 90 HDPE: 110
LDPE : 70 LDPE : 85 LDPE : 90 LDPE : 100 LDPE : 120
Extruder
Screw Diameter ⌀45 x 2 ⌀50 x 2 ⌀50 x 2 ⌀55 x 2 ⌀60 x 2
Screw L/D Ratio 30:1
Screw Material SAC-645 / 38 CRMOALA
Feeding Tube Material SAC-645 / 38 CRMOALA
Feeding Tube Cooling 180W x 3 180W x 3 180W x 3 180W x 3 180W x 4
Main Motor Power 11kw x 2 15kw x 2 15kw x 2 18.5kw x 2 22kw x 2

Temperature

Control Point

 3 3 3 3 4
Screen Changer
For Network Type Manual Change

Temperature

Control Point

 1 1 1 1 1
Die Head

Die Diameter

(mm)

 HDPE : ⌀55 HDPE : ⌀80 HDPE : ⌀110 HDPE : ⌀130 HDPE : ⌀150
LDPE : ⌀160 LDPE : ⌀180 LDPE : ⌀220 LDPE : ⌀250 LDPE : ⌀300
Cooling Air Ring Type Double Air Duct
Blower Power 3 kw 4 kw 4 kw 5.5 kw 7.5 kw
Extraction Device
Pull The Toll Width 700 900 1100 1300 1600
The Speed Of Extraction 10-80
Trigger Motor Power 1.5 kw 2.2 kw 2.2 kw 3 kw 3 kw
Stability Ring 1
Winding Device
Coiling Type Back To Back
Effective Width 600 800 1000 1200 1500
Max. Winding Diameter 800
Take The Roll ⌀250 x 700L ⌀250 x 900L ⌀250 x 1100L ⌀250 x 1300L ⌀250 x 1600L
Air Up The Scroll 2 Sets
Land Size (m) 5 x 3.5 x 5 5.5 x 3.7 x 5 6 x 3.9 x 5.2 6.5 x 4.1 x 5.2 7 x 4.2 x 6
Optional Device

Corona Processor, Hydraulic Fast Screen Changer,

Back To Back Automatic Coiler, Rotary Head
