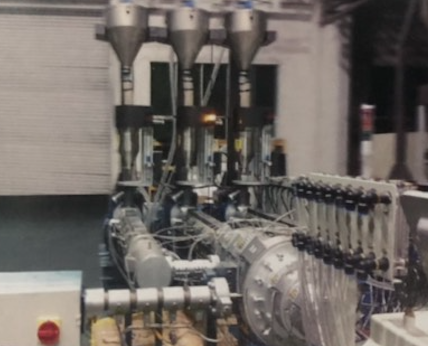

Multi Layer JWPEG Plastic Pipe Making Machine Excellent Mixing Effect Side Feeding
Multi Layer JWPEG Plastic Pipe Making Machine Excellent Mixing Effect Side Feeding
Multi Layer JWPEG Plastic Pipe Making Machine Excellent Mixing Effect Side Feeding
Multi Layer JWPEG Plastic Pipe Making Machine Excellent Mixing Effect Side Feeding
Specifications
Model Number :
JWPEG
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Depends on different model
Payment Terms :
L/C, T/T
Supply Ability :
10 sets / 90 days
Delivery Time :
120 days
Packaging Details :
Without package or wooden
Application :
Solid Wall Pipe
Material :
HDPE
Layers :
Multi-Layer
Pipe Dia. :
⌀16-⌀500 mm
Output :
105-1350 kg/h
Mold :
Multi-Layer Spiral
Description

Descriptions :

  • According to customer's requirments, we can provid 2-layer / 3-layer / 5-layer and multi-layer solid wall pipe line.
  • Multiple extruders can be synchronized, and multiple meter weight control system can be selected.
  • Main PLC can centralized controlled, which achieve precise and quantitative extrusion of each extruder.
  • On the basis of multi-layer spiral mold designed with different layers and thickness ratios, the distribution of mold cavity flow channels is reasonable to ensure that the tube layer thickness is uniform and plasticization effect of each layer is better.

Main Technical Parameters
Model Pipe Spec Extruder Main Power Output
Unit mm kw kg/h
JWPEG-75 ⌀16-⌀75 JWS-H65/33+45/25 45+15 105-155
JWPEG-125 ⌀20-⌀125 JWS-H65/33+45/33 75+22 250-300
JWPEG-160 ⌀50-⌀160 JWS-H65/33+45/33 75+22 250-305
JWPEG-315 ⌀75-⌀315 JWS-H75/33+45/33 132+30 475-540
JWPEG-500 ⌀160-⌀500 JWS-H90/33+65/33 160+75 700-790
JWPEG-630 ⌀315-⌀630 JWS-H120/33+75/33 280+110 1200-1350

Other Pipe Line Assisting Parts :

  • Screw and barrel : Use China’s best screw brand established in 1978 which has 40 years professional experience in production of screw barrels. An effective guarantee of product quality. Offer single-screw, twin-screw barrels also has special customized designs.
  • Online Pipe Weight Metering And Monitoring System : Gravity metering equipment is used in the extrusion process which can save raw material consumption to the greatest extent and reduce boot waste. The control accuracy is less than ± 0.3%.
  • Pipe Socketing Machine : This machine can be used for the belling of PVC/PP solid wall pipe, double-wall corrugated pipe. The belling mould adopts hydraulic driving. The range is Φ20-Φ800.
  • Mixers : Adopts PLC control. It is mainly applied to the process of ingredients, mixing, coloring, drying and devolatilization of various resins such as polyvinyl chloride.
  • Crusher : Shredding scraps during the production of reclaimed pipes and unconventional products produced during trial production. There are crushers with different uses and specifications to choose form.

Multi Layer JWPEG Plastic Pipe Making Machine Excellent Mixing Effect Side FeedingMulti Layer JWPEG Plastic Pipe Making Machine Excellent Mixing Effect Side Feeding
