Reliable HDPE Blow Moulding Machine , Plastic Bottle Blowing Machine Stable Performance
Reliable HDPE Blow Moulding Machine , Plastic Bottle Blowing Machine Stable Performance
Specifications
Model Number :
BM-D
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Depends on different model
Payment Terms :
L/C, T/T
Supply Ability :
10 sets / 90 days
Delivery Time :
120 days
Packaging Details :
Without package or wooden
Automatic :
Automatic
HS Code :
8477301000
Station :
Double Station
Die Head :
Accumulating Type
Weight :
16/23/25 T
Power :
115/145/195 Kw
Description

Description Of BM30D/50D/100D :

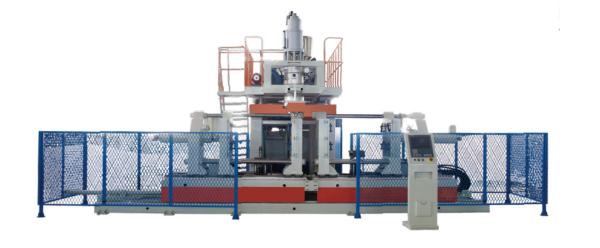

Model BM30D/50D/100D series which is a double-station accumulation type extrusion blow molding machine, suitable for producing 15L to 100L different size jerrycan, open-top drums chemical packaging products. The high output extrusion system double station structure can make the products more strength and resilience, this machine almost no failure during producing, easy operating and less workers required.

Optionals :

  • View strip line system
  • Hydraulic servo control system

Main Technical Parameters
Model Unit JWZ-BM30D JWZ-BM50D JWZ-BM100D
Max. Product Volume L 30 50 100
Dry Cycle Pc/h 800 600 500
Die Head Structure Accumulating Type
Main Screw Diameter mm 90 100 120
Max. Plasticizing Capacity (PE) kg/h 180 220 280
Driving Motor Kw 55 75 110
Accumulating Volume L 4/5.2 6.2 12.8
Oil Pump Motor Power Kw 18.5 22 30
Clamping Force KN 280 400 600
Max. Space Between Platen mm 350-800 450-1200 500-1300
Platen Size W*H mm 740*580 880*750 1020*1000
Max. Mould Size mm 550*650 700*850 800*1200
Platen Moving Size mm 1400 1800 1900
Heating Power Of Die Head Kw 20 28 30
Dimension L*W*H m 5.2*8.5*3.5 5.6*9.2*3.8 6.0*10.2*4.2
Machine Weight T 16 23 25
Total Power Kw 115 145 195

Equipment Details :

　Control System

  • SIEMENS human-machine interface : Providing easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, so malfunctions can be displayed on the screen.
  • BECKHOFF Germany human-machine interface : Machine interface and parison programmer can adjust within 300 points.
  • MOOG parison programmer : Parison control system uses MOOG 100 points passion programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.

　Extrusion and Die Head

  • Our extruder screw and barrel, provide high output, smooth plastization, wearable and long life. The gear box is the kind of product specially used for plastic extrasion.
  • We supply stable and different kinds of single/multi-layer continuous/accumulating type die head. Fit for customer’s requirement for different high molecular material and different no of layer.

　Blowing System

  • Up-blowing unit : Use for continuous type blow molding machine.
  • Bottom-blowing unit : Use for accumulating type blow molding machine.

　Output System

  • Finished product take out robot.
  • Together scrap collect, convey, crusher into one unit.

　Hydraulic System

  • YUKEN hydraulic controlling system : Used servo-controlled technology to control the movements of actuators, has follow advantages : quickly response and highly energy-efficiency.
  • Optional REXROTH and GEFRAN hydraulic system : Could save about 50% energy.

　Opening and Closing System

  • Toggle struction
  • Common three platen and three tie bar struction

　Lubrication System

  • Auto-lubrication system can lubricate the system with a set cycle automatically.

　Electric System

  • SIEMENS : CPU unit, temperature-control unit, digital-output unit, analog-output unit
  • MITSUBISH I: CPU unit
  • ABB : Invertor revolving speed-control
  • Schneider : Electric components
