Letterpress Plastic Film Printing Machine YT-4600 / 4800 / 41000 Series 380V
Letterpress Plastic Film Printing Machine YT-4600 / 4800 / 41000 Series 380V
Letterpress Plastic Film Printing Machine YT-4600 / 4800 / 41000 Series 380V
Letterpress Plastic Film Printing Machine YT-4600 / 4800 / 41000 Series 380V
Letterpress Plastic Film Printing Machine YT-4600 / 4800 / 41000 Series 380V
Letterpress Plastic Film Printing Machine YT-4600 / 4800 / 41000 Series 380V
Specifications
Model Number :
YT-4
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Depends on different model
Payment Terms :
L/C, T/T
Supply Ability :
4 sets / 90 days
Delivery Time :
90 days
Packaging Details :
Without package or wooden
Colors :
4
Type :
Letterpress
Max. Speed :
50 m/min
Max. Width :
960 mm
Approved :
CE, ISO
Voltage :
380V
Description

Descriptions Of YT-4 Series :

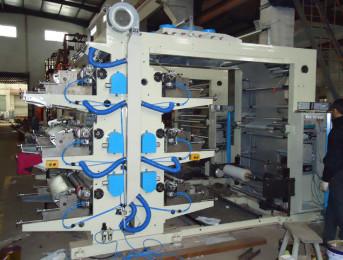

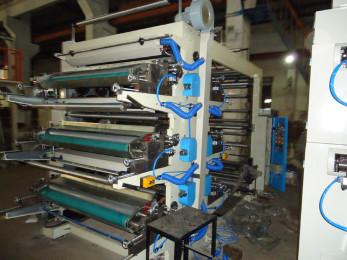

YT-4600 / 4800 / 41000 series which is a four colors flexography printing machine. Suitable for printing packing materials, paper etc., it’s a kind of ideal printing equipment for producing packing bag for food, bag etc.

The meter counter can set printing quantity according to the requirements and stop the machine automatically at the quantity or when the material is cut off. The frequency control of motor speed adapts to different printing speeds.

Main Technical Parameters
Model YT-4600 YT-4800 YT-41000
Max. Width Of Printing Material (mm) 600 800 1000
Max. Printing Width (mm) 560 760 960
Length Range Of Printed Product (mm) 190-960
Max. Dia. Of Roll Material (mm) ⌀450
Printing Speed (m/min) 5-50

Plate Thickness (mm)

Including two-sided glue paper

 2.38
Total Power (kw) 11 13 15
Weight (kg) 3000 3500 4000
Dimension LxWxH (m) 4.2x1.6x2.4 4.2x1.8x2.4 4.2x2x2.4

Letterpress Plastic Film Printing Machine YT-4600 / 4800 / 41000 Series 380V
