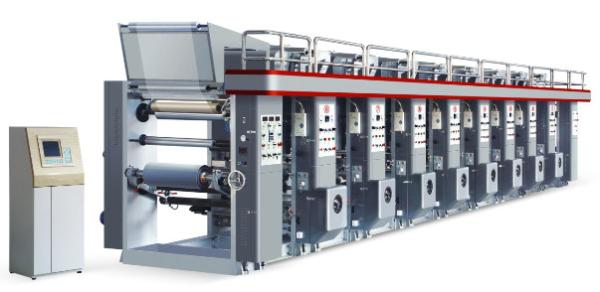

High Speed Plastic Film Printing Machine HQASY-B 800/1000 CE Approval
High Speed Plastic Film Printing Machine HQASY-B 800/1000 CE Approval
High Speed Plastic Film Printing Machine HQASY-B 800/1000 CE Approval
High Speed Plastic Film Printing Machine HQASY-B 800/1000 CE Approval
Specifications
Model Number :
HQASY-B
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Depends on different model
Payment Terms :
L/C, T/T
Supply Ability :
4 sets / 90 days
Delivery Time :
90 days
Packaging Details :
Without package or wooden
Type :
Rotogravure
Usage :
Printing
Plate Type :
Gravure
Automatic :
Automatic
Material :
BOPP, PET, PVC, PE, Paper
Warranty :
1 year
Description

Descriptions Of HQASY-B Series :

HQASY-B series is suitable for continuously printing glass paper, BOPP, PET, PVC, PE aluminum foil, paper and other multi-color and high-printable roll materials. It is widely used for high-grade printing.

Advantages of HQASY-B series :

  1. Fully automatic, computer controlled registering device and optional static detection pictures.

  2. Highly hierarchical printed patterns, with bright colors and clear lines.

  3. Automatically tension control over unwinding and feeding drawing.

  4. Perform vector frequency conversion control over rewinding and discharging drawing for more stable running.

  5. Provide with an ink circulating system and an inflatable retractable shaft.

  6. Rolling and dual station mechanism for unwinding and rewinding to automatically receive materials without shutting down the machine.

Main Technical Parameters
Model HQASY-B-800-8 Color HQASY-B-1000-8 Color
Printing Width (mm) 800 1000
Printing Length (mm) 240-1100
Printing Speed (m/min) 10-120
Accurate Registration (mm) ±0.12 ±0.12
Heating Power 72 78
Machine Weight 16800 22000
Overall Dimension 13000x2700x2600 13000x2900x2600

Product tags

pe film printing machine

,

positive film printing machine

,

film printing machine
