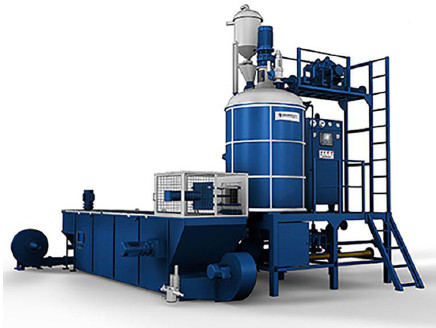

Automatic Feeding System EPS Foam Production Line Batch Pre Expander Machine
Automatic Feeding System EPS Foam Production Line Batch Pre Expander Machine
Automatic Feeding System EPS Foam Production Line Batch Pre Expander Machine
Automatic Feeding System EPS Foam Production Line Batch Pre Expander Machine
Automatic Feeding System EPS Foam Production Line Batch Pre Expander Machine
Automatic Feeding System EPS Foam Production Line Batch Pre Expander Machine
Specifications
Model Number :
FW-YF
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Depends on different model
Payment Terms :
L/C, T/T
Supply Ability :
4 sets / 90 days
Delivery Time :
90 days
Packaging Details :
Without package or wooden
Application :
Foaming
Voltage :
Customized
Density tolerance :
≦±3%
Grade :
Automatic
Warranty :
1 Year
Description

Descriptions :

Working principle of the batch type, to expand a fixed mass of raw material in a fixed volume which enables to reach easily desired density. Dosing unit to weight the right amount of EPS for the adjusted density. Filling to the vessel is done by gravity.

After the pre-expansion, you can select the silo from the display, where you want to send the expanded material. The operator can select several silos at the same time with a priority.

This model including expansion body, dryer bed, automatic feeding system, sieving devices, weighting system, blower etc.

Main Technical Parameters
Name Batch pre-expander machine Batch pre-expander machine with second expansion
Model FW-YF1100-1 FW-YF1500-1 FW-YF1500-2
Chamber size Diameter Φ1100 mm Φ1500 mm Φ1500 mm
Height 1500 mm 2200 mm 2200 mm
Volume 0.95 m3 3 m3 3 m3
Expansion rate Second time expansion -- -- 4-6 kg/m3
First back -- -- 8-12 kg/m3
First time expansion 12-30 kg/m3 12-20 kg/m3 12-20 kg/m3
Density tolerance ≦± 3% ≦± 3% ≦± 3%
Cycle time ≦120 s/cycle ≦120 s/cycle ≦120 s/cycle
Steam Entry DN40 DN50 DN50
Pressure 0.4-0.6 Mpa 0.4-0.6 Mpa 0.4-0.6 Mpa
Consumption 3.5-7 kg/cycle 6-9 kg/cycle 6-9 kg/cycle
Compressed Air Entry DN40 DN50 DN50
Pressure 0.4-0.6 Mpa 0.4-0.6 Mpa 0.4-0.6 Mpa
Consumption 0.5-0.6 m3/cycle 0.6-0.7 m3/cycle 0.6-0.7 m3/cycle
Exhaust Upper DN100 DN150 DN150
Lower DN80 DN100 DN100
Fan Outlet -- -- DN100
Throughput 4g/L (Kg/h) -- -- ≧ 280
6g/L (Kg/h) -- -- ≧ 420
8g/L (Kg/h) -- -- ≧ 560
12g/L (Kg/h) ≧ 340 ≧ 633 ≧ 633
15g/L (Kg/h) ≧ 420 ≧ 790 ≧ 790
20g/L (Kg/h) ≧ 570 ≧ 1200 ≧ 1200
25g/L (Kg/h) ≧ 710 -- --
30g/L (Kg/h) ≧ 710 -- --
Material conveying port 200 mm 200 mm 200 mm
Installed power Spindle motor 4 kw 7.5 kw 7.5 kw
Discharge fan 1.5 kw 2.2 kw 2.2 kw
Exhaust fan 1.5 kw 2.2 kw 2.2 kw
Vacuum pump 5.5 kw 5.5 kw 5.5 kw
Drying fan 3 kw 4 kw 4 kw
Material conveying fan 4 kw 7.5 kw 7.5 kw

Feeding and

mixing motor

 0.75 kw 0.75 kw 0.75 kw
Crushing motor 0.55 kw 0.55 kw 0.55 kw

Second sucking

material fan

 – – 3 kw
Total installed power 20.8 30.2 33.2
Overall dimension L 5600 mm 6000 mm 6000 mm
W 3100 mm 3700 mm 3700 mm
H 4950 mm 5600 mm 5600 mm
Machine weight 3000 kg 4000 kg 4000 kg
