Polyester Cord Rough Polyurethane Round Belt Green Color For Machine Industry
Polyester Cord Rough Polyurethane Round Belt Green Color For Machine Industry
Polyester Cord Rough Polyurethane Round Belt Green Color For Machine Industry
Polyester Cord Rough Polyurethane Round Belt Green Color For Machine Industry
Polyester Cord Rough Polyurethane Round Belt Green Color For Machine Industry
Polyester Cord Rough Polyurethane Round Belt Green Color For Machine Industry
Polyester Cord Rough Polyurethane Round Belt Green Color For Machine Industry
Polyester Cord Rough Polyurethane Round Belt Green Color For Machine Industry
Specifications
Brand Name :
YUAN AO
Model Number :
polyester cord
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10 rolls
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1,000,000 meters per Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Inner packing is plastic film .outer packing is carton
Material :
PU
Hardness :
85A-90A
Usage :
Machine Transmision
Feature :
Abrasion Resistance
M/Roll :
30m/roll 50m/roll 100m/roll 200m/roll
Type :
Timing Belt,Round Belt,V-belt,Ribbed Belt
Application :
Electric Curtain Belt,Food,Automobile,textile machine,For Ceramics & Stone/Food/Electronic/Logistics & Airport Industry
Color :
Green,White,Red,Black,Orange
Description

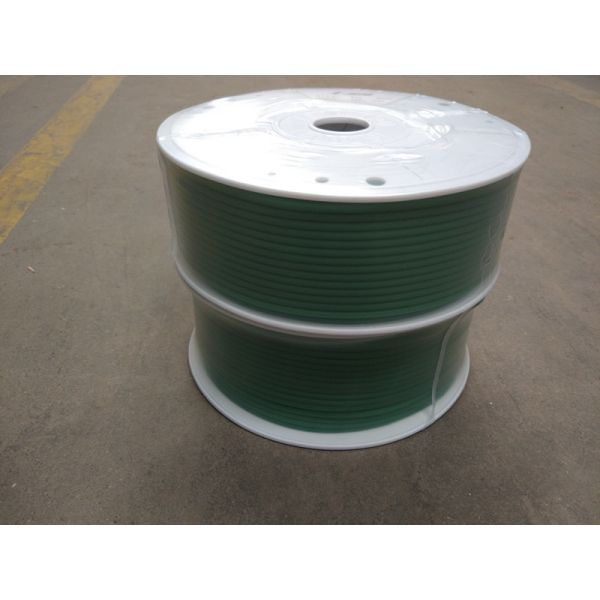

Polyester cord Rough Polyurethane Round Belt Green Color For machine Industry

Details:

(1) Thermoplastic polyurethane material, easy to be melted jointed

(2) Reinforced by Polyester Cord or Steel Cord

(3) Temperature range -35°C - 80°C

(4) Shore A hardness range 80A - 98A

(5) With excellent resistance to flex, abrasion resistance, easy jointed and other

characteristics:

Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.

(6)Round Belt:

Round Belt Dia. is from 2mm to 30mm

Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

Items NO. Least radius of gyration Stretching rate Maximum tensile rate Hardness Length of rolled
DIA(mm) In mm % Kg Lbs Shore( A) Length of rolled
2mm 0.79 20 1.5-3% 0.3 0.7 95 A 400
2.5mm 0.87 22 1.5-3% 0.4 0.9 95A 400
3mm 0.98 25 1.5-3% 0.7 1.6 90A 400
3.5mm 1.18 30 1.5-3% 0.95 2.1 90A 400
4mm 1.38 35 1.5-3% 1.2 2.7 90A 200
5mm 1.57 40 1.5-3% 2.0 4.3 90A 100
6mm 1.97 50 1.5-3% 3.2 7.0 90A 100
7mm 2.17 55 1.5-3% 4.1 9.0 90A 100
8mm 2.56 65 1.5-3% 5.0 11.0 90A 100
9mm 2.95 75 1.5-3% 6.8 15.0 90A 50
10mm 2.95 75 1.5-3% 7.7 17.0 90A 50
12mm 3.94 100 1.5-3% 12.2 27.0 90A 30
15mm 4.72 120 1.5-3% 17.7 39.0 90A 30
18mm 5.71 145 1.5-3% 25.4 56.0 90A 30
20mm 6.30 160 1.5-3% 31.3 69.0 90A 30

Service commitment:

“Good quality and good service always makes customer happy”
