CE Material Pressure Regulators With Piston Grease Pump Pressure Rlief Valve
CE Material Pressure Regulators With Piston Grease Pump Pressure Rlief Valve
CE Material Pressure Regulators With Piston Grease Pump Pressure Rlief Valve
CE Material Pressure Regulators With Piston Grease Pump Pressure Rlief Valve
CE Material Pressure Regulators With Piston Grease Pump Pressure Rlief Valve
CE Material Pressure Regulators With Piston Grease Pump Pressure Rlief Valve
Specifications
Brand Name :
SH RongXing
Model Number :
RV100
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, paypal,credit card
Supply Ability :
100 set/month
Delivery Time :
1-3 working days
Packaging Details :
Carbon Box Case
Name :
Material Pressure Regulators With Piston
Special :
Customized Grease Pump Pressure Rlief Valve
Oil inlet thread :
Inner wire G1 / 4
Oil inlet pressure :
10-40Mpa
Oil outlet pressure :
5-15Mpa
Oil outlet thread :
external thread G1 / 4
Description

Material Pressure Regulators With Piston ,Grease Pump Pressure Rlief Valve

Grease Pump Pressure Rlief Valve :

Material pressure regulators reduce the pressure of the delivered material to the required working pressure. Apart from reducing pressure (main function), these valves compensate the pulsations which occur during the material delivery with piston pumps due to the changeover position of the pump. Such pulsations would cause a short-time drop of pressure and lead to a slight reduction of the material flow. In case of small metering quantities, this might impair product quality as especially for such applications an absolutely consistent material flow must be ensured.

Product features :

Manually adjustable ,Easy maintenance
Ball sealing , Valve seat sharp edged
Technical data :
Model RV-100
Oil inlet thread inner thread G1 / 4
Oil inlet pressure 10-40mpa
Oil outlet pressure 5-15mpa
Oil outlet thread external thread G1 / 4

Industrial grease pressure reducing valve:

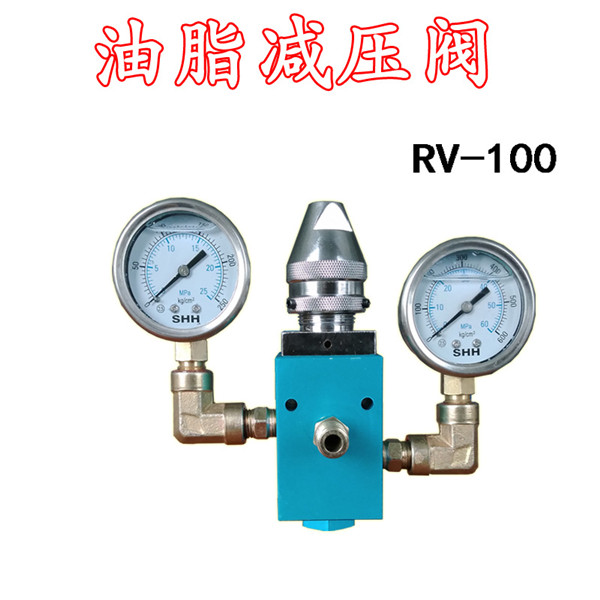

Model: RV-100

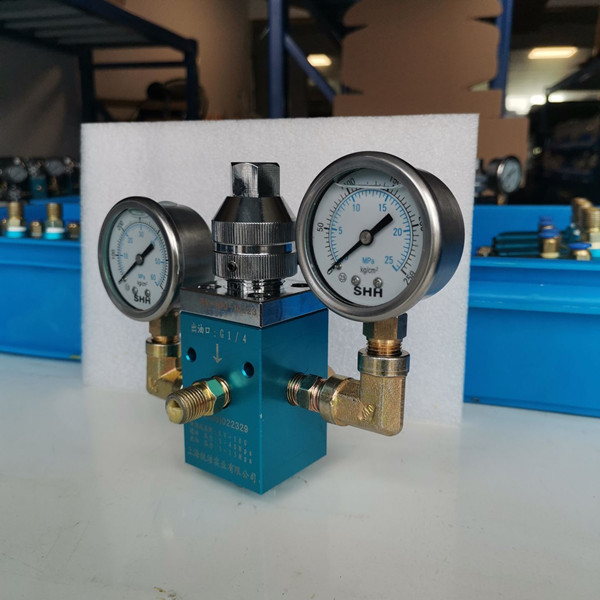

The oil inlet is at the back of the oil pressure gauge, and the oil outlet is at the front of the oil pressure gauge;

Oil inlet thread: inner thread G1 / 4

Oil inlet pressure: 10-40mpa

Oil outlet pressure: 5-15mpa

Oil outlet thread: external thread G1 / 4

CE Material Pressure Regulators With Piston Grease Pump Pressure Rlief Valve

CE Material Pressure Regulators With Piston Grease Pump Pressure Rlief ValveCE Material Pressure Regulators With Piston Grease Pump Pressure Rlief ValveCE Material Pressure Regulators With Piston Grease Pump Pressure Rlief ValveCE Material Pressure Regulators With Piston Grease Pump Pressure Rlief ValveCE Material Pressure Regulators With Piston Grease Pump Pressure Rlief Valve
