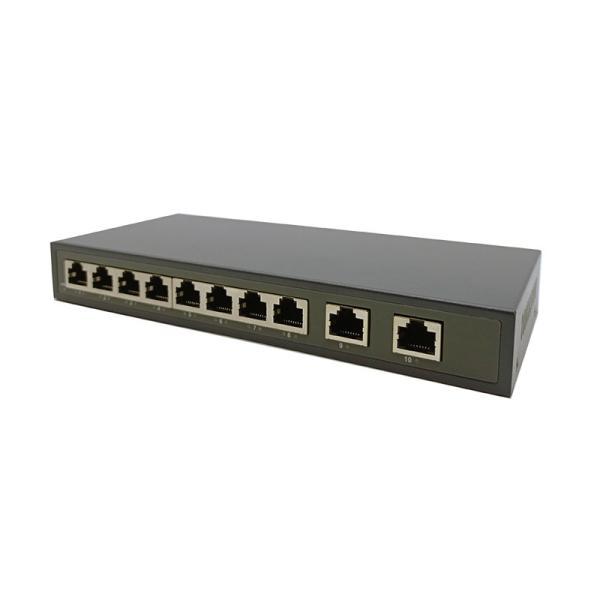

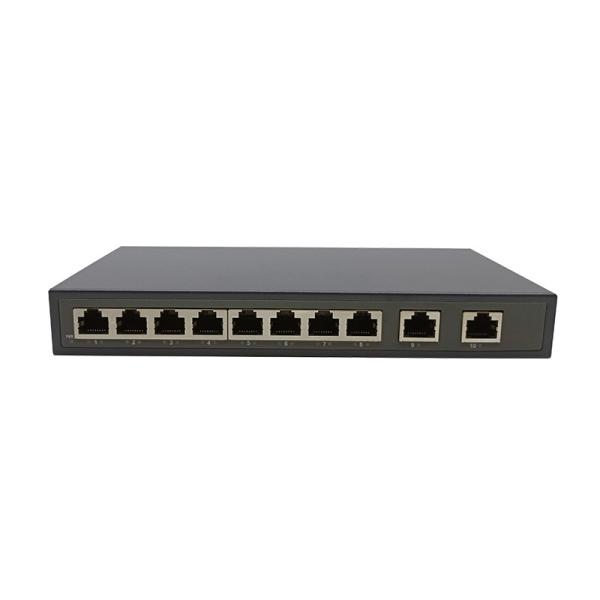

10 Port POE Ethernet Switch ZC-S2010P 8 PoE Ports Switching Capacity 20G DC Or AC
10 Port POE Ethernet Switch ZC-S2010P 8 PoE Ports Switching Capacity 20G DC Or AC
10 Port POE Ethernet Switch ZC-S2010P 8 PoE Ports Switching Capacity 20G DC Or AC
10 Port POE Ethernet Switch ZC-S2010P 8 PoE Ports Switching Capacity 20G DC Or AC
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-S2010P
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5-8 work days
Product Name :
PoE Gigabit Ethernet Switch
POE Agreement :
IEEE802.3 af/at standards
Switch Capacity :
20Gbps
MAC Address List :
8K
Working Temperature :
-10℃~55℃
Dimensions (L*W*H) :
202mmx140mmx44mm
Weight :
1.2kg
Description

ZC-2010P PoE Switch 8 PoE Ports Switching capacity 20G DC or AC

To fulfill the demand of High Power PoE for network applications with Gigabit transmission, PSE ZC-S2010P PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the ZC-S2010P features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 120-watt PoE budget on the whole system. All RJ45 copper interfaces of the ZC-S2010P support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 2 extra gigabit RJ45 for uplink.

Typical applications please refer to following picture

10 Port POE Ethernet Switch ZC-S2010P 8 PoE Ports Switching Capacity 20G DC Or AC

Features

. Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
. 8-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device
. 2-Port 10/100/1000Mbps RJ45 interface for uplink
. Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE
. Up to 8 IEEE 802.3af devices powered
. Supports PoE Power up to 15.4 watts for each PoE port
. Up to 4 IEEE 802.3at devices powered
. Supports PoE Power up to 30 watts for each PoE port
. 120-watt PoE budget
. Auto detects powered device (PD)
. Circuit protection prevents power interference between ports
. Remote power feeding up to 100m
. Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
. Features Store-and-Forward mode with wire-speed filtering and forwarding rates
. IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
. Integrates address look-up engine, supporting 8K absolute MAC addresses
. 2M packet buffer
. 10K Jumbo frame supports at 1000Mbps duplex mode
. Automatic address learning and address aging
. Made of metal, desktop size and wall-mount design

Technical Specifications

Item Description
Model ZC-S2010P

Power

Supply

 Voltage Range AC 100-240V

Power

Consumption

The device <5W,

POE power supply <120W

Network

Port

Parameter

Network Ports

1～8 Ports: 10/100/1000Mbps Ethernet port,

adaptive control

2-Port 10/100/1000Mbps RJ45 interface for uplink
Transmission Distance 1~10 Ethernet Port:0~100m
Transmission Media 1~10 Ethernet Port:Cat5e/6 standard UTP cable
POE Agreement IEEE802.3 af/at standards
PoE Power Supply Mode End-span method
PoE Power Supply Wattage Each port≤30W,Whole device<120W

Network

Switch

Specification

 Network Standard IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T
Swap Mode Store-and- forward
Switch Capacity 20Gbps
MAC Address List 8K

Status

Indicators

 Power Indicator Light One power light (green)
PoE Indicator 1~8 PoE indicator light(yellow)

Network Port LED

1~10 port ( green light on RJ45 jack) Keeps on

when normally connected, Blinking when

transceiver data

Protection Level

 Surge Immunity Level 3, executive standard:IEC61000-4-5

Electrostatic

Protection

1a touch electric discharge: level 3

1a Air discharge: level 3

Executive standard:IEC61000-4-2

Operating Environment

Working

Temperature

 -10℃~55℃

Storage

Temperature

 -40℃-85℃

Humidity(non-cong

eal)

 0~95%

Mechanical Attributes

Dimensions

(L*W*H)

 202mmx140mmx44mm
Color Black
Weight 1.2kg
Reliability Mean time >50000h
