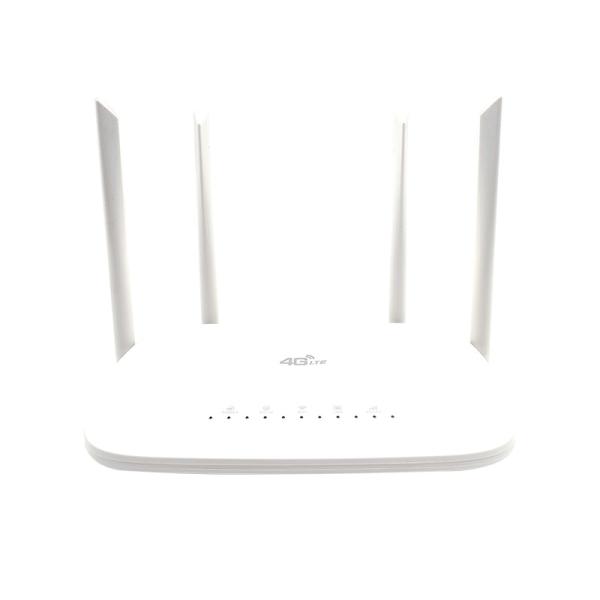

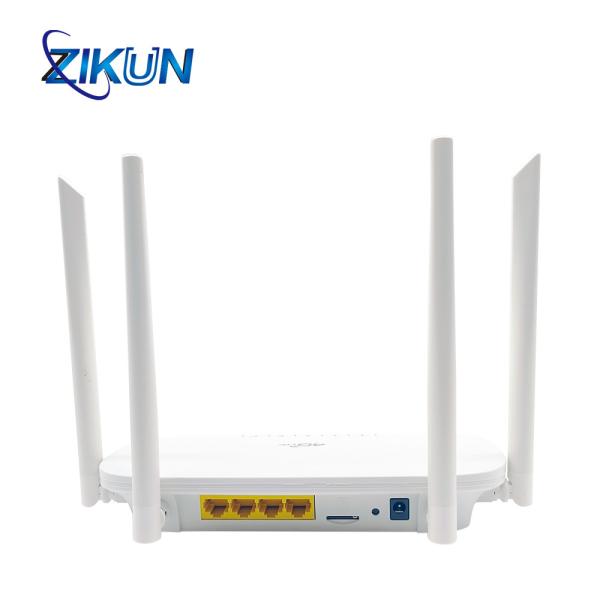

4G CPE Router CAT4 LTE Network 4G WiFi Hotspot WAN LAN ZC-CR500
4G CPE Router CAT4 LTE Network 4G WiFi Hotspot WAN LAN ZC-CR500
4G CPE Router CAT4 LTE Network 4G WiFi Hotspot WAN LAN ZC-CR500
4G CPE Router CAT4 LTE Network 4G WiFi Hotspot WAN LAN ZC-CR500
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-CR500
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-8 work days
Packaging Details :
Carton
Product :
LTE CAT4 CPE Router
Wired Network standards :
IEEE802.3,IEEE802.3u
RAM :
32MB
FLash :
16MB
Antenna :
Antenna gain: 5 d Bi Four external antenna：2 X wifi antenna ，2 X 4G LTE antenan
4G module :
UE Category：CAT4； 150Mpbs downstream；50Mb ps upst ream；
Dimensions (H x W x D) :
3.5CM*22CM*15.5CM
Description

4G CPE Router CAT4 LTE network 4G WiFi Hotspot WAN LAN ZC-CR500

Product Description

ZC-CR500 is a 4G wireless router that can achieve WiFi coverage.Using mainstream chip solution with low power consumption, high cost performance, high-end technology, high integration and other advantages.it supports TD-LTE / FDD LTE network standards for ALL NETCOM.it support WAN / LAN / WIFI ACCESS CAPACITY, and PLUG AND PLAY. The product is stable and reliable.Its theoretical speed can reach up to 150Mbps, making it easy to play games, watch ultra clear videos without stuttering, and live streaming smoothly with minimal latency.

Highlights

  • LTE CAT4
  • High gain 2*2 MIMO antennas.
  • TR069 remote management and FOTA support.
  • Easy to set up and manage.
  • CPE comes with a centralized software to help users easily manage all devices in the network.
  • Usage scenario: Indoor, Home, office, etc.

4G CPE Router CAT4 LTE Network 4G WiFi Hotspot WAN LAN ZC-CR500
Easy to Use
Insert the SIM card, turn on the router , you can share the internet with multiple users
or multiple devices and enjoy 4G Internet
Specifications
Hardware specifications
CPU ZX297520V3
RAM 32MB
FLash 16MB
Wired Network standards IEEE802.3,IEEE802.3u
Ethernet interface 1*10/ 100Mbps WAN/ LAN port ,3*10/100Mb ps LAN port
Antenna

Antenna gain: 5 d Bi

Four external antenna:2 X wifi antenna ,2 X 4G LTE antenan
4G module

UE Category:CAT4； 150Mpbs downstream；50Mb ps upst ream；

LTE TDD:B38/ B39/B40/ B41;

LTE FDD:B1/ B3/ B5；
SIM Card Micro Sim Card (15mmX12mm)
Button Reset Button *1
Power 12V/1A DC
LED light POWER/Online/WIFI/ LAN/4G LTE
Software specifications
Working mode • WAN mode :PPPoE/ DHCP/Static
Network

• IPv4 ,IPv6 ,IPv4/ IPv6 dual stack；

• NAT mode/ Dynamic NAT ,DHCP Server ,NTP Client ,HTTP Server；

• Manual APN configuration ,DNS modification
Security • MAC/ IP/ URL Filter ,Firewall ,Remote management
WLAN specifications
Wi Fi Chip • REL8192ES
Wireless Standard • IEEE 802.11 b/g/n@2.4G
Wireless Rate • 300Mbps ,2T2R
Output Power • 18 d Bm
Receiving sensitivity • -93d Bm
Authentication Type •WPA- PSK,WPA2- PSK,WPA- PSK/WPA2-PSK
Other specifications
Dimensions (H x W x D) 3.5CM*22CM*15.5CM(without external antenna and pads)
Weight About 300g
Working temperature 0o C ~ -40o C
Working humidity 10% RH to 90% RH (non-condensing)
Storage humidity 5% RH to 90% RH (non-condensing)
