ZC-CR502 4G LTE Router CPE Router 1WAN 3LAN With 5 DBi Antennas
ZC-CR502 4G LTE Router CPE Router 1WAN 3LAN With 5 DBi Antennas
ZC-CR502 4G LTE Router CPE Router 1WAN 3LAN With 5 DBi Antennas
ZC-CR502 4G LTE Router CPE Router 1WAN 3LAN With 5 DBi Antennas
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-CR502
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-8 work days
Packaging Details :
Carton
Description

ZC-CR502 4G LTE Router CPE Router 1WAN 3LAN with 5 dBi Antennas

Product Description

ZC-CR502 supports advanced Gigabit networking and dual bands Wi-Fi AP functionalities. It enables wide service coverage and provides high data throughput and networking features to customers who need easy broadband access, hot-spot Wi-Fi connectivity.

ZC-CR502 is a highly advanced LTE indoor multi-service product solution specifically designed to meet integrated data, and 802.11 a/b/g/n/ac dual-band Wi-Fi access needs for residential, business and enterprise users.

Highlights

  • 4G Indoor CPE
  • 4G LTE FDD
  • LTE CAT4
  • 802.11a/b/g/n/ac,64 Users
  • Usage scenario: Indoor, Home, office, etc.

ZC-CR502 4G LTE Router CPE Router 1WAN 3LAN With 5 DBi Antennas

Flexible Access Scenario

Three internet meters, travel at any time, easy to connect, always keep in touch with the world.When 4G wireless and wired network access are simultaneously available, wired access is preferred

ZC-CR502 4G LTE Router CPE Router 1WAN 3LAN With 5 DBi Antennas

Specifications

Hardware specifications
CPU MT7628
RAM 64MB DDR
FLash 8MB
Wired Network standards IEEE802.3,IEEE802.3u

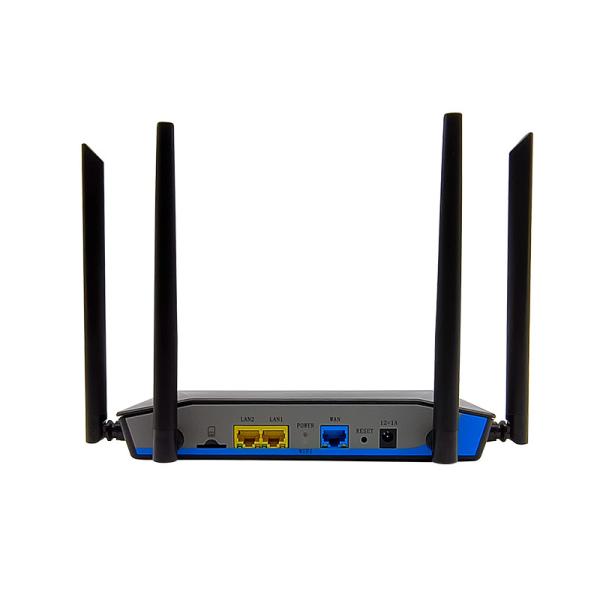

Ethernet interface 1*10/ 100Mbps WAN port ,2*10/100Mb ps LAN port
Antenna

Antenna gain: 5 d Bi

Four external antenna:2 X wifi antenna ,2 X 4G LTE antenan
4G module

SIMCOM LTE CAT4 A7605C: 150Mpbs downstream；50Mb ps upstream；

LTE TDD:B34/ B38/B39/ B40/ B41;

LTE FDD:B1/ B3/ B5/ B8；

GSM:900/1800MHz
SIM Card Standard SIM Card (25mm*15mm)
Button Reset Button *1
Power 12V/1A DC
LED light LED*2( POWER ,WIFI )
Software specifications
Working mode • WAN mode :PPPoE/ DHCP/Static ；Wireless relay
Network

• LAN/WAN tanslate ,DHCP Server ,VLAN ,Qos ,DDNS

• VPN:PPTP Client/L2TP Client；Static route ；DMZ
Security • MAC/ IP/ DNS Filter ,WPS ,Wi Fi Plan ,Remote management
Others • Time zone , Firmware Upgrade , backup and recovery , password management ,WatchCat ,Scheduled restart
Diagnostic tools • ping ,Traceroute ,NSLOOKUP
WLAN specifications
Wireless Standard • IEEE 802.11 b/g/n@2.4G
Wireless Rate • 300Mbps ,2T2R
Output Power • 20dBm
Receiving sensitivity • -92d Bm
Authentication Type •WPA- PSK,WPA2- PSK,WPA- PSK/WPA2-PSK
Other specifications
Dimensions (H x W x D) 3.6CM*26.5CM*16CM(without external antenna and pads)
Weight About 250g
Working temperature -40°C ~ -80°C
Working humidity 10% RH to 90% RH (non-condensing)
Storage humidity 5% RH to 90% RH (non-condensing)
