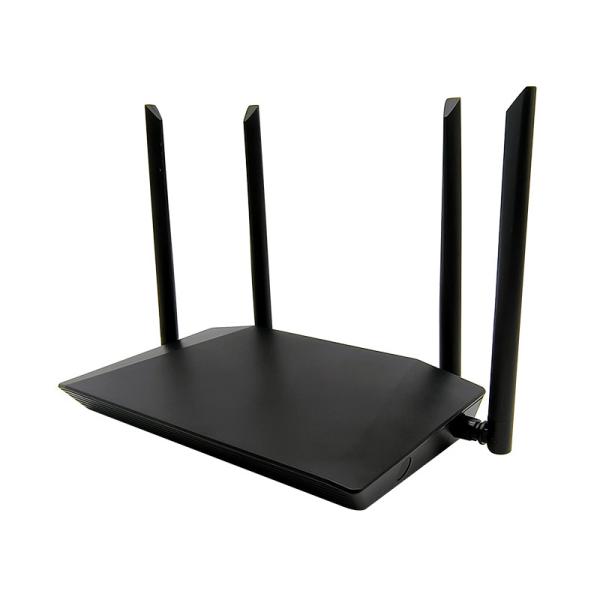

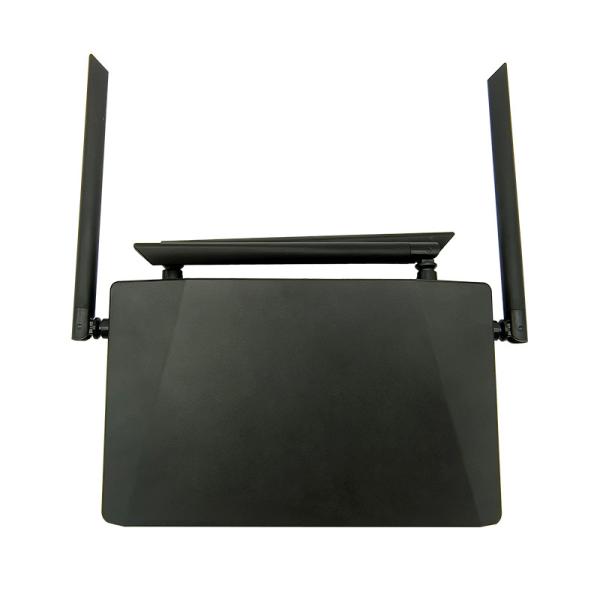

ZC-CR502 4Antenna 4G LTE Router 1FE WAN 2FE LAN 2.4G WiFi Zikun

Specifications

Brand Name :

zikun

Model Number :

ZC-CR502

Certification :

ANATEL

Place of Origin :

CHINA

MOQ :

Price :

$22.7-$24.7

Description

Introduction

ZC-CR502 is a 4G wireless router that can achieve WiFi coverage.Using mainstream chip solution with low power consumption, high cost performance, high-end technology, high integration and other advantages.it supports TD-LTE / FDD LTE /GSM network standards for ALL NETCOM.it support WAN / LAN / WIFI ACCESS CAPACITY, and PLUG AND PLAY. The product is stable and reliable.Its theoretical speed can reach up to 150Mbps, making it easy to play games, watch ultra clear videos without stuttering, and live streaming smoothly with minimal latency.

Specifications

Hardware specifications
CPU	MT7628
RAM	64MB DDR
FLash	8MB
Wired Network standards	IEEE802.3,IEEE802.3u
Ethernet interface	110/ 100Mbps WAN port ,210/100Mb ps LAN port
Antenna	Antenna gain: 5 d Bi Four external antenna:2 X wifi antenna ,2 X 4G LTE antenan
4G module	SIMCOM LTE CAT4 A7605C: 150Mpbs downstream；50Mb ps upstream； LTE TDD:B34/ B38/B39/ B40/ B41; LTE FDD:B1/ B3/ B5/ B8； GSM:900/1800MHz
SIM Card	Standard SIM Card (25mm*15mm)
Button	Reset Button *1
Power	12V/1A DC
LED light	LED*2( POWER ,WIFI )
Software specifications
Working mode		• WAN mode :PPPoE/ DHCP/Static ；Wireless relay
Network		• LAN/WAN tanslate ,DHCP Server ,VLAN ,Qos ,DDNS • VPN:PPTP Client/L2TP Client；Static route ；DMZ
Security		• MAC/ IP/ DNS Filter ,WPS ,Wi Fi Plan ,Remote management
Others		• Time zone , Firmware Upgrade , backup and recovery , password management ,WatchCat ,Scheduled restart
Diagnostic tools		• ping ,Traceroute ,NSLOOKUP
WLAN specifications
Wireless Standard		• IEEE 802.11 b/g/n@2.4G
Wireless Rate		• 300Mbps ,2T2R
Output Power		• 20dBm
Receiving sensitivity		• -92d Bm
Authentication Type		•WPA- PSK,WPA2- PSK,WPA- PSK/WPA2-PSK
Other specifications
Dimensions (H x W x D)		3.6CM26.5CM16CM(without external antenna and pads)
Weight		About 250g
Working temperature		-40°C ~ -80°C
Working humidity		10% RH to 90% RH (non-condensing)
Storage humidity		5% RH to 90% RH (non-condensing)
