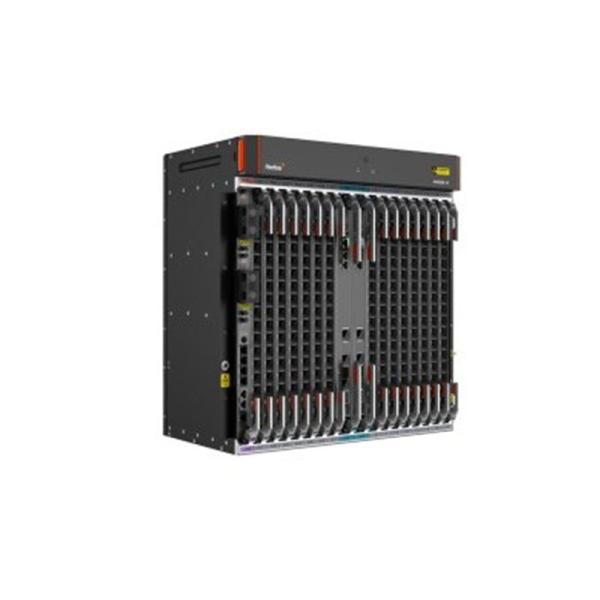

Fiberhome Olt An6000-15 With 4Ge Hsua Main Control Power Piba Gpon Epon Olt
Fiberhome Olt An6000-15 With 4Ge Hsua Main Control Power Piba Gpon Epon Olt
Fiberhome Olt An6000-15 With 4Ge Hsua Main Control Power Piba Gpon Epon Olt
Fiberhome Olt An6000-15 With 4Ge Hsua Main Control Power Piba Gpon Epon Olt
Specifications
Brand Name :
FiberHome
Model Number :
AN6000-15
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-8 work days
User-side Interface :
GPON/XG(S)-PON/XG(S) Combo/TWDM-PON/WDM-PON/P2P
DC voltage rang :
-48V
Dimensions of the subrack H/W/D :
486 mm x 480 mm x 282 mm
Service Slots :
15
Power Supply :
35 ~+70
Application :
FTTH FTTB FTTX Network
Description

AN6000-15 Overview

AN6000-15 are the next generation OLT platform which have ultra broadband capability for PON smooth evolution. Their distributed architecture design can support high density GPON, XG(S)-PON, XG(S)-PON Combo, TWDM-PON, WDM-PON and P2P card, will bring higher bandwidth and enhance capacity for access network. Cloudization and virtualization can also be implemented on them. All of these will improve user experience, reduce long-term investment and maintenance costs of operators.

Product Details

AN6000-15 provides these key features and benefits:

Reliable Hardware Design

·Mounted in 19/21 inch rack, satisfying indoor or outdoor deployment.

·High reliability and redundancy design to ensure system reliability and green design.

·Help reduce equipment power consumption and noise emission.

High Overall Performance

·High-density xPON service card, satisfying the high-density subscription requirement.

·Tbps level switching capacity and 4*10GE/GE uplink ports integrated in core & control card, 8*10GE/GE or 1*100GE per independent uplink card.

·Supporting type B/C protection switching in PON port and LACP/MSTP/ERPS protocol in network side to ensure network reliability.

·Time and clock synchronization, supporting 1588V2, SYNC-E and 1PPS+TOD.

·Support L3 protocols OSPF, BGP, IS-IS, etc., and MPLS.

·Support SDN/NFV architecture, facing the cloud network.

·Distributed architecture design.

Integrated access of Multiple PON Technology

·Supporting GPON/EPON/XG(S)-PON/XG(S)-PON COMBO/AGILE PON access.

·Smooth evolution to NG-PON. Integrating TWDM-PON and WDM-PON technology in one chassis, co-existent with existing ODN network.

Compare to Similar Items

Table 1 shows the comparison.

Type AN6000-2 AN6000-7 AN6000-15
Dimensions of the subrack H/W/D 44.4mm*443mm*220mm (without mounting ears) 266mm x 480mm x 254mm 486 mm x 480 mm x 282 mm
Power

DC voltage range: -38.4V DC to -57.6V DC

AC voltage range: 90V AC to 290V AC

 DC voltage rang: -48V DC voltage rang: -48V
User side interfaces GPON GPON/XG(S)-PON/XG(S) Combo/TWDM-PON/WDM-PON/P2P GPON/XG(S)-PON/XG(S) Combo/TWDM-PON/WDM-PON/P2P

AN6000-15 Specification

AN6000-15 Specification
Dimensions of the subrack H/W/D 486 mm x 480 mm x 282 mm
User-side Interface GPON/XG(S)-PON/XG(S) Combo/TWDM-PON/WDM-PON/P2P
Power Supply DC -48V
Service Slots 15
