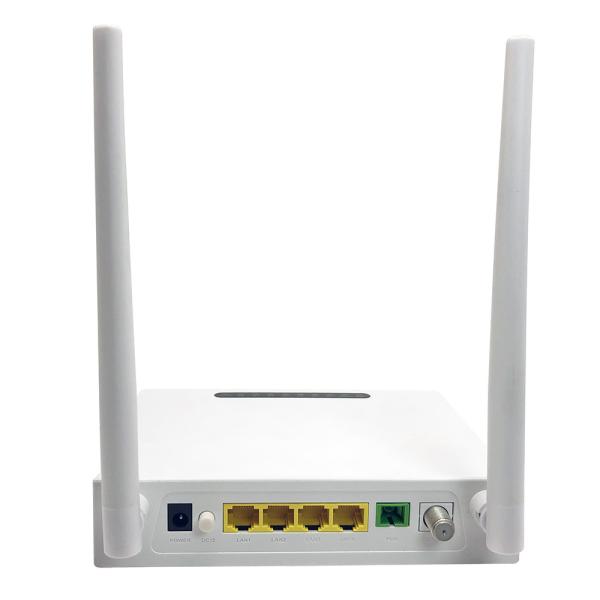

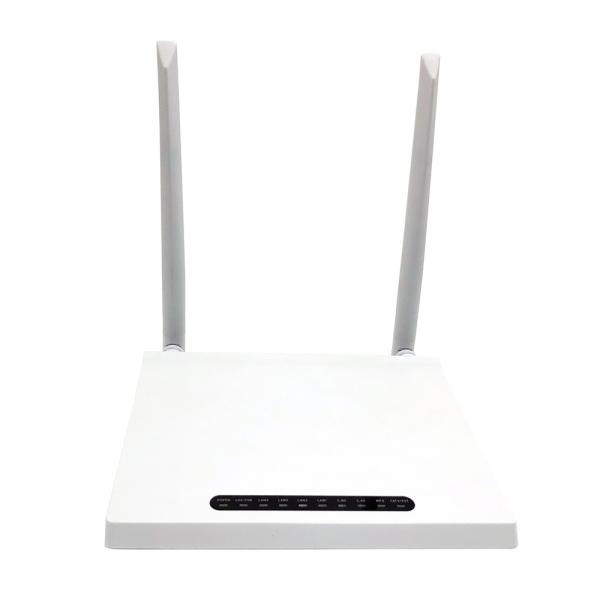

Dual Mode XPON GPON ONT CATV 1GE 3FE WIFI WDM AGC ZIKUN ZC-500WT
Dual Mode XPON GPON ONT CATV 1GE 3FE WIFI WDM AGC ZIKUN ZC-500WT
Dual Mode XPON GPON ONT CATV 1GE 3FE WIFI WDM AGC ZIKUN ZC-500WT
Dual Mode XPON GPON ONT CATV 1GE 3FE WIFI WDM AGC ZIKUN ZC-500WT
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-500WT
MOQ :
1
Price :
25$
Payment Terms :
T/T
Delivery Time :
5-15 work days
Type :
XPON ONU
Antena gain :
5 dBi
User Network Interface (UNI ) :
1GE+3FE+1CATV+WIFI
WLAN :
2 × 2 MIMO
Management :
OMCI/OAM/TR069/Web UI
Antenna :
Two external antenna
WDM :
1490/ 1310nm+ 1550nm
Description
ZIKUN ONU Factory manufacturer ZC-500WT GPON XPON CATV ONT with 1GE 3FE WIFI WDM AGC
ZC-500WT is a dual-mode(XPON) optical network terminal (ONT) supports automatic switching between GPON and EPON modes, is designed for the fiber to the home (FTTH) scenarios. ZC-500WT complies with the ITU-T G.984/G.988 standard and IEEE802.3ah Standard, It has 10Mbps/100Mbps/1000Mbps adaptive GE interfaces, complying with IEEE802.3-2005 standards. The device offers 1* GE+3FE,1CATV RF and 2*2 11n wifi. It can provide serivces for Catv Video,IPTV Video and highspeed internet access.
Dual Mode XPON GPON ONT CATV 1GE 3FE WIFI WDM AGC ZIKUN ZC-500WT
GPON interface (NNI ):1 x PON interface+WDM+AGC
Optical port
GPON/EPON mode adaptive
ITU-T G.984/G.988 GPON standards,Support for backward compatibility with IEEE 802.3ah EPON
Single mode fiber
Optical connector
SC/APC
Receiving Sensitivity
-28dBm；CATV Optical Receiver(1550nm):-18dBm
Overload optical power
-8 dBm；CATV Optical Receiver(1550nm):+2dBm
Transmitting Optical Power
0.5~4dBm
Transmit rate
GPON:2.488Gbps downstream; 1.244Gbps upstream
EPON:1.25Gbps downstream；1.25Gbps upstream
Wavelength
Receiving(DOWN):1490nm；Transmitting(UP):1310nm
Third party wavelength(CATV Optical Receiver):1550nm
WDM
1490/1310nm+1550nm
AGC
+2~-7dBm/-4~-13dBm/-5~-14dBm
User Network Interface (UNI ):1GE+3FE+1CATV+WIFI
Ethernet Port
Ethernet port-based VLAN tags and tag removal
VLAN transparent and aggregation
MAC address learning
Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
WLAN
IEEE 802.11 b/g/n
2 × 2 MIMO
Antenna gain: 5 dBi,two external antenna
Air interface rate:300 Mbit/s
Multiple SSIDs
CATV Port
CATV Interfce:RF output,－5 Male F-Type Connector
RF frequency:47MHz~1000MHz
RF output lever:≥ 80dBuV(-7dBm optical input)
Optical reflection loss: ≥45dB
MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
RF impedance:75Ω
Product Function
GPON
ITU-T G.984.1-4
ITU-T G.988
32 TCONTs /256GEM ports
8 Egress queues per TCONT at least
VLAN or VLAN plus priority gem mapping mode
Performance monitoring: eth/Gem port
Dying gasp
Layer 2 Features
MAC learning (SVL)/aging
Support max frame length to 1518 bytes
VLAN tagging for untagged packets
Support VLAN 1-4094
VLAN transparent/translation
Layer 3 Features
PPPoE/Static IP/DHCP/Static IP/Bridge
NAT/NAPT
Port forwarding
ALG, UPnP
DDNS/DNS server/DNS client
IPv6/IPv4 dual stack,and DS-Lite
Static/Default routes
Multiple services on one WAN port
RIPv2 with passive mode
Multicast
IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376)
IGMP snooping and IGMP Proxy
MLD v1/v2
Qos
Support 8 Queues with Strict Priority
Ethernet port rate limitation
802.1ppriority
SP/WRR/SP+WRR
Service flow classification
Security
Firewall
MAC/Port/URL Filter
Management
OMCI/OAM/TR069
Web UI(Http by LAN-Side and WAN-Side)
Telnet(Telnet by LAN-Side and WAN-Side)
Manage the CATV RF Port in OLT(Disablel/Enable the CATV RF Port)
SSH management with CLI commands
Physical Performance
Weight
About 400g
Working temperature
0°C ~ 45°C
Working humidity
5% RH to 95% RH (non-condensing)
Power adapter input
100–240 V AC, 50 / 60 Hz
System power supply
12V DC, 1 A
Power consumption
<6W
System Configuration
Main Chip
ZTE ZXIC ZX279127@800Mhz
RAM
256MB
Flash
256MB
WiFi Chip
MTK MT7603
