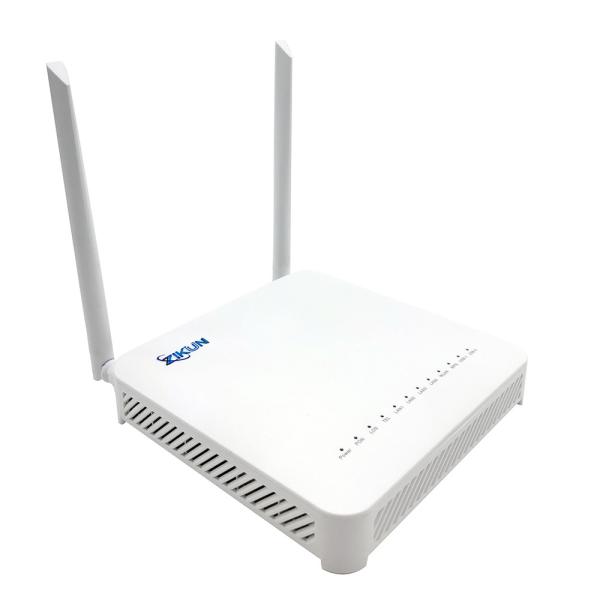

2USB 4GE 1POTS GPON ONU Device WiFi Dual Band ONT Optical Network
2USB 4GE 1POTS GPON ONU Device WiFi Dual Band ONT Optical Network
2USB 4GE 1POTS GPON ONU Device WiFi Dual Band ONT Optical Network
2USB 4GE 1POTS GPON ONU Device WiFi Dual Band ONT Optical Network
Specifications
Brand Name :
zikun
Model Number :
ZC-521G
MOQ :
1
Price :
15$
Payment Terms :
T/T
Delivery Time :
5-15 work days
Product name :
GPON ONU
Ports :
4GE+1POTS+2USB+2.4G&5G WiFi
Type :
ONU
Wifi :
2.4G&5G WiFi
Optical connector :
SC/UPC
Use :
FTTH
Description

NEW ZIKUN brand best price ZC-521G GPON ONU 4GE 1POTS Dual-band WiFi 2USB ONT

ZC-521G comes with the dualband Wi-Fi, can support a combined wireless data up to 1167Mbps transfer rate. With 867Mbps wireless speed over 5GHz band and 300Mbps over the 2.4GHz band. It can be the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

ZC-521G Provides four gigabit LAN ports, allowing ultra-high-speed Internet, and 4K IPTV High-traffic business, can make full use of the fiber access to provide best user experience.

2USB 4GE 1POTS GPON ONU Device WiFi Dual Band ONT Optical Network

Main Features

• Ideal solution for FTTH solution

• 2.4G&5G Wi-Fi, 1200Mbps wireless speed

• 2* 5 dBi high gain antennas

• 4* GE ports

• 2*USB ports

• VoIP/IPTV supported

• High compatible to OLTs

• IPv6 supported

GPON interface (NNI) :1 x GPON interface
Optical port ITU-T G.984 GPON standards ,Flexible mapping between GEM Port and TCONT
Optical connector SC/ UPC
Receiving Sensitivity -27d Bm
Overload optical power -8 d Bm
Transmitting Optical Power 0.5~5dBm
Transmit rate 2.488Gbps downstream; 1.244Gbps upstream
Wavelength Receiving (DOWN) :1490nm；Transmitting (UP) :1310nm
User Network Interface (UNI) :4GE+1POTS+2.4G&5G WIFI+2USB

Ethernet Port

 . Ethernet port-based VLAN tags and tag removal
. VLAN transparent transmission
. Q-in-Q
. MAC address learning
. Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

POTS Port

 . SIP/ H.248
. Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls.
. G.711A/U, G.729 and G.722 encoding/decoding
. T.30/T.38/G.711 fax mode
. SDP protocol (RFC 2327 and RFC 4566)
. DTMF

WLAN

 . IEEE 802.11 b/g/n (2.4G)
. IEEE 802.11 a/n/ac (5G)
. 2 × 2 MIMO (2.4G&5G)
. Antenna gain: 5 d Bi ,double external antenna
. 2.4G&5G concurrent
. Air interface rate:300 Mbit/s (2.4G); 867 Mbit/s(5G)
. WMM
. Multiple SSIDs
. WPS

USB port

 . USB2.0 ,USB backup
. FTP-based network storage
. File/Print sharing based on SAMBA
. DLNA DMS/ UPnP AV (media server )

2USB 4GE 1POTS GPON ONU Device WiFi Dual Band ONT Optical Network
