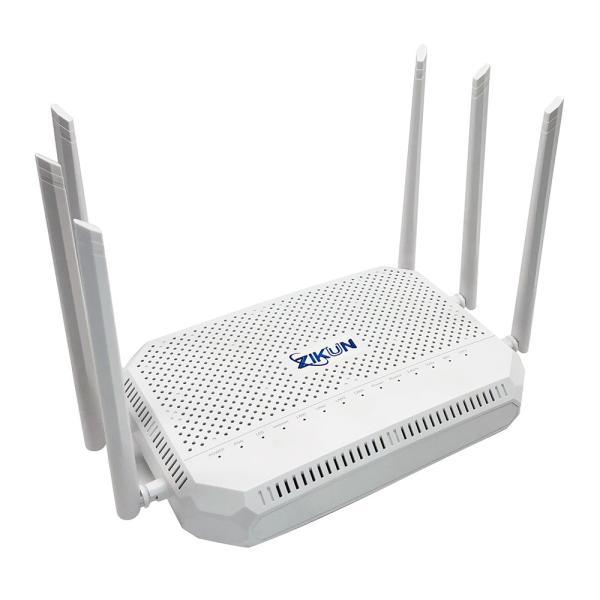

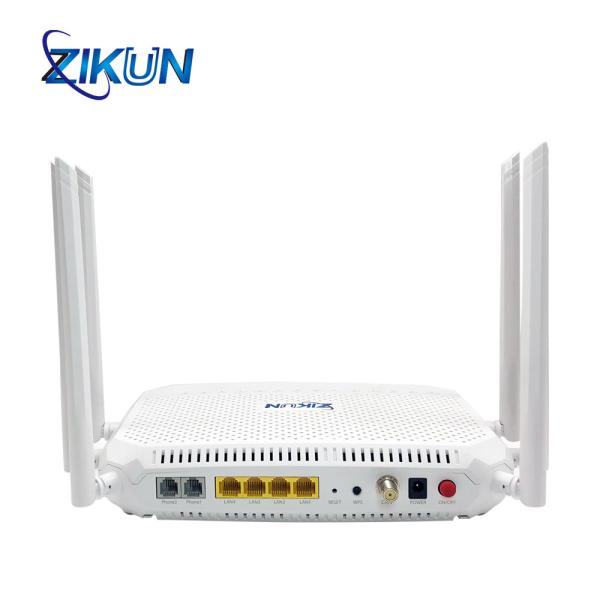

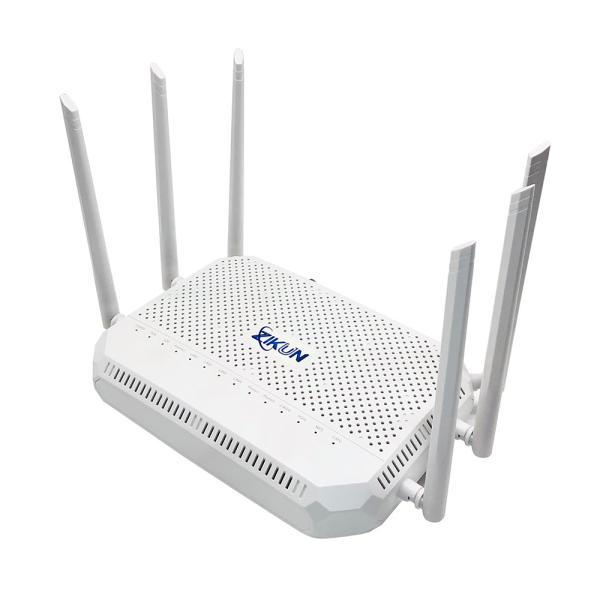

4GE 2POTS XPON ONU CATV SC / APC Connector Six Antenna With RF AC WIFI
4GE 2POTS XPON ONU CATV SC / APC Connector Six Antenna With RF AC WIFI
4GE 2POTS XPON ONU CATV SC / APC Connector Six Antenna With RF AC WIFI
4GE 2POTS XPON ONU CATV SC / APC Connector Six Antenna With RF AC WIFI
4GE 2POTS XPON ONU CATV SC / APC Connector Six Antenna With RF AC WIFI
4GE 2POTS XPON ONU CATV SC / APC Connector Six Antenna With RF AC WIFI
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-521T
MOQ :
1
Price :
59$
Payment Terms :
T/T
Delivery Time :
5-15 work days
Optical connector :
SC/APC
User Network Interface :
4GE+2POTS+2.4G&5G WIFI+1CATV
Receiving Sensitivity :
-28dBm
Manage :
OMCI/OAM/TR069/Web UI
WLAN :
2 × 2 MIMO (2.4G);4 × 4 MIMO (5G)
Antenna gain :
5 dBi ，6* external antenna
Air interface rate :
300 Mbit/s (2.4G); 1733 Mbit/s(5G)
Description

New arrival ZC-521T XPON CATV ONU with RF AC WIFI

1. English firmware


2. ZC-521T XPON ONU with 4GE+2POTS +2.4G&5G WIFI +CATV


3. Compatible with OLT Huawei /ZTE/FIBERHOME


4. Customized LOGO is available

Model
ZC-521T New
Optical port
GPON/EPON mode adaptive
ITU-T G.984 GPON standards,Support for backward compatibility with
IEEE 802.3ah EPON
Single mode fiber
Optical connector
SC/APC
Receiving Sensitivity
-28dBm
Overload optical power
-8 dBm
Transmitting Optical Power
0.5~5dBm
Transmit rate
GPON:2.488Gbps downstream; 1.244Gbps upstream
EPON:1.25Gbps downstream;1.25Gbps upstream
Wavelength
Receiving(DOWN): 1490nm;Transmitting(UP): 1310nm
Authentication
consistent with the SN or Password authentication defined in G.984.3;
LOID authentication;MAC authentication
AGC
-9~+2dBm
