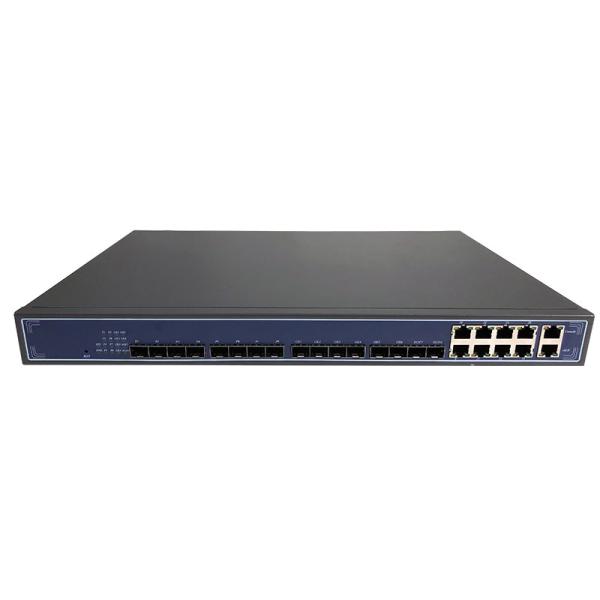

Fiber Optic EPON OLT 8 Port FTTH FTTX 20km Distance Zikun ZC-1008G
Fiber Optic EPON OLT 8 Port FTTH FTTX 20km Distance Zikun ZC-1008G
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-1008G
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Place of Origin :
China
Type :
EPON OLT
Management Ports :
1*10/ 100BASE-T out-band port, 1*CONSOLE port
Dimension :
445mm×321mm×46mm (L×W×H)
Pon port :
8 GPON ports
Distance :
20km
Description
Fiber Optic EPON OLT 8 Port FTTH FTTX 20km Distance Zikun ZC-1008G
ZC-1008G EPON OLT provides 8 EPON ports, 8GE copper RJ45 Ethernet ports , 6 SFP(GE) and
2*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new
generation of broadband and multi-service access OLT devices oriented towards the service-integrated
network.
ZC-1008G OLT integrates with network security, supports data, voice and video, and provides continuous
forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum
running time.
Independent 1U chassis equipment with 8 PON ports, each port supports up to 128 ONUs, the whole
device supports up to 1024 ONUs. Small size and high density OLT, easy to install, convenient, flexible and
easy to deploy high performance broadband access network. It can be deployed in compact room
environment, and can also be used for “Triple-Play” applications.
Technical Specifications

Parameter Specifications
PON standard EPON ITU-T G.984.x

PON interface

 16*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30d Bm(Saturation Optical - 12d Bm). Power,Transmitting optical power: +3 ~ +7d BmTransmission distance: 20KM. Max splitting ratio1:128
Upstream 2.488G ,Downstream 1.244G
Wavelength Tx1310nm, Rx 1490nm

Uplink

 8*copper Ethernet ports 10/100/1000M auto-negotiation
6*GE(SFP)
2*10GE(SFP+)
Layer 3 Support static route, RIP v1/v2, OSFP v2, ARP proxy
Management Ports 1*10/ 100BASE-T out-band port, 1*CONSOLE port
Management Mode SNMP, Telnet, CLI, WEB
VLAN Tag / Un-tag,VLAN transmission,QinQ
Operating condition Operating temp: -5 C~ +55C
Storing condition Storing temp: -40C ~ +85C
Humidity 5~90%(non-condensing)
Power consumption ≤45W
Dimension 445mm×321mm×46mm (L×W×H)
Net weight 4.55Kg
