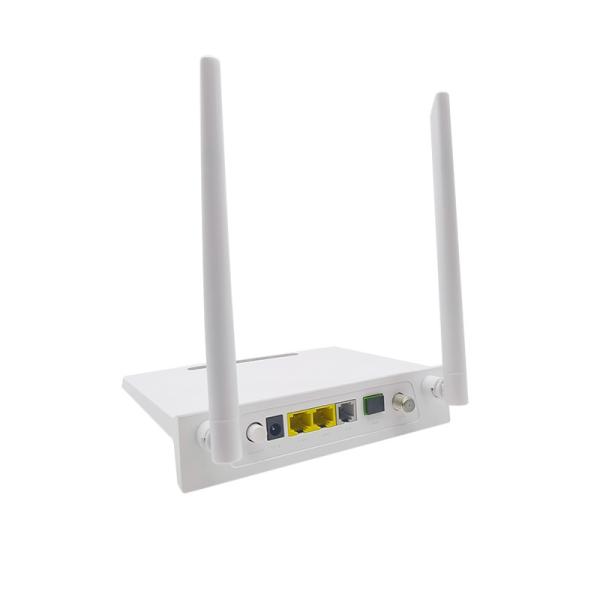

1GE 1FE 1VoIP XPON ONU WIFI CATV WDM AGC GPON ONT With 2 Antennas
1GE 1FE 1VoIP XPON ONU WIFI CATV WDM AGC GPON ONT With 2 Antennas
1GE 1FE 1VoIP XPON ONU WIFI CATV WDM AGC GPON ONT With 2 Antennas
1GE 1FE 1VoIP XPON ONU WIFI CATV WDM AGC GPON ONT With 2 Antennas
1GE 1FE 1VoIP XPON ONU WIFI CATV WDM AGC GPON ONT With 2 Antennas
1GE 1FE 1VoIP XPON ONU WIFI CATV WDM AGC GPON ONT With 2 Antennas
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-512T
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
High Light :
XPON ONU, CATV ONU
Product :
1GE+1FE+1VoIP+WIFI+CATV+WDM+AGC
Type :
XPON ONU
PON Port :
1 G/EPON port(EPON PX20+ and GPON Class B+)
Wavelength :
Upstream: 1310nm; Downstream: 1490nm
Power Supply :
DC 12V/1.5A,12W
Description
ZC-512T GPON ONT 1GE 1FE WIFI CATV ZIKUN XPON ONU With 2 Antennas

Product Overview

ZC-512T G/EPON ONT terminal includes 1GE+1FE, 2.4GHz WiFi and VoIP port for storage. It supports Dual modes which can work with both EPON and GPON OLT device. In addition, ZC-512T support CATV interface for Video Service and remote control by Major OLT.ZC-512T can also be applied to a wide temperature environment, and also has a powerful firewall .

ZC-512T G/EPON 1GE+1FE+1VoIP+WiFi+CATV+WDM+AGC ONU is perfect for usage of telecom operators, FTTO (office), FTTD (Desk), FTTH(Home) , SOHO, video surveillance and other requirements. The ZC-512T is based on the mature Gigabit XPON technology, highly reliable and easy to manage, with guaranteed QOS for different services. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.SFP with SC/PC ConnectorTransceiver.

GPON/EPON 1GE+1FE+1VoIP+WiFi+CATV+WDM+AGC ONU Terminal

1GE 1FE 1VoIP XPON ONU WIFI CATV WDM AGC GPON ONT With 2 Antennas

Feature

  • Supports Dual Mode (can access GPON/EPON OLT).
  • Supports GPON G.984/G.988 standards and IEEE802.3ah.
  • Support CATV interface for Video Service and remote control by Major OLT
  • Support SIP Protocol for VoIP Service
  • Integrated line testing compliant with GR-909 on POTS
  • Support 802.11n WIFI (2x2 MIMO) function
  • Support NAT, Firewall function.
  • Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
  • Support port mode of VLAN configuration
  • Support LAN IP and DHCP Server configuration
  • Support TR069 Remote Configuration and WEB Management
  • Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
  • Support IPv4/IPv6 dual stack
  • Support IGMP transparent/snooping/proxy
  • In compliant with IEEE802.3ah standard
  • Compatible with popular OLT(HW, ZTE, FiberHome...)

Specifications

Technical item ZC-512T 1GE+1FE+1VoIP+WIFI+CATV+WDM+AGC
PON

1 G/EPON port(EPON PX20+ and GPON Class B+)

Wavelength: Tx1310nm,Rx 1490nm

SC/UPC connector

Receiving saturation:≥-8dBm

Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
LAN 1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WiFi Feature

Compliant with IEEE802.11b/g/n

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps

2T2R,2 external antenna 5dBi

Support: multiple SSID,Channel:13

Modulation type: DSSS,CCK and OFDM

Encoding scheme: BPSK,QPSK,16QAM and 64QAM
Operating condition

Temperature: 0℃～+50℃

Humidity: 5%～90%(non-condensing)

Storing

condition

Temperature : -30℃～+75℃

Humidity :5%～90%(non-condensing)
Power supply DC 12V,1/1.5A
Power consumption ≤10W
Net weight <0.4kg
