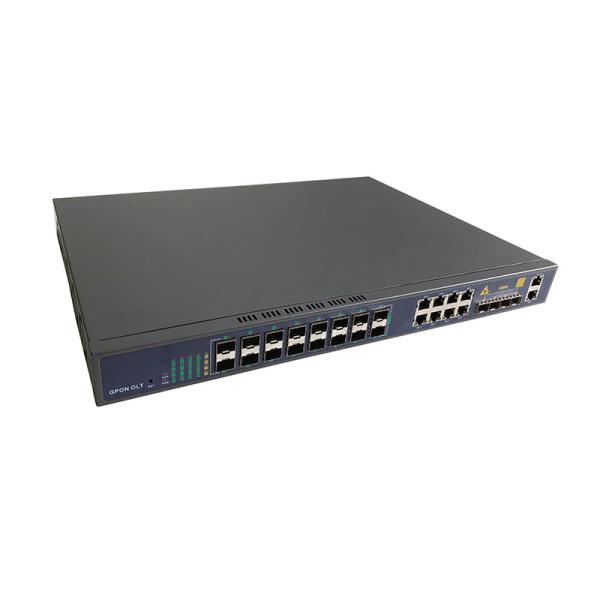

ZIKUN 16 PON EPON OLT Support 10G Uplink FTTH GPON OLT ZC-1016E
ZIKUN 16 PON EPON OLT Support 10G Uplink FTTH GPON OLT ZC-1016E
ZIKUN 16 PON EPON OLT Support 10G Uplink FTTH GPON OLT ZC-1016E
ZIKUN 16 PON EPON OLT Support 10G Uplink FTTH GPON OLT ZC-1016E
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-1016E
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
High Light :
EPON 16 Port OLT, Layer 3 16 Port OLT, V1600D16 Layer 3 OLT
Product Name :
Layer3 16 Ports EPON OLT
Dimension :
445mm×321mm×46mm (L×W×H)
Wavelength :
Tx1310nm, R x 1490nm
Power Supply :
AC 100~240 V, 50/60 Hz
Power Consumption :
≤85W
Description

ZIKUN EPON OLT Support 10G Uplink FTTH GPON OLT 16 PON ZC-1016E

Product Description


ZC-1016E series EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “TriplePlay”, VPN, IP Camera, Enterprise LAN and ICT applications.

There are three OLT model in this series, include ZC-1004E, ZC-1008Eand ZC-1016E.

ZC-1016E provides 4GE(copper) and 8SFP slots independent interface for uplink, and 16*EPON OLT ports for downstream. It can support 1024ONUs under 1:64 splitter ratio.


ZIKUN 16 PON EPON OLT Support 10G Uplink FTTH GPON OLT ZC-1016E

ZIKUN EPON OLT ZC-1016E
Small and Flexible | High Performance | Easy to Deploy

ZIKUN 16 PON EPON OLT Support 10G Uplink FTTH GPON OLT ZC-1016E

PON Port Specification (PX20++ Module)

Transmission Distance 20KM
EPON port speed Symmetrical 1.25Gbps
Wavelength TX 1490nm, RX 1310nm
Connector SC/UPC
Fiber Type 9/125μm SMF
TX Power +4.5~+9dBm
Rx Sensitivity -32dBm
Saturation Optical Power -8dBm

ONU Management

Profile Including ONU DBA, Service, VoIP, Alarm Profiles.
Auto learn ONU automatically discovery, register, online.
Auto configure All features can be automatically configured by profiles when ONU auto online—plug and play.
Auto upgrade The ONU firmware can be auto upgraded. Download ONU firmware to OLT from web/tftp.
Remote config The powerful private OAM protocol provides remote HGU configuration including WAN, WiFi, POTS, etc.

License Management

ONT limit Limit the number of ONU registration, 64-1024. When the number of ONU reach the max number permit, add new ONU to system will be refused.
Time limit Limit system used time, 31days. Equipment trial license, after 31days of running time, all ONUs be set offline.

Basic Parameters

ZC-1016E
Chassis Rack 1U 19Inch Standard Box
1000M Uplink Port QTY 12
Copper 8*10/100/1000M auto-negotiation
SFP 4
SFP + 4
EPON Port QTY 16
Physical Interface SFP Slots
Connector Type PX20++
Max splitting ratio 1:64
Dimension (L*W*H) 445mm×321mm×46mm
Weight kg
Power Supply AC 100~240 V, 50/60 Hz
DC Power Supply DC: -48V
Power Consumption 85W
Operating Environment Working Temperature 0~+50°C
Storage Temperature -40~+85°C
Relative Humidity 5~90% (non-conditioning)
