GEPON GPON 4 Port OLT Fiber Network FTTH 20KM Transmission Distance ZC-P1004G
GEPON GPON 4 Port OLT Fiber Network FTTH 20KM Transmission Distance ZC-P1004G
GEPON GPON 4 Port OLT Fiber Network FTTH 20KM Transmission Distance ZC-P1004G
GEPON GPON 4 Port OLT Fiber Network FTTH 20KM Transmission Distance ZC-P1004G
GEPON GPON 4 Port OLT Fiber Network FTTH 20KM Transmission Distance ZC-P1004G
GEPON GPON 4 Port OLT Fiber Network FTTH 20KM Transmission Distance ZC-P1004G
Specifications
Brand Name :
ZIKUN
Model Number :
ZC- P1004G
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,
Delivery Time :
5-15 work days
PON standard :
GPON ITU-T G.984.x
Wavelength :
Tx1310nm, Rx 1490nm
Management Ports :
1*10/ 100BASE-T out-band port, 1*CONSOLE port
Operating temp :
-5 C~ +55C
toring temp :
-40C ~ +85C
Uplink :
2*copper Ethernet ports 10/100/1000M auto-negotiation，2GE(SFP)*10GE(SFP+) auto-detection
Dimension :
442mm×212mm×44mm (L×W×H)
Power consumption :
≤25W
Description
ZIKUN GPON 4 PORT GEPON OLT Fiber Network 20KM FTTH ZC-P1004G
Introduction

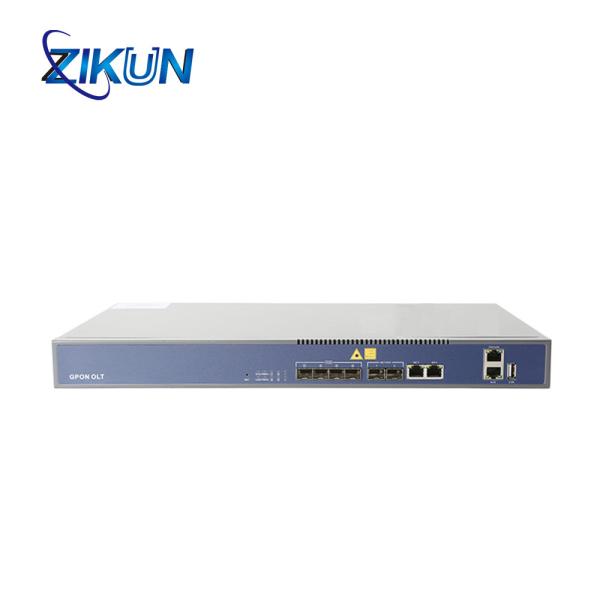

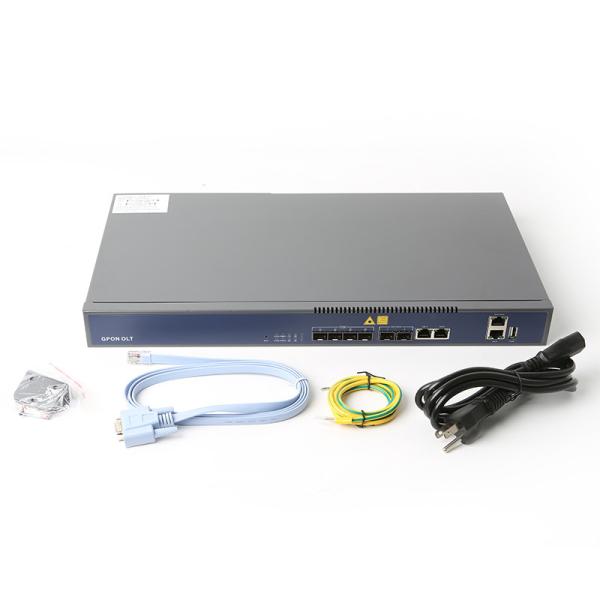

The ZC-P1004G design chassis OLT device provides 4 GPON ports, 2 * GE+2 * GE (SFP)/10GE (SFP+) uplink ports.Its height is 1U, easy to install and save space. Each PON supports up to 1:128 spectral ratio, and the whole machine can support 512 ONU terminals under full configuration.

ZC-P1004G uses advanced technology to support SLA and DBA to maintain the QoS characteristics of Ethernet.For commercial and network digital management, we provide a comprehensive, smart, strong, advanced and professional solution.

GEPON GPON 4 Port OLT Fiber Network FTTH 20KM Transmission Distance ZC-P1004G

Features

* 1U 19 inch standard chassis GPON OLT with 4PON ports

* Compliant with ITU-T G984/G.988 standards

* Friendly EMS/Web/Telnet/CLI management

* Support other brands GPON and XPON ONUs

* Support 4096 VLANs, port VLAN and protocol VLAN;

* Support storm control based on port;

* Support port isolation,port rate limitation;

* Support static LACP;QoS based on port, VID, TOS and MAC address;

* Access control list;* Support IGMP snooping, 256 IP Multicast Groups,DHCP snooping

* Support data encryption, multi-cast, port VLAN, separation, RSTP, etc

* Support power-off alarm function, easy for link problem detection;

* Support broadcasting storm resistance function;

* Support port isolation between different ports;

Software Feature

Item ZC-1004G
Chassis Rack 1U 19 Inch Standard Box

GE/10GE

Uplink Port

 QTY 4
RJ45(GE) 2
SFP(GE)/SFP+(10GE) 2
GPON Port QTY 4
Physical Interface SFP Slots
Connector Type Class C+
Max splitting ratio 1:128
Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port,

1*USB(Type-C)

PON Port Specification

(Class C+ module)

 Transmission Distance 20KM
GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps
Wavelength TX 1490nm, RX 1310nm
Connector SC/UPC
Fiber Type 9/125μm SMF
TX Power +3~+7dBm
Rx Sensitivity -30dBm
Saturation Optical Power -12dBm
Dimension(L*W*H)(mm*mm*mm) 442mm×212mm×44mm
Weight(kg) 2.8
Power Supply 220VAC AC:90~264V, 47/63Hz
DC Power Supply(DC:48V) DC:16~48V
Double Power Module Hot Backup √
Max Power Consumption(W) 35
Operating Environment Working Temperature -0~+55℃
Storage Temperature -40~+85℃
Relative Humidity 5~90%(non-conditioning)
