ZIKUN 8 Ports GPON OLT 8 GPON 10G/1GE SFP 4GE RJ45 8 Pon EPON OLT

Product Description

ZC-P1008E is a small-capacity cassette EPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom EPON, with super EPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode.

ZC-1008E provides 8GE(copper) and 8SFP slots independent interface for uplink, and 8*EPON OLT ports for downstream. It can support 128 ONUs under 1:64 splitter ratio. The height is only 1U for easy installation and space saving. ZC-P1008E is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.

There are three models in this series, ZC-1004E, ZC-1008E andZC-1016E.

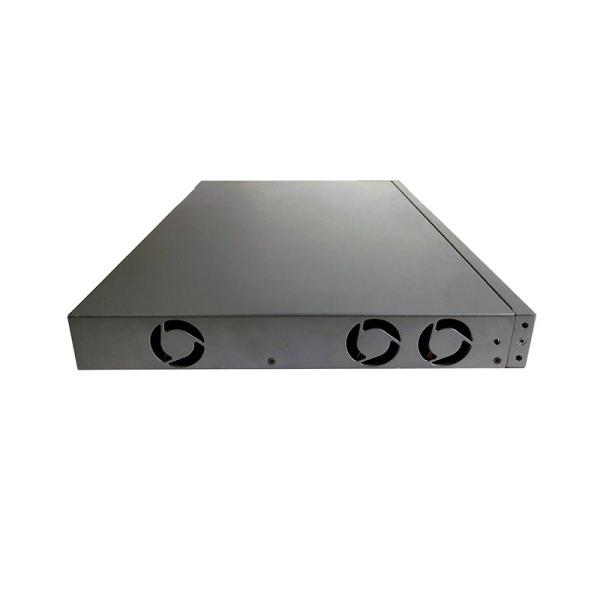

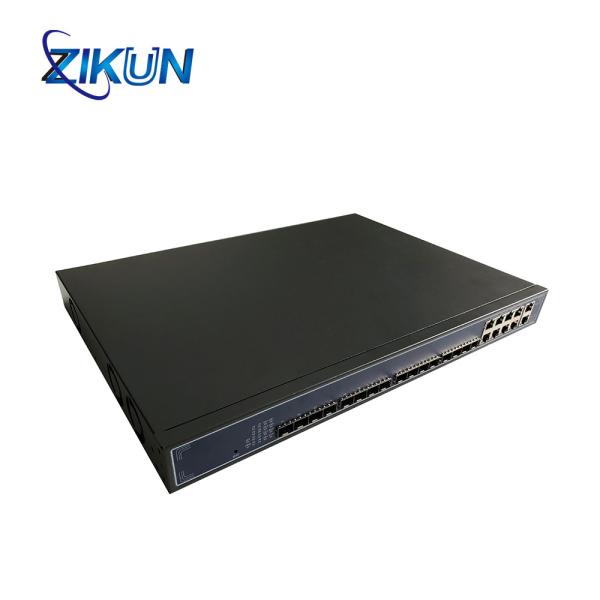

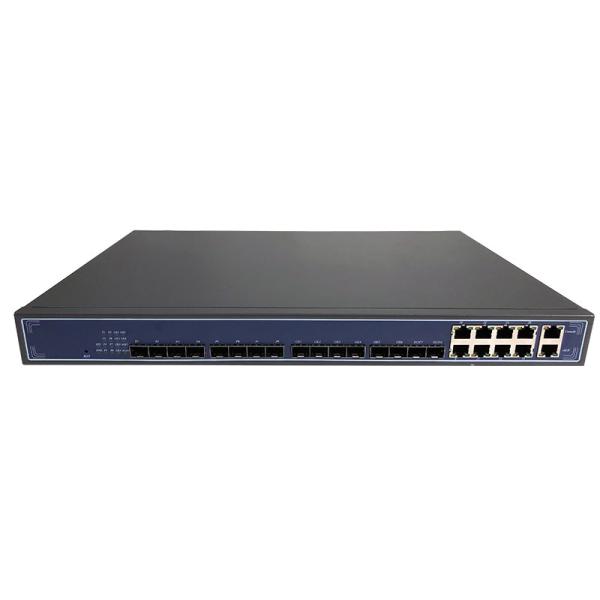

ZIKUN EPON OLT ZC-P1008E
Small and Flexible | High Performance | Easy to DeployZC-1008E

LED Information

Physical Specifications

GPON Functions:

• Support Dynamic Bandwidth Allocation (DBA);
• Support ONU auto-discovery/link detection/remote upgrade of software;
• Support VLAN division and user separation to avoid broadcast storm;
• Support various LLID configuration and single LLID configuration;
• Support port-based rate limitation and bandwidth control;
• In compliant with IEEE802.3ah standard;
• Up to 20KM transmission Distance;
• Support data encryption, multi-cast, port VLAN, separation, RSTP, etc;
• Different user and different service could provide different QoS by means of different LLID channels;
• Support power-off alarm function, easy for link problem detection;
• Support broadcasting storm resistance function;
• Support port isolation between different ports;
• Support ACL and SNMP to configure data packet filter flexibly;
• Specialized design for system breakdown prevention to maintain stable system;
• Support dynamic distance calculation on EMS online;

Order Information
