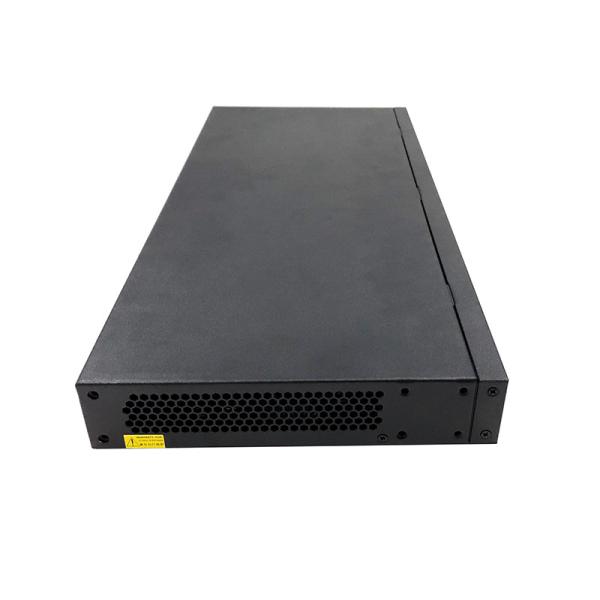

FTTx Optical Fiber GPON OLT Network Device 4 PORT 10G 4 SFP Slots
FTTx Optical Fiber GPON OLT Network Device 4 PORT 10G 4 SFP Slots
FTTx Optical Fiber GPON OLT Network Device 4 PORT 10G 4 SFP Slots
FTTx Optical Fiber GPON OLT Network Device 4 PORT 10G 4 SFP Slots
FTTx Optical Fiber GPON OLT Network Device 4 PORT 10G 4 SFP Slots
FTTx Optical Fiber GPON OLT Network Device 4 PORT 10G 4 SFP Slots
FTTx Optical Fiber GPON OLT Network Device 4 PORT 10G 4 SFP Slots
FTTx Optical Fiber GPON OLT Network Device 4 PORT 10G 4 SFP Slots
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-P1004E
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,
Delivery Time :
5-15 work days
PON standard :
GPON ITU-T G.984.x
Wavelength :
Tx1310nm, Rx 1490nm
Management Ports :
1*10/ 100BASE-T out-band port, 1*CONSOLE port
Operating temp :
-5 C~ +55C
toring temp :
-40C ~ +85C
Uplink :
2*copper Ethernet ports 10/100/1000M auto-negotiation，2GE(SFP)*10GE(SFP+) auto-detection
Dimension :
442mm×212mm×44mm (L×W×H)
Power consumption :
≤25W
Description
FTTx Optical Fiber GPON OLT Network ZIKUN 4 PORT OLT 10G 4 SFP Slots
Introduction
ZC-1004E EPON OLT provides 4 EPON ports, 2GE copper RJ45 Ethernet ports and 2*GE(SFP)/10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.
FTTx Optical Fiber GPON OLT Network Device 4 PORT 10G 4 SFP Slots

Software Feature

Item ZC-1004E
Chassis Rack 1U 19 Inch Standard Box

GE/10GE

Uplink Port

 QTY 4
RJ45(GE) 2
SFP(GE)/SFP+(10GE) 2
GPON Port QTY 4
Physical Interface SFP Slots
Connector Type Class C+
Max splitting ratio 1:128
Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port,

1*USB(Type-C)

PON Port Specification

(Class C+ module)

 Transmission Distance 20KM
GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps
Wavelength TX 1490nm, RX 1310nm
Connector SC/UPC
Fiber Type 9/125μm SMF
TX Power +3~+7dBm
Rx Sensitivity -30dBm
Saturation Optical Power -12dBm
Dimension(L*W*H)(mm*mm*mm) 442mm×212mm×44mm
Weight(kg) 2.8
Power Supply 220VAC AC:90~264V, 47/63Hz
DC Power Supply(DC:48V) DC:16~48V
Double Power Module Hot Backup √
Max Power Consumption(W) 35
Operating Environment Working Temperature -0~+55℃
Storage Temperature -40~+85℃
Relative Humidity 5~90%(non-conditioning)

GPON information

GPON Function
  • Tcont DBA;
  • Gemport traffic;
  • In compliant with ITUT984.x standard;
  • Up to 20KM transmission Distance;
  • Support data encryption, multi-cast, port VLAN, separation, RSTP, etc;
  • Support ONT auto-discovery/link detection/remote upgrade of software;
  • Support VLAN division and user separation to avoid broadcast storm;
  • Support power-off alarm function, easy for link problem detection;
  • Support broadcasting storm resistance function;
  • Support port isolation between different ports;
  • Support ACL and SNMP to configure data packet filter flexibly;
  • Specialized design for system breakdown prevention to maintain stable system;
  • Support RSTP,IGMP Proxy;
