8 PON PORTS GPON EPON OLT Fiber Network Max Distance 20KM FTTH Solution
8 PON PORTS GPON EPON OLT Fiber Network Max Distance 20KM FTTH Solution
8 PON PORTS GPON EPON OLT Fiber Network Max Distance 20KM FTTH Solution
8 PON PORTS GPON EPON OLT Fiber Network Max Distance 20KM FTTH Solution
8 PON PORTS GPON EPON OLT Fiber Network Max Distance 20KM FTTH Solution
8 PON PORTS GPON EPON OLT Fiber Network Max Distance 20KM FTTH Solution
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-1008G
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Place of Origin :
China
Type :
GPON OLT
Management Ports :
1*10/ 100BASE-T out-band port, 1*CONSOLE port
Dimension :
445mm×321mm×46mm (L×W×H)
Pon port :
8 GPON ports
Distance :
20km
Description
ZIKUN 8 PON PORTS GPON EPON OLT Max Distance 20KM Fiber FTTH Solution
Overview

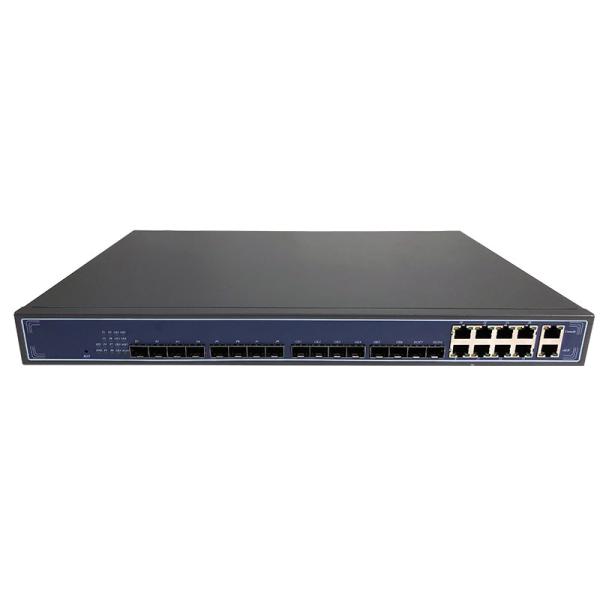

ZC-1008G GPON OLT provides 8 GPON ports, 8GE copper RJ45 Ethernet ports , 6 SFP(GE) and 2*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.

ZC-1008G OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.Independent 1U chassis equipment with 8 PON ports, each port supports up to 128 ONUs, the whole device supports up to 1024 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network.

8 PON PORTS GPON EPON OLT Fiber Network Max Distance 20KM FTTH Solution
Technical Specifications

Parameter Specifications
PON standard GPON ITU-T G.984.x

PON interface

 16*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30d Bm(Saturation Optical - 12d Bm). Power,Transmitting optical power: +3 ~ +7d BmTransmission distance: 20KM. Max splitting ratio1:128
Upstream 2.488G ,Downstream 1.244G
Wavelength Tx1310nm, Rx 1490nm

Uplink

 8*copper Ethernet ports 10/100/1000M auto-negotiation
6*GE(SFP)
2*10GE(SFP+)
Layer 3 Support static route, RIP v1/v2, OSFP v2, ARP proxy
Management Ports 1*10/ 100BASE-T out-band port, 1*CONSOLE port
Management Mode SNMP, Telnet, CLI, WEB
VLAN Tag / Un-tag,VLAN transmission,QinQ
Operating condition Operating temp: -5 C~ +55C
Storing condition Storing temp: -40C ~ +85C
Humidity 5~90%(non-condensing)
Power consumption ≤45W
Dimension 445mm×321mm×46mm (L×W×H)
Net weight 4.55Kg
