Specifications
Brand Name :
ZIKUN
Model Number :
ZC-1008G
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Place of Origin :
China
Type :
GPON OLT
Management Ports :
1*10/ 100BASE-T out-band port, 1*CONSOLE port
Dimension :
445mm×321mm×46mm (L×W×H)
Pon port :
8 GPON ports
Distance :
20km
Description
ZIKUN 8 PON Port GPON OLT Device With 4RJ45 GE 2SFP GE 10GE


Overview

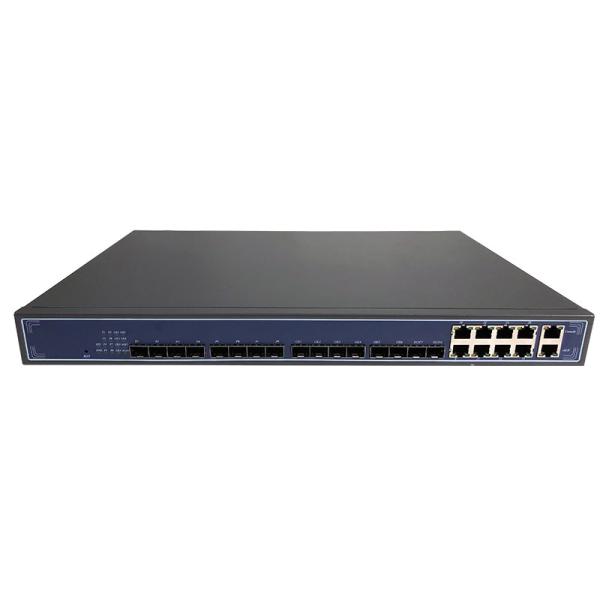

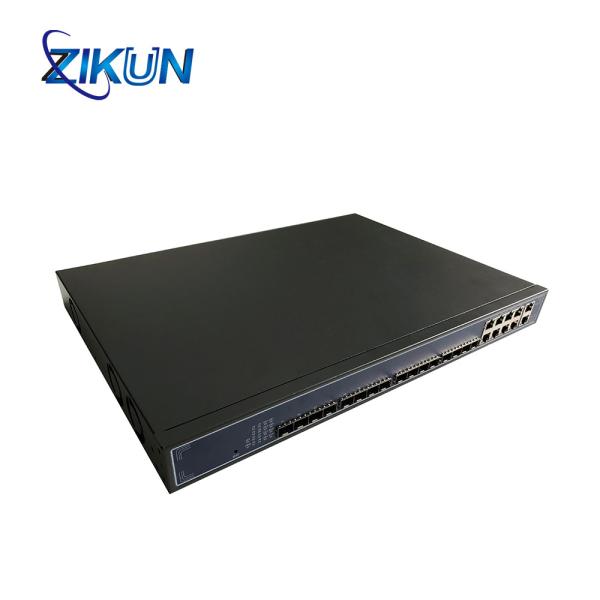

ZC-1008G GPON OLT provides 8 GPON ports, 8GE copper RJ45 Ethernet ports , 6 SFP(GE) and 2*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.

Independent 1U chassis equipment with 8 PON ports, each port supports up to 128 ONUs, the whole device supports up to 1024 ONUs. Small size and high density OLT, easy to install, convenient, flexible andeasy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” applications.

For other technical specifications, see the following table:

Product PON Interface Uplink Chipset
ZC-1008G 8*GPON Port 8×GE(RJ45)+6×GE(SFP)+2×10GE(SFP+)

BroadCom
8 PON 8 Port GPON OLT Device 20km Distance With 4RJ45 GE 2SFP GE 10GE

Software Feature

Item ZC-1008G
Chassis Rack 1U 19 Inch Standard Box

GE/10GE

Uplink Port

 QTY 8
RJ45(GE) 6
SFP(GE) 2
SFP+(10GE) 2
GPON Port QTY 8
Physical Interface SFP Slots
Connector Type Class C++
Max splitting ratio 1:128
Management Ports 1*10/100BASE-T out-band port, 1*CONSOLE port

PON Port Specification

(Class C++ module)

 Transmission Distance 20KM
GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps
Wavelength TX 1490nm, RX 1310nm
Connector SC/UPC
Fiber Type 9/125μm SMF
TX Power +4.5~+10dBm
Rx Sensitivity -30dBm
Saturation Optical Power -12dBm
Dimension(L*W*H)(mm*mm*mm) 445*321*43.6
Weight(kg) 4.55

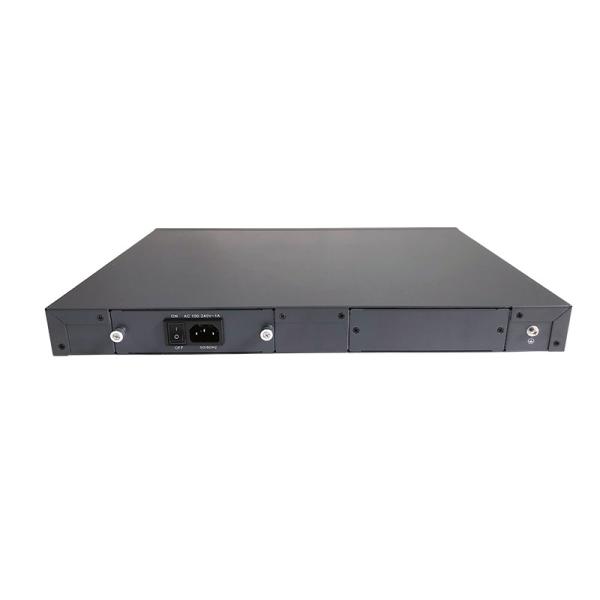

Power Supply 220VAC AC:100～240V, 47/63Hz
DC Power Supply(DC:-48V) √
Double Power Module Hot Backup √
Max Power Consumption(W) 45
Operating Environment Working Temperature -0~+55℃
Storage Temperature -40~+85℃
Relative Humidity 5~90%(non-conditioning)
