Specifications
Brand Name :
ZIKUN
Model Number :
ZC-P1008G
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Place of Origin :
China
Type :
GPON OLT
Management Ports :
1*10/ 100BASE-T out-band port, 1*CONSOLE port
Dimension :
445mm×321mm×46mm (L×W×H)
Pon port :
8 GPON ports
Distance :
20km
Description
ZIKUN ZC-P1008G Gpon Olt Device 8 PON Port With 8× RJ45 GE , 8× SFP GE , 2× SFP 10GE
Overview

ZC-P1008G GPON OLT provides 8 GPON ports, 8GE copper RJ45 Ethernet ports , 6 SFP(GE) and 2*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.

For other technical specifications, see the following table:

Product PON Interface Uplink
ZC-P1008G 8*GPON Port 8×GE(RJ45)+8×GE(SFP)+2×10GE(SFP+)

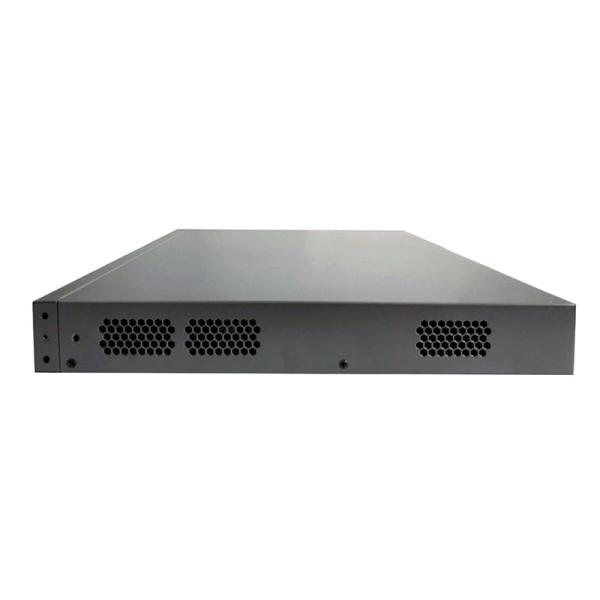

Product Appearance
8 PON 8 Port GPON OLT Device With 4RJ45 GE 2SFP GE 10GE

Technical Specifications

Parameter Specifications
PON standard GPON ITU-T G.984.x

PON interface

 16*GPON SFP Ports , Receiving sensitivity: ≤ -30d Bm(Saturation Optical - 12d Bm). Power,Transmitting optical power: +3 ~ +7d BmTransmission distance: 20KM. Max splitting ratio1:128
Upstream 2.488G ,Downstream 1.244G
Wavelength Tx1490nm, Rx 1310nm

Uplink

 8*copper Ethernet ports 10/100/1000M auto-negotiation
6*GE(SFP)
2*10GE(SFP+)
Layer 3 Support static route, RIP v1/v2, OSFP v2, ARP proxy
Management Ports 1*10/ 100BASE-T out-band port, 1*CONSOLE port
Management Mode SNMP, Telnet, CLI, WEB ,SSHv1/v2
Backplane 128Gbps
MAC table 16K
VLAN Tag / Un-tag,VLAN transmission,QinQ
Operating condition Operating temp: -5 C~ +55C
Storing condition Storing temp: -40C ~ +85C
Humidity 5~90%(non-condensing)
Power consumption AC100~240V, 47/63Hz(DC:-48V Option)
Power consumption ≤45W
Dimension 445mm×321mm×46mm (L×W×H)
Net weight 4.55Kg
